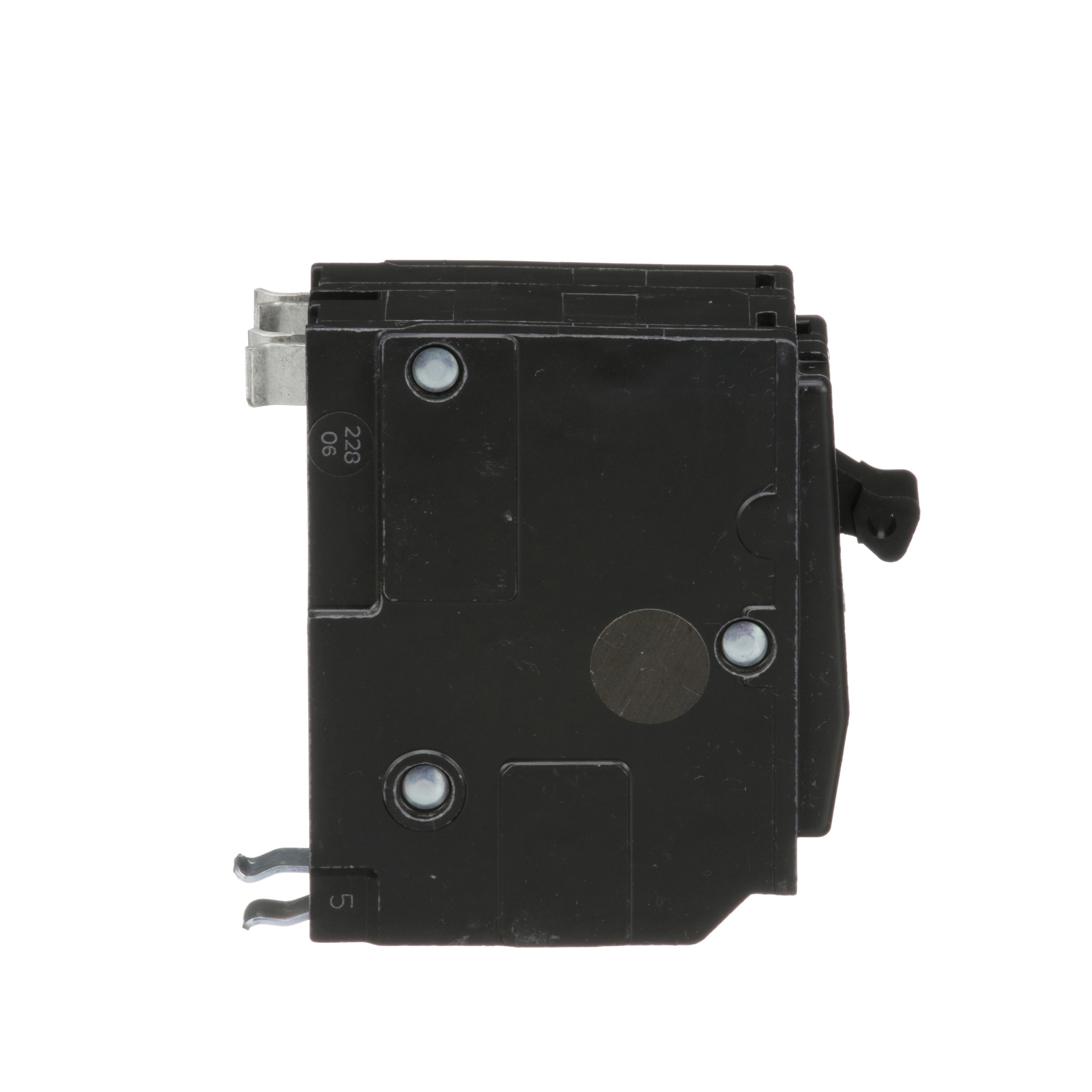

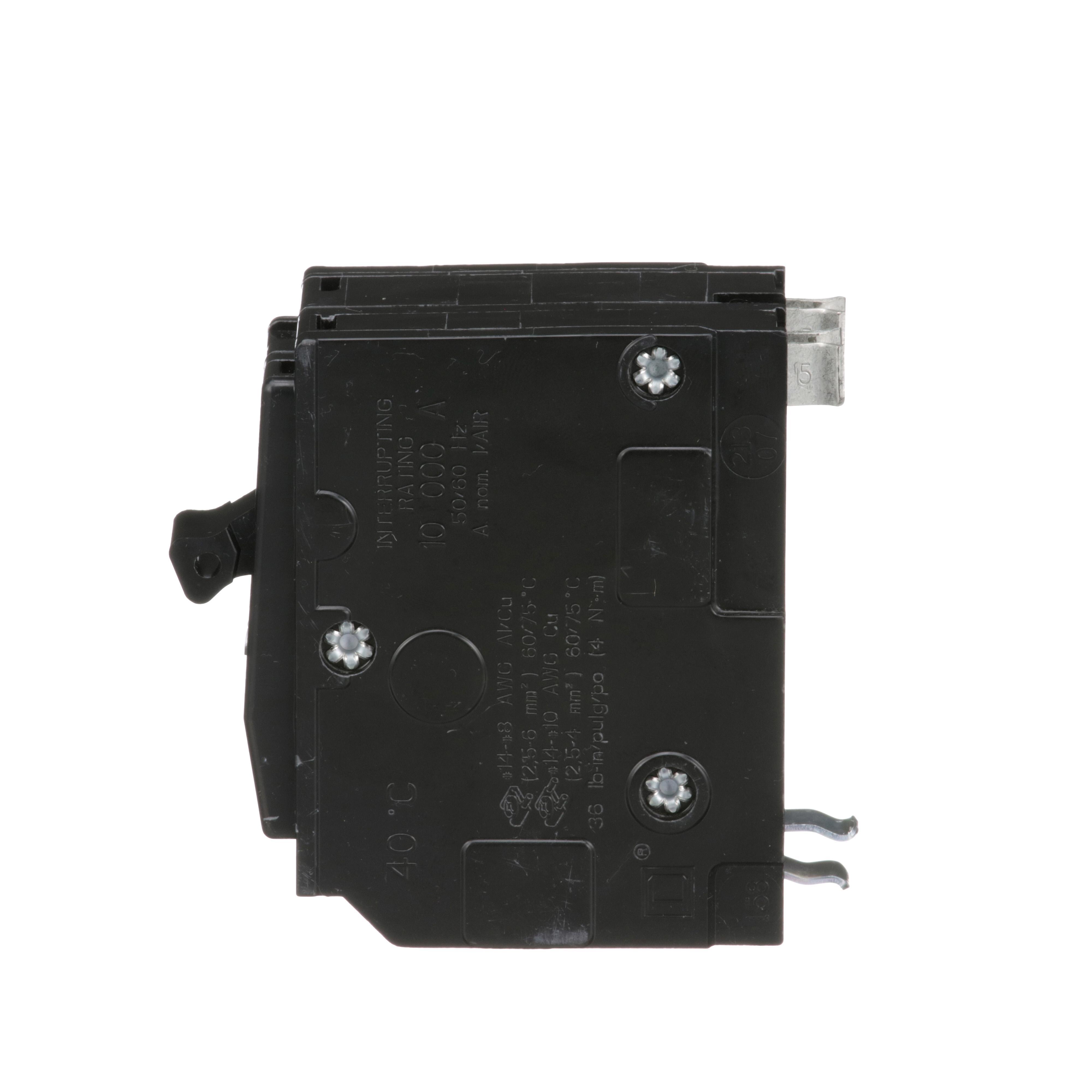

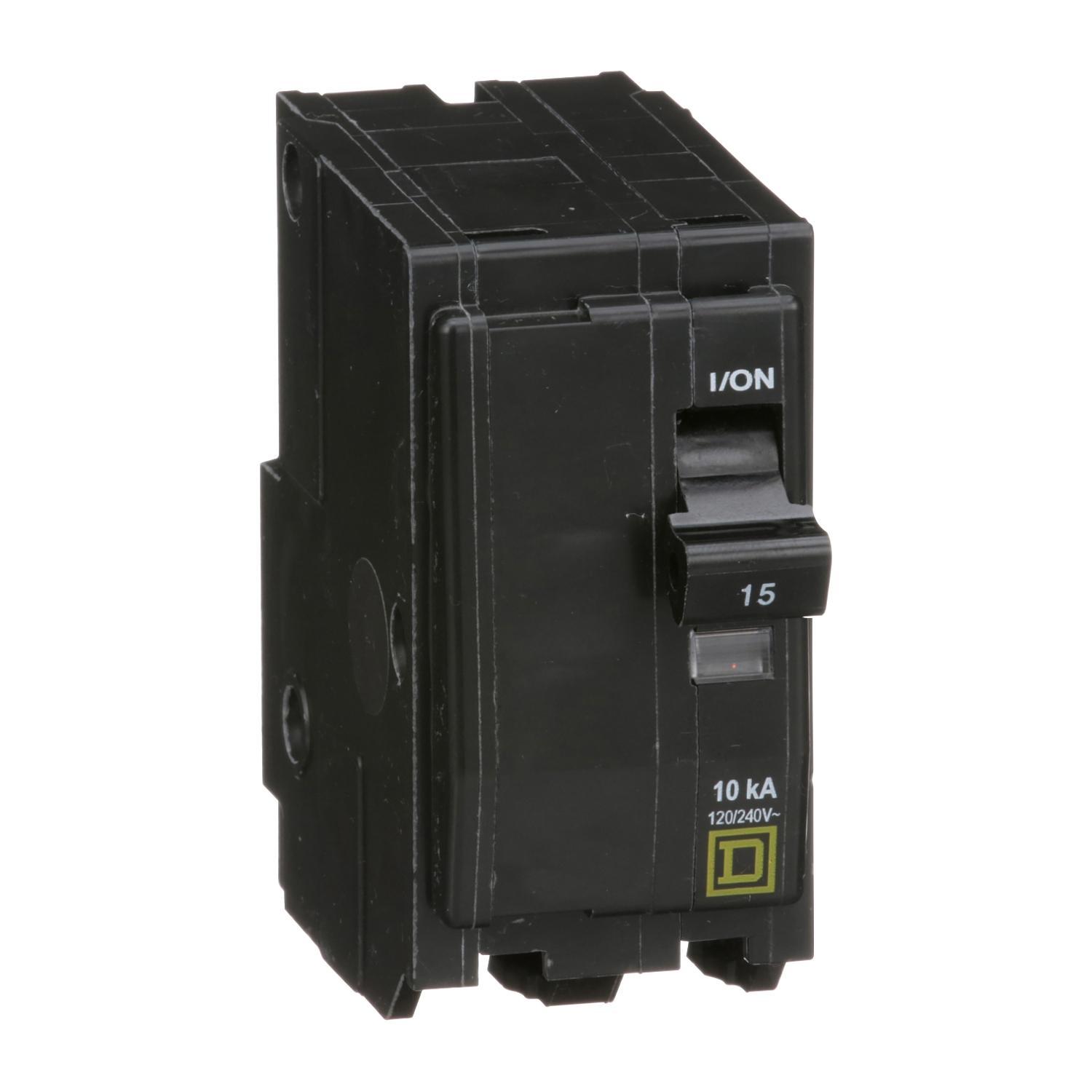

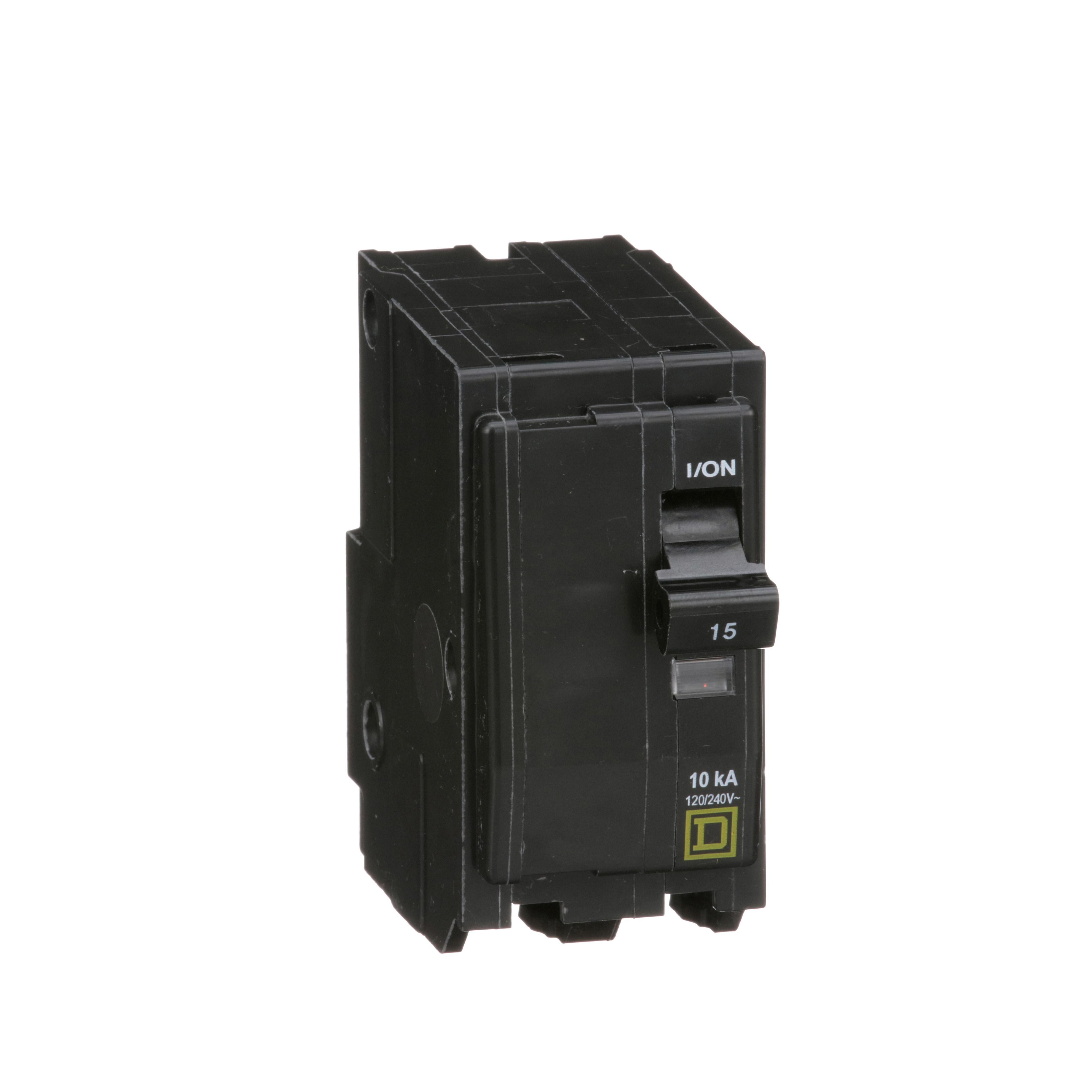

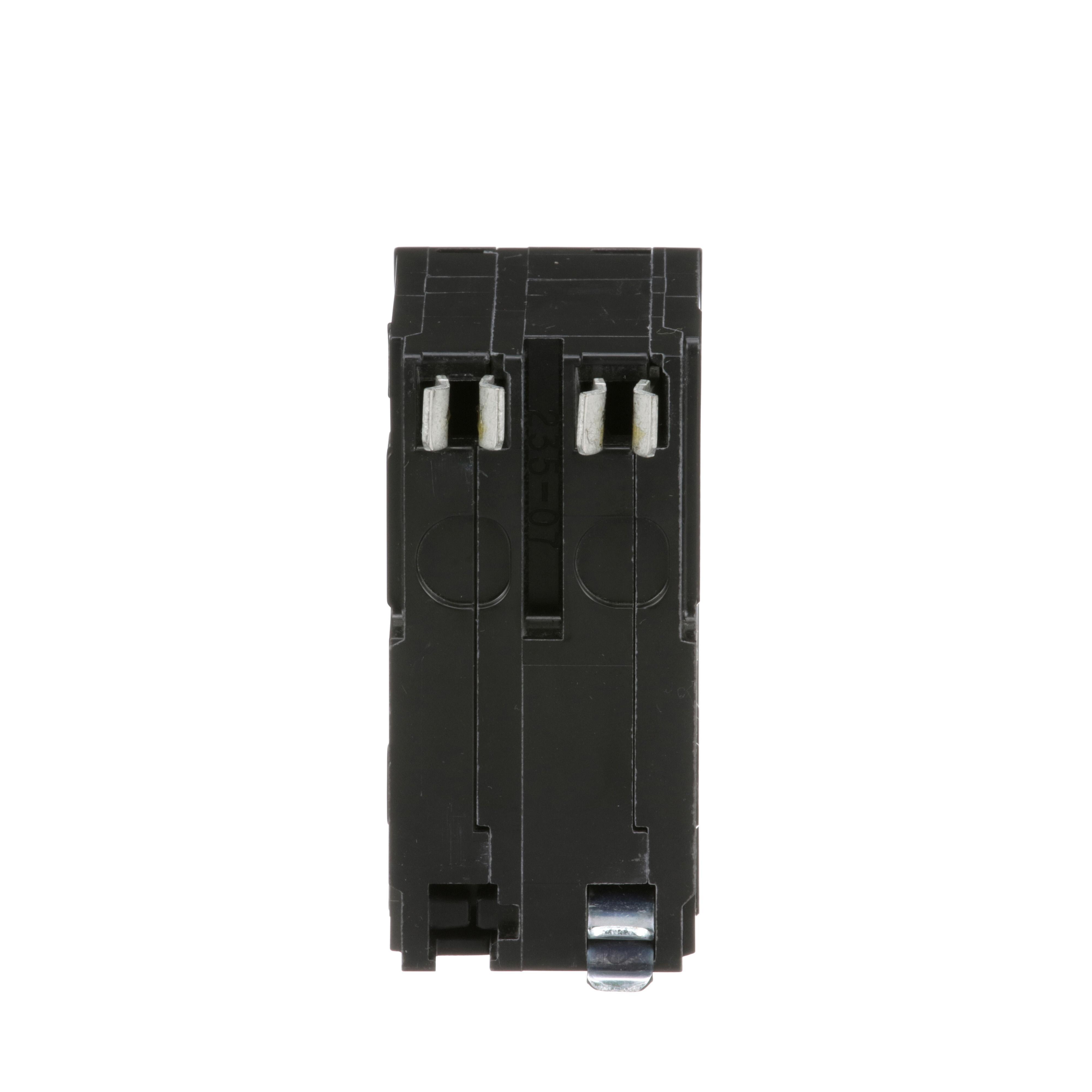

Square D™ QO215 Standard 2-Pole Miniature Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 15A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
-
BrandSquare D™
-
UPC785901400301
-
Manufacturer Part NumberQO215
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialFiberglass Filled Thermoset
-
FrameQO/100 A
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeStandard
-
Connection TypePressure Plate
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating15 A
-
Wire Size14 to 10 AWG, 14 to 8 AWG
-
Number of Poles2
-

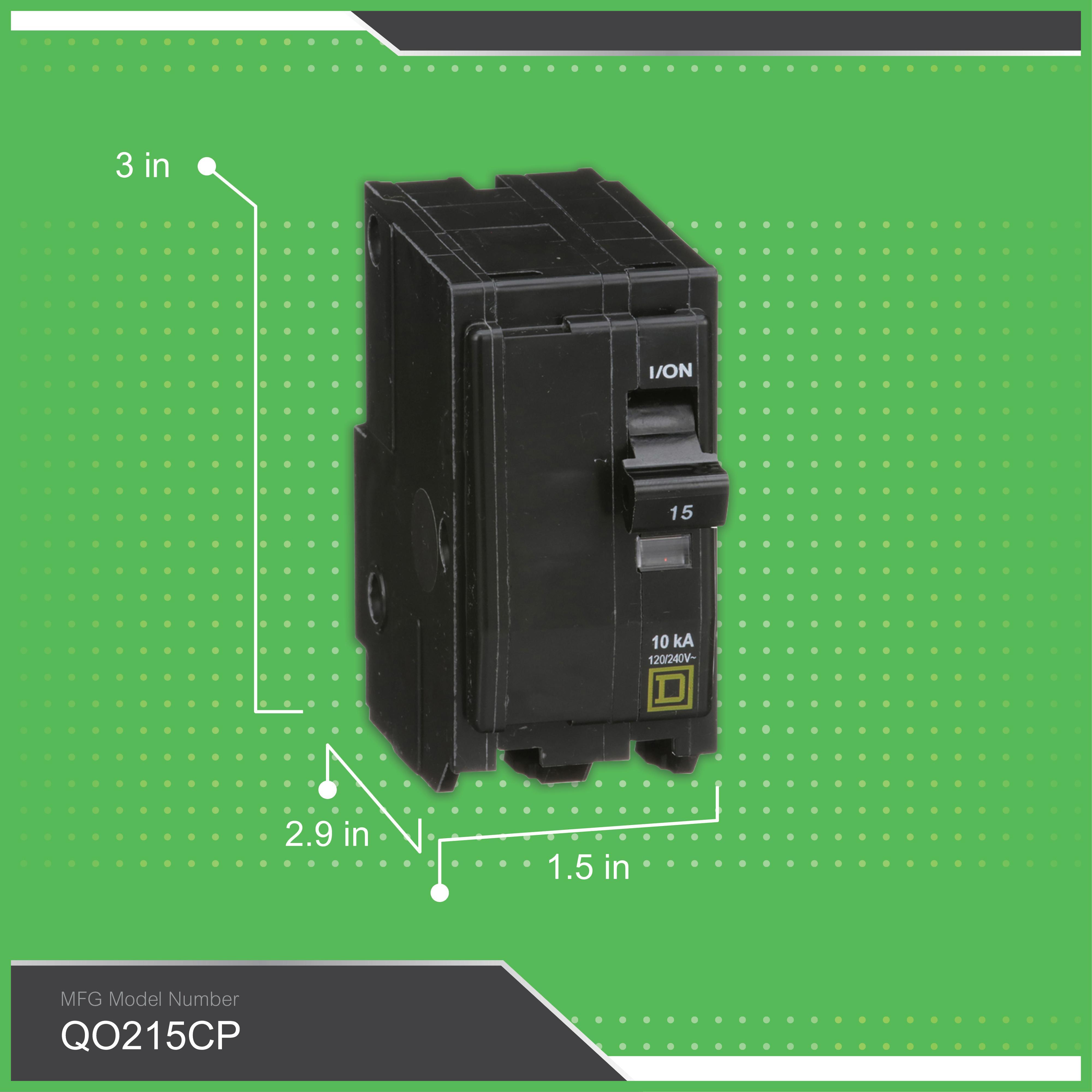

Dimensions3 in H x 1.5 in W x 2.91 in D
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA AB1
-
Phase1
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
- Common trip
- Standard
- Designed for superior safety, quality and reliability
- Engineered with the quality and craftsmanship that have made square D™ the preferred brand of electrician and homeowners
- First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection
- Saves space compact 3/4 in W design for small system footprint
- Faster installations fewer connections
- Frees gutter space no pigtails with the innovative plug-on neutral design
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1D254 |
-
Alternative Part Number8027746|13917723
-
UNSPSC39121603
-
IDEA Index ID8027746
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|HACR Rated|RoHS Compliant|UL Listed
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
