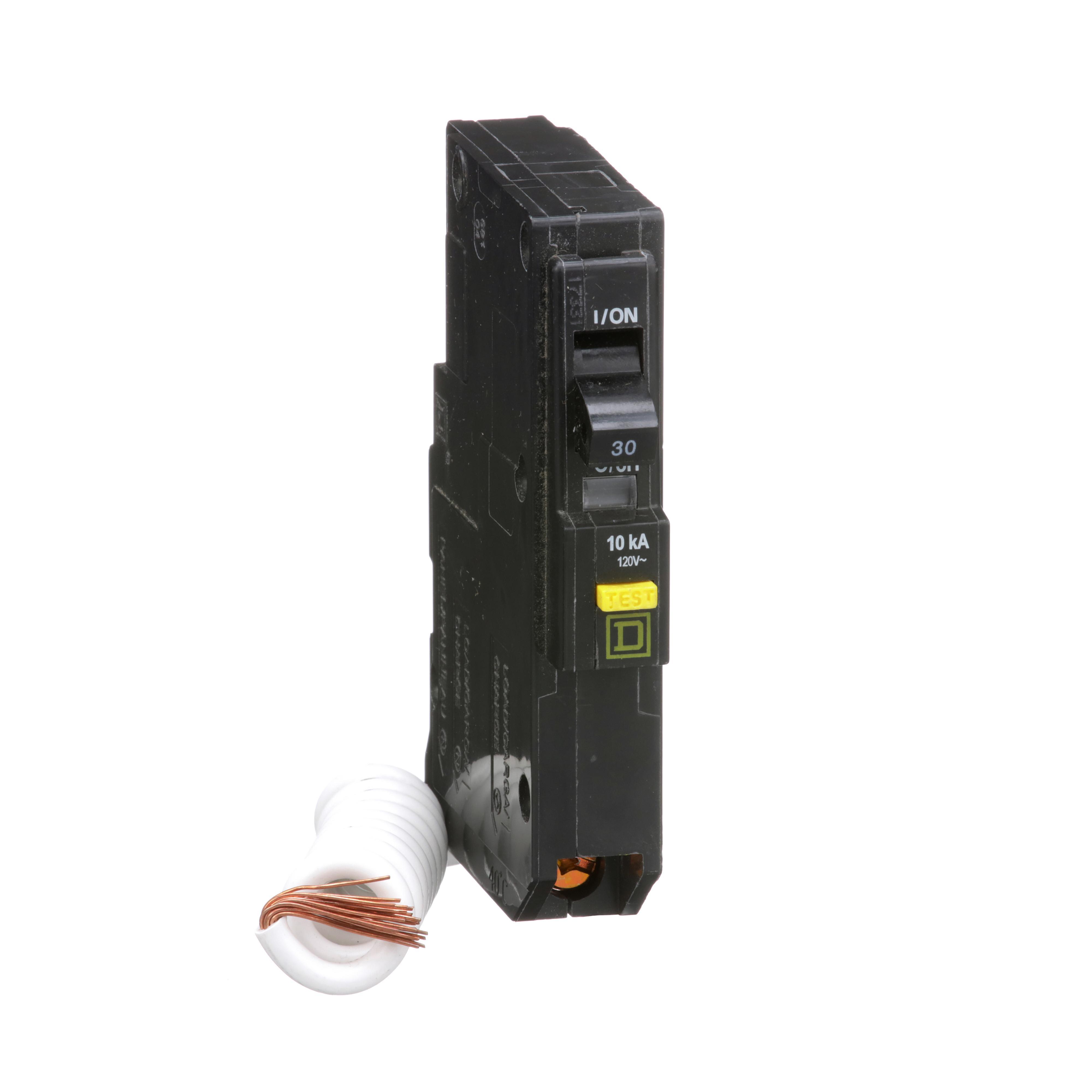

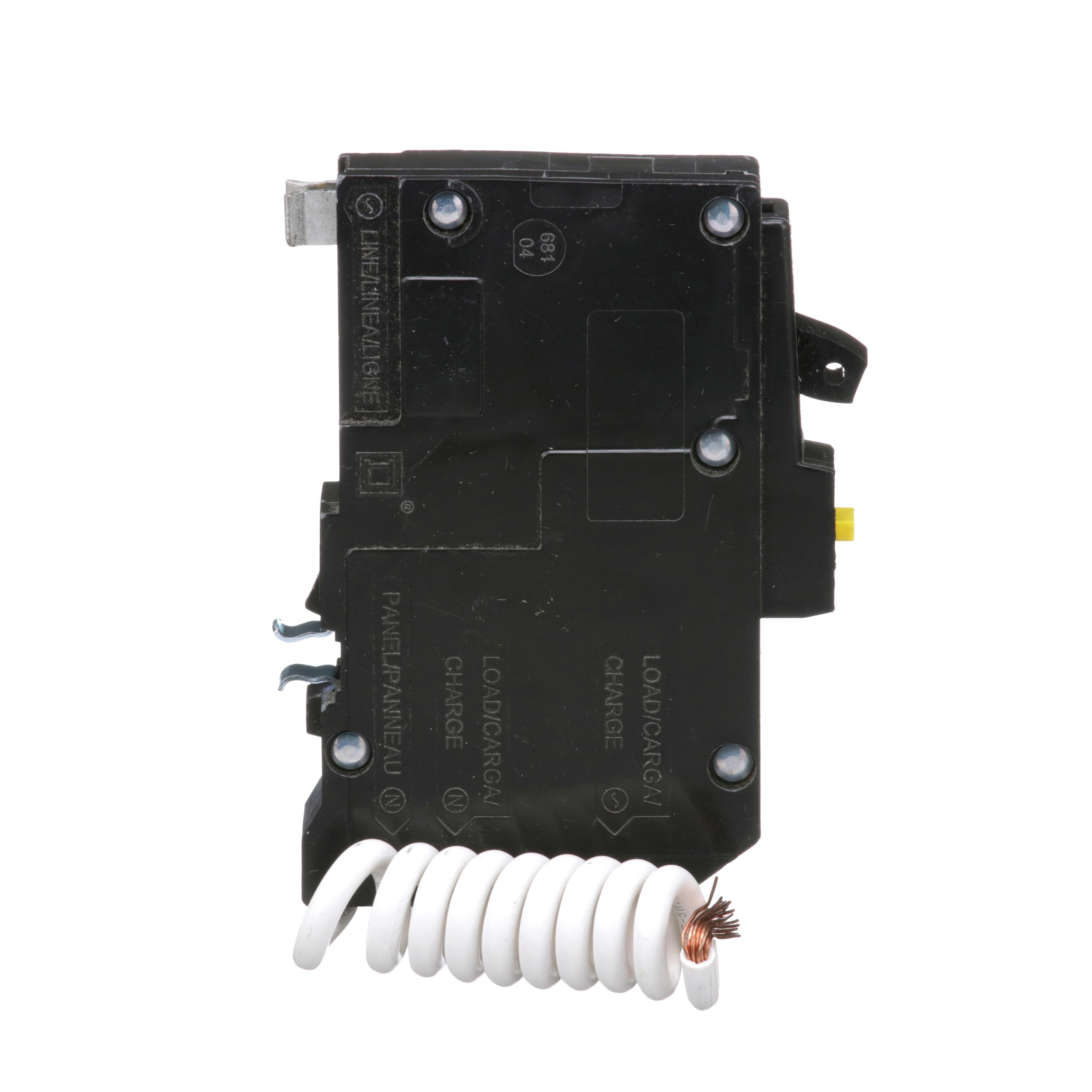

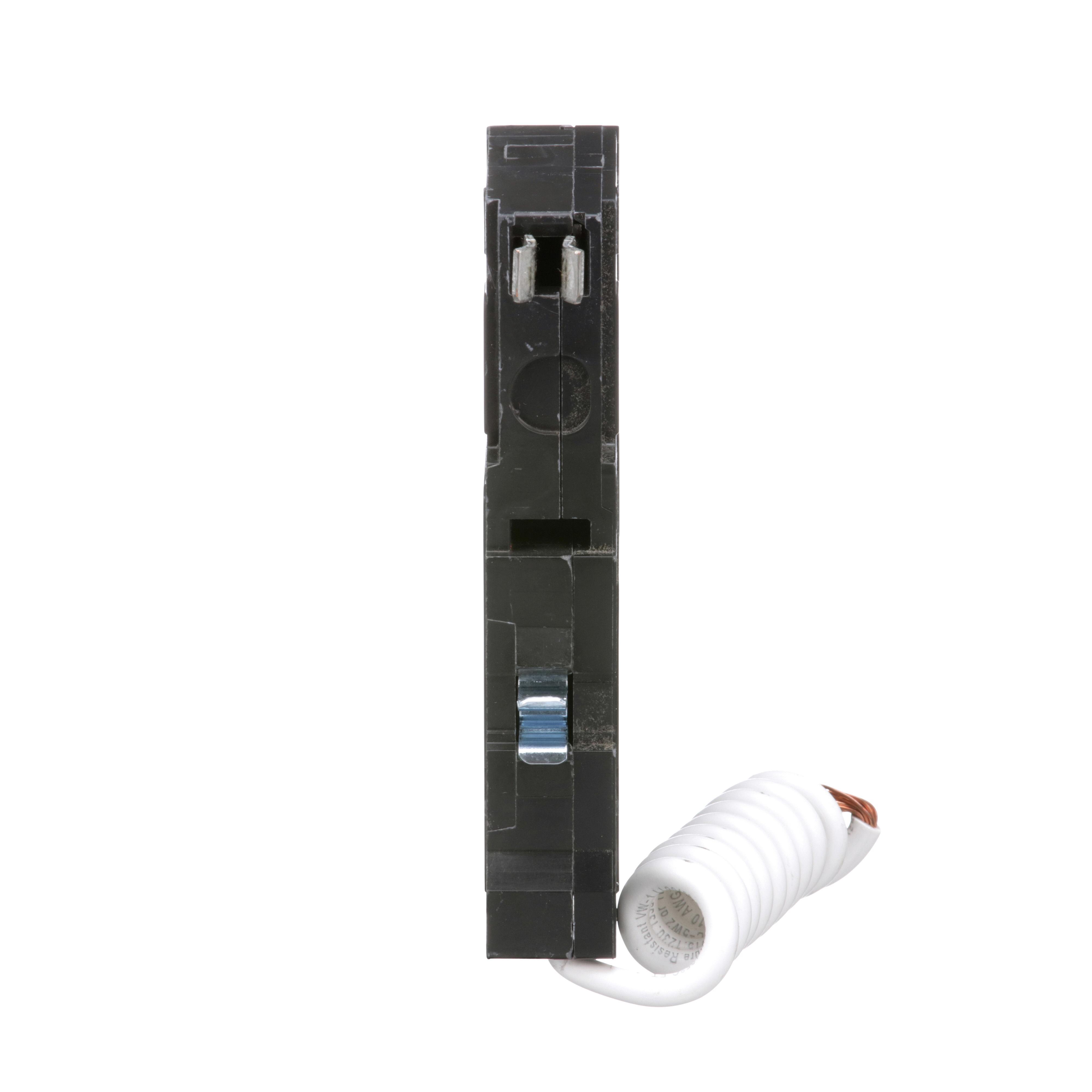

Square-D 30-AMP 1-POLE GROUND FAULT BREAKER SQU QO-1-30-GFI
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
-
BrandSquare Dâ„¢
-
UPC785901255093
-
Manufacturer Part NumberQO130GFI
-
CountryUSA|Canada
-
Temperature Rating40 deg C
-
FrameQO
-
Frequency Rating60 Hz
-
Trip TypeThermal Magnetic
-
TypeClass A Ground Fault
-
Connection TypePressure Plate
-
Mounting TypePlug-On
-
Voltage Rating120 V AC
-
Amperage Rating30 A
-
Wire Size12 to 8 AWG, 14 to 8 AWG
-
Number of Poles1
-
Dimensions4.12 in H x 0.75 in W x 2.91 in D
-
Interrupt Rating10 kA
-
Phase1
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
- 14 to 8 AWG Cu, 12 to 8 AWG Al wire
- Ground fault protecting class A 6 mA
- K-Curve trip
-
Alternative Part Number8106602
-
UNSPSC39121603
-
IDEA Index ID8106602
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|RoHS Compliant|UL 489|CSA 22.2 #144|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Full Engineering Drawing
