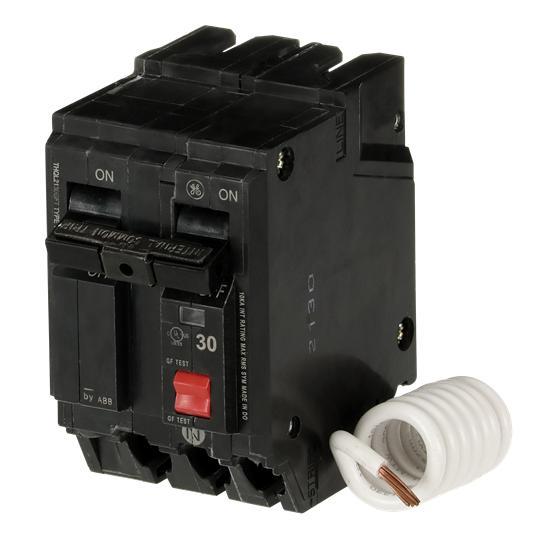

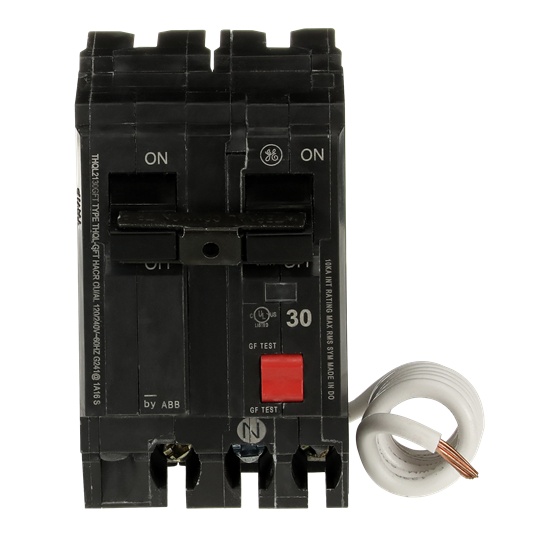

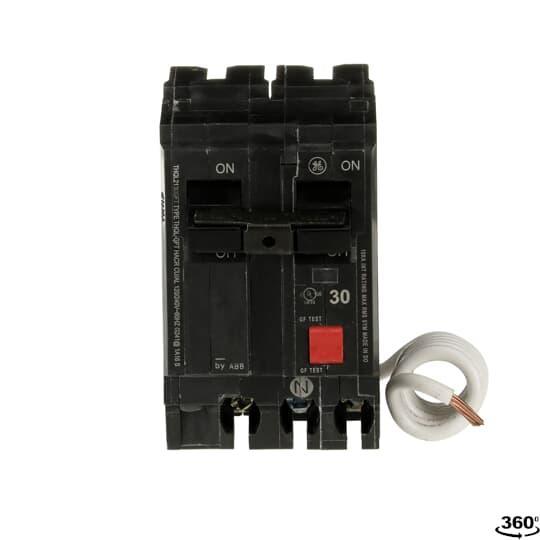

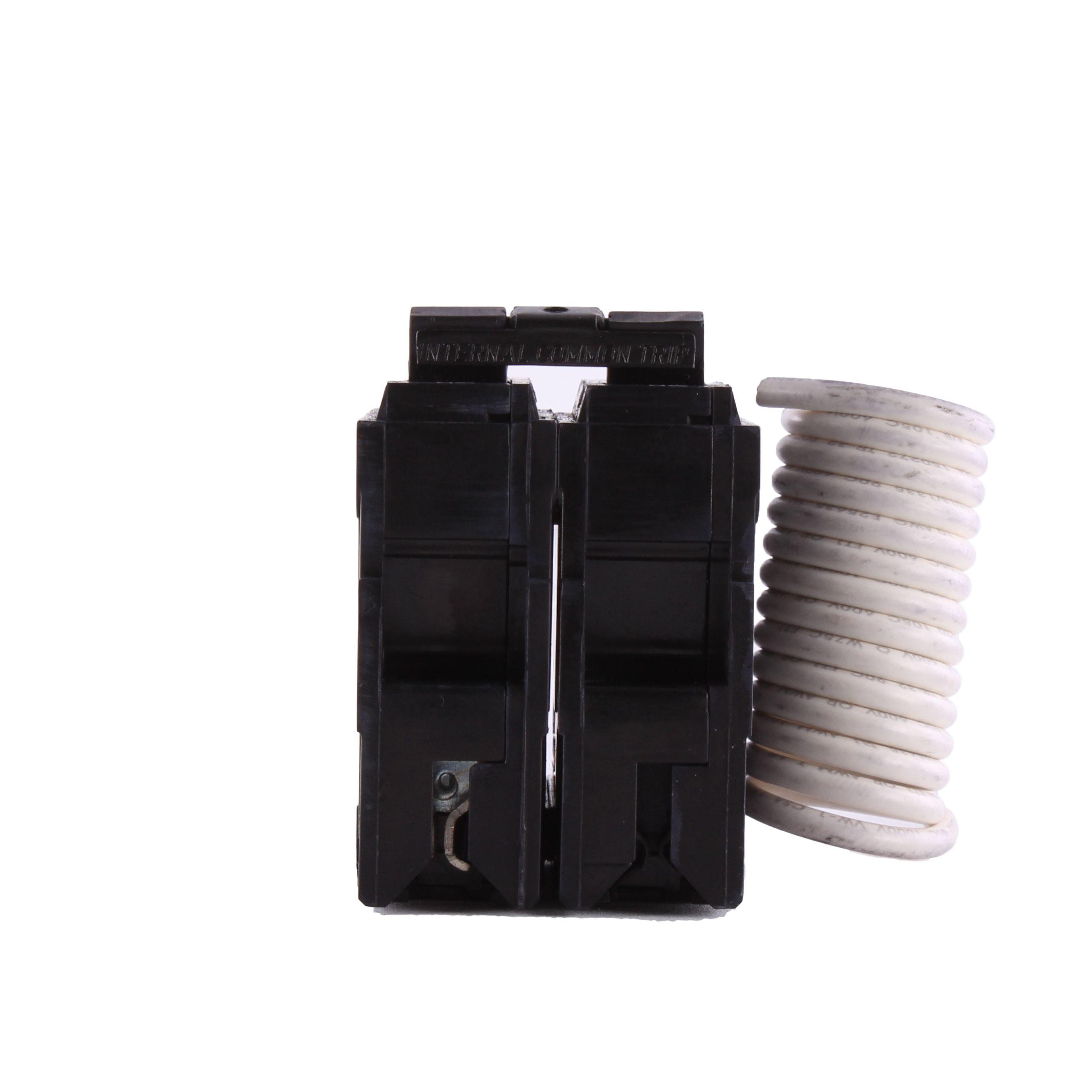

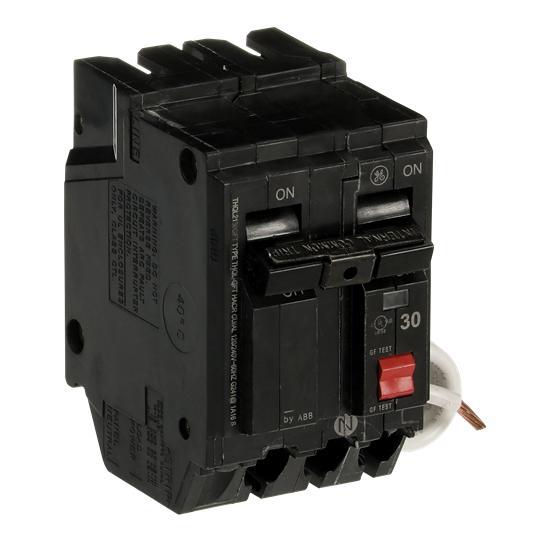

GE Q-Line® THQL2130GFT Type THQL Model 3 Self-Test Ground Fault Circuit Breaker, 120/240 V AC, 30 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Q-Line® circuit breakers are 1 in wide per pole, compact, thermal magnetic devices designed for residential and commercial applications. the QL breakers are plug-in versions of the Q-Line® used for connection to loadcenters and lighting panels. all Q-Line® circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line® breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.
-
BrandGE
-
UPC783164485363
-
Manufacturer Part NumberTHQL2130GFT
-
CountryUSA
-
FrameQ-Line
-
Trip Range5 mA
-
Trip TypeThermal Magnetic
-
TypeType THQL Model 3 Self-Test
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating30 A
-
Wire Size14 to 8 AWG Cu, 12 to 8 AWG Al
-
Number of Poles2
-
Dimensions3-9/32 in H x 2 in W x 2-3/8 in D
-
Interrupt Rating10 kA
-
Phase1
- The national electrical code requires GFCI protection of receptacles located outdoors, in bathrooms, garages and spa areas
- This applies not only to new construction, but also to existing homes
- When an electrical outlet is replaced in a location that requires ground fault protection, the new outlet must be GFCI protected, according to the NEC®
- The GFCI circuit interrupter provides protection against overloads, short circuits and ground faults
- It detects very low levels of electrical current leakage (ground faults) and acts quickly to shut off power, preventing serious shock
- Push button test validates the ground fault detection capability of the breaker
- Class A 5 mA ground fault circuit interrupter
- Quick-make, quick-break mechanism
- Suitable for reverse feed
- Standard continuous current rated
- Feeder plug-in circuit breakers
- 60 deg C/75 deg F conductor rating
- Box type terminals
- Multi-pole circuit breakers incorporate internal common trip
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 273Z69 |
-
Alternative Part Number13207519
-
UNSPSC39121601
-
IDEA Index ID13207519
-
Package DescriptionEACH
-
Standards/ApprovalsE51075
-
Specification Sheet
