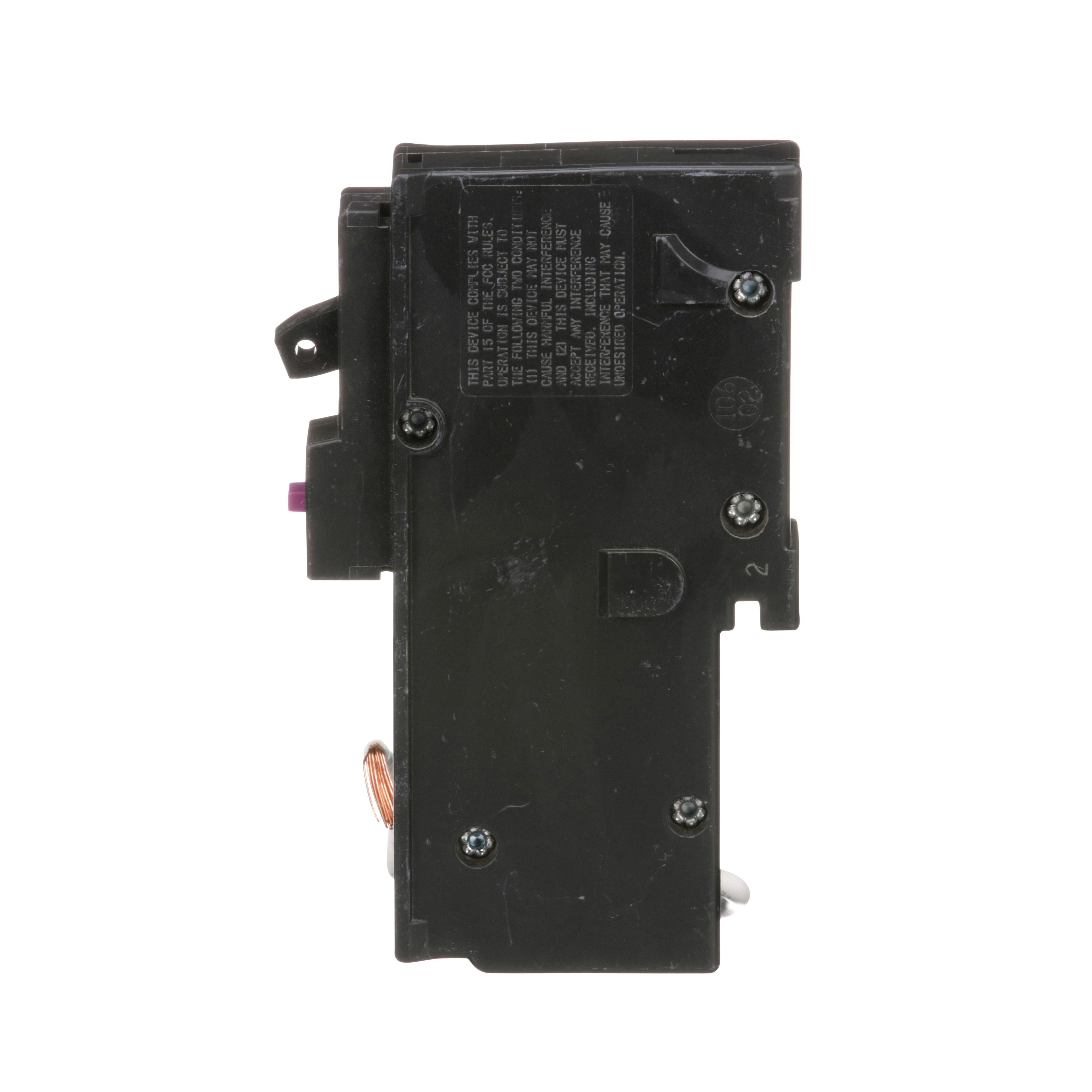

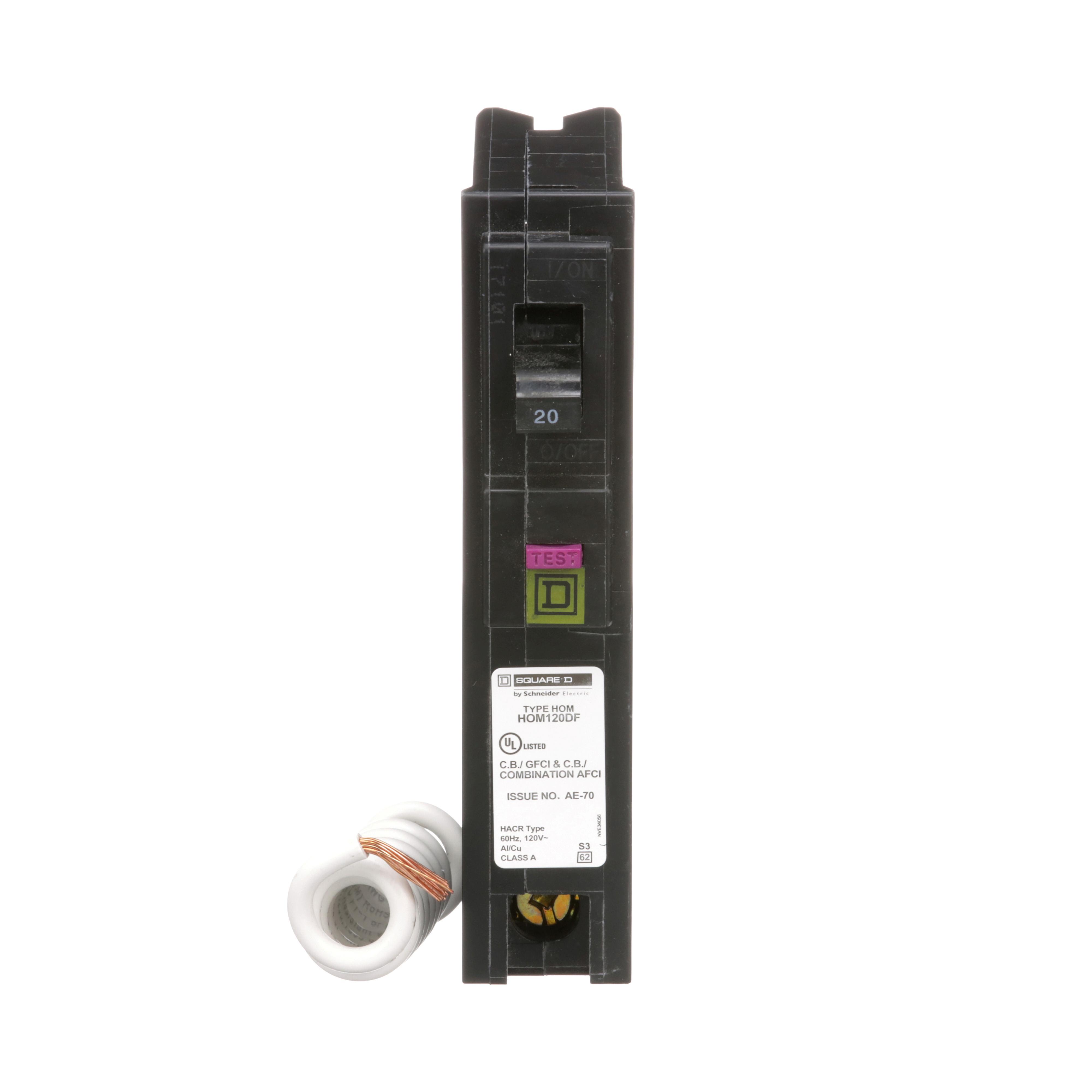

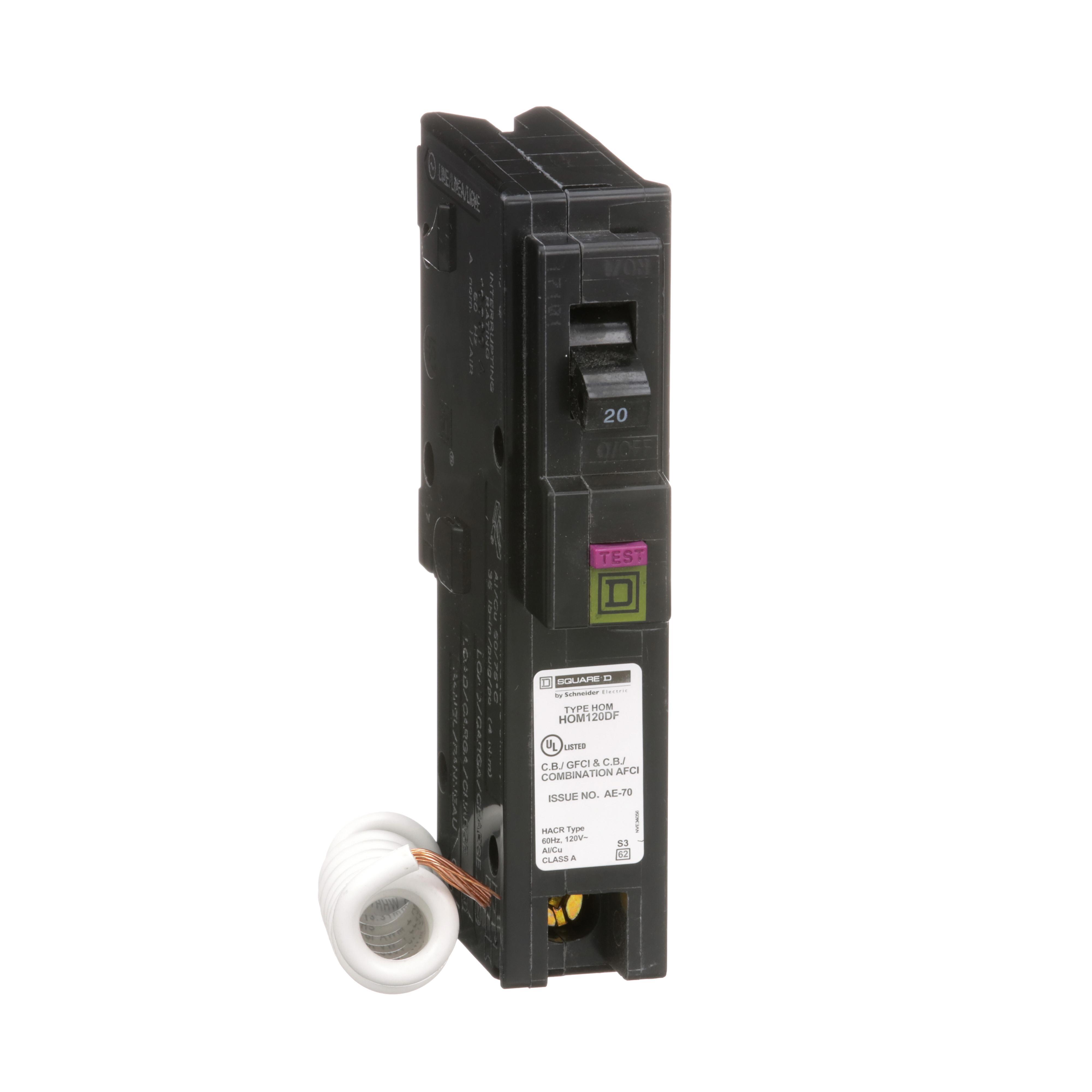

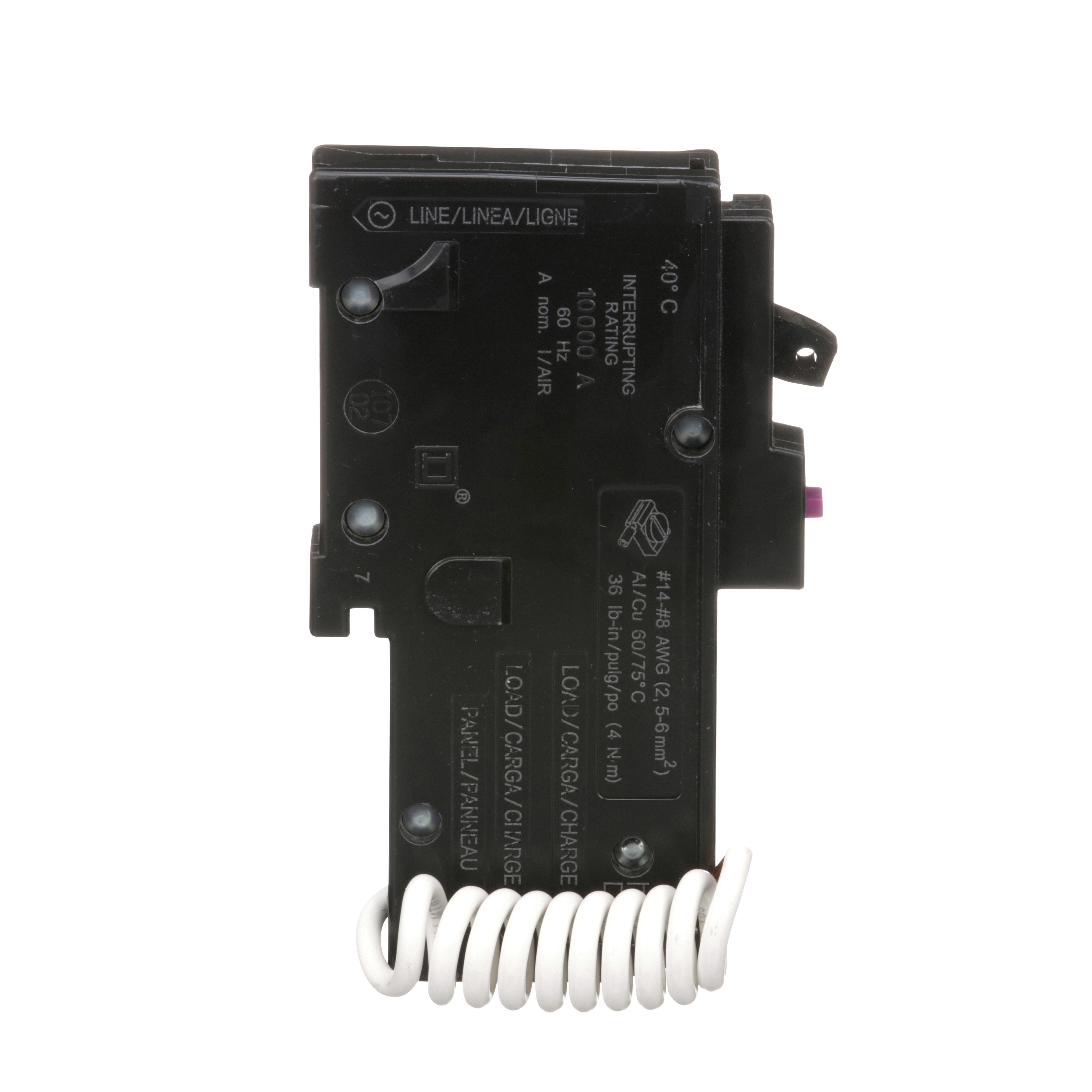

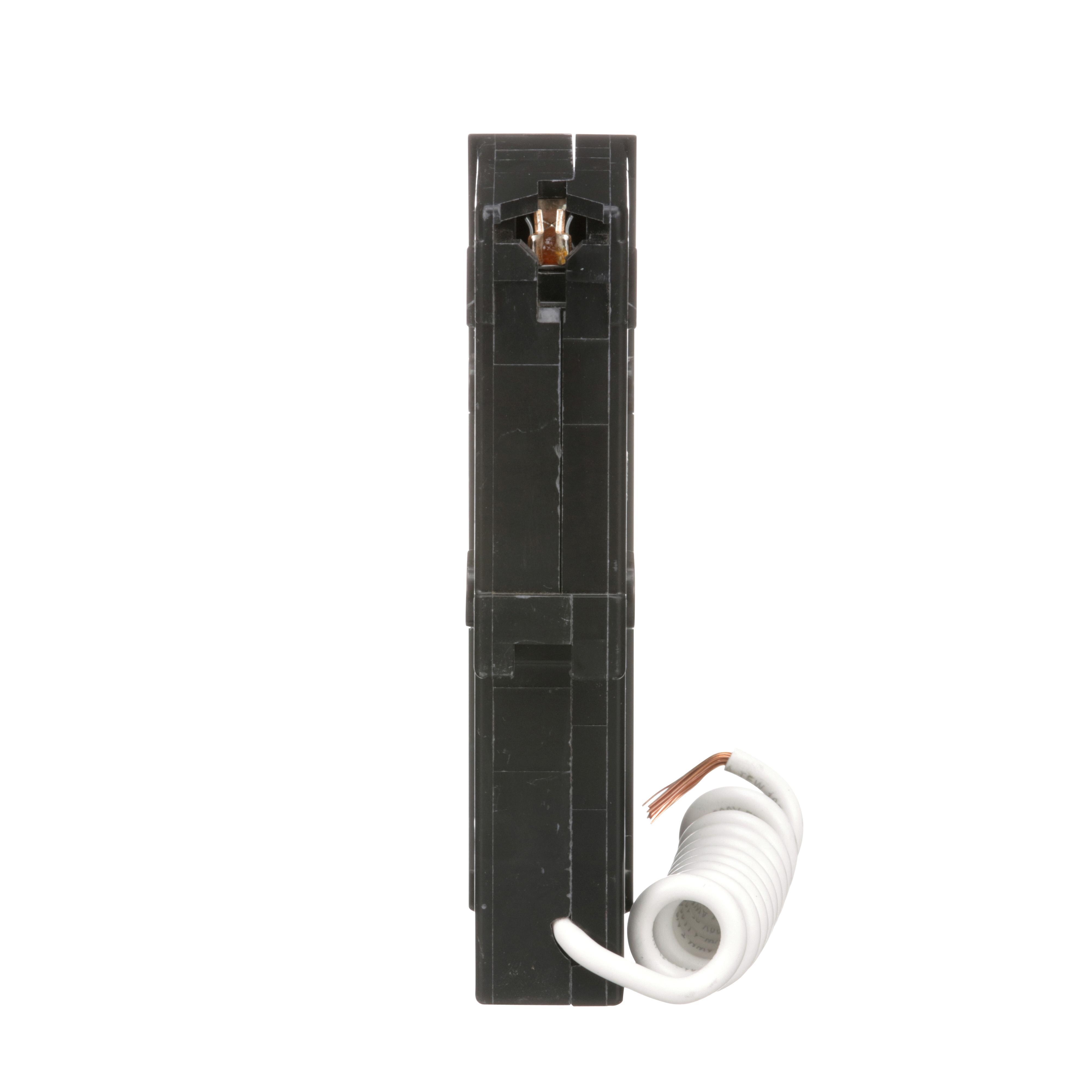

Square D™ Homeline™ HOM120DF Class A Miniature Circuit Breaker, 120 V AC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120 VAC. HOM breakers provide 10 kA breaking capacity. This dual function Homeline circuit breaker combines arc fault and ground fault circuit interrupters. This circuit breaker provides overload and short circuit protection, plus arc fault and ground fault protection in a single device in accordance with the NEC, UL1699 and UL943. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare D™
-
UPC785901741367
-
Manufacturer Part NumberHOM120DF
-
CountryUSA
-
Temperature Rating104 deg F
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeClass A
-
Connection TypeTerminal Screw
-
Mounting TypePlug-On
-
Voltage Rating120 V AC
-
Amperage Rating20 A
-
Wire Size14 to 8 AWG, 14 to 10 AWG
-
Number of Poles1
-
Dimensions2.98 in L x 1 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/2
- Homeline GFCI MCB are designed to protect against irregular electrical current
- Compatible with Homeline electrical panel and CSEDs
- Protects against overload, short curcuits, and ground faults with a current greater than 6mA
-
Alternative Part Number12342614
-
UNSPSC39121603
-
IDEA Index ID12342614
-
Package DescriptionEACH
-
Standards/ApprovalsFederal Specification W-P-115B|HACR Rated|NEC/CSA Certified|RoHS Compliant|UL File No. E6294|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
WarrantyLifetime
-
RoHS
-
Warranty Information
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
