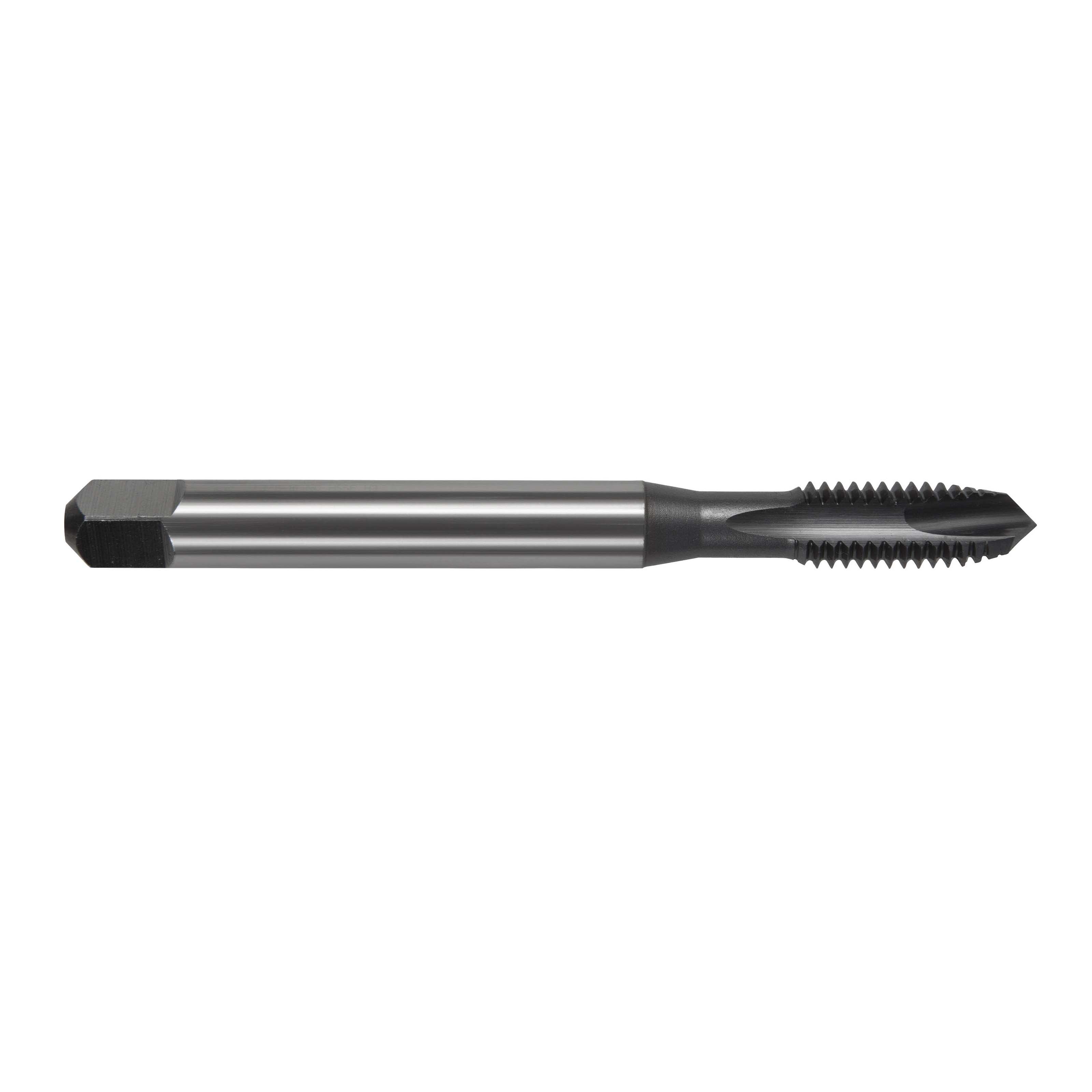

DRILLCO 225N140C 2250N Spiral Point Tap, Right Hand Cutting, 5/8-11 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, TiCN, M35 HSS-Co
Nitro-Max taps are manufactured to DIN/ANSI specifications, with DIN lengths to allow for longer reach and deeper threading in a single pass. TiCN coating helps to hold sharp edges and reduces the coefficient of friction. For CNC applications.
-
BrandDrillco
-
UPC045996893106
-
Manufacturer Part Number225N140C
-
CountryUSA|Canada
-
Finish/CoatingTiCN
-
MaterialM35 HSS-Co
-
Thread LimitH3
-
Thread Size5/8-11
-
Thread StandardUNC
-
Chamfer TypePlug
-
Through Coolant (Yes/No)Yes
-
Measurement SystemImperial
-
Series2250N
-
Number of Flutes3
-
Cutting DirectionRight Hand
-
Overall Length4.33 in
- Available in plug geometry
- TiCN coating for extreme hardness and smoother operation
- Reduced neck for better clearance in deeper holes
- Manufactured from M35 cobalt (HSS-E) with a high vanadium content, these taps offer higher heat resistance and red hardness over conventional HSS taps
- Available in plug geometry
- TiCN coating for extreme hardness and smoother operation
- Reduced neck for better clearance in deeper holes
-
UNSPSC27112806
-
Package Description1/PK
-
Standards/ApprovalsDIN/ANSI Specified|PROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
-
SDS
-
Catalog
