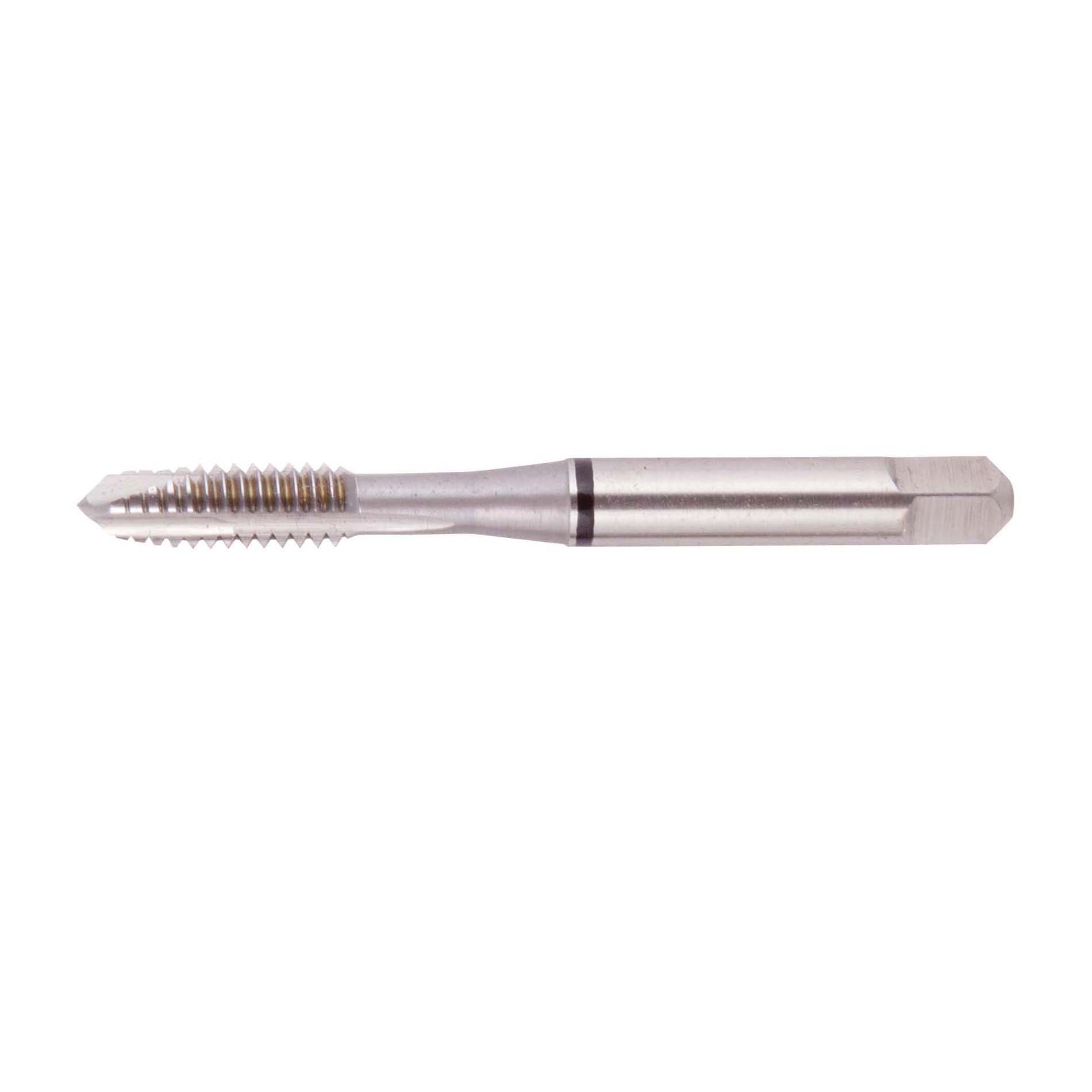

DRILLCO 21PS005C 2100PS Super High Performance Spiral Point Tap, Right Hand Cutting, #5-40 Thread, H2 Thread Limit, Plug Chamfer, 3 Flutes, Uncoated, HSS
These taps are designed for machine tapping in a wide range of material groups, including difficult to machine materials such as stainless steel. The Nitro multi-application spiral point tap improves thread quality, and aids in chip evacuation.
-
BrandDrillco
-
UPC045996892024
-
Manufacturer Part Number21PS005C
-
CountryUSA|Canada
-
Finish/CoatingUncoated
-
MaterialHSS
-
Thread LimitH2
-
Material ApplicationStainless Steel
-
Thread Size#5-40
-
Thread StandardUNC
-
Chamfer TypePlug
-
Through Coolant (Yes/No)Yes
-
Measurement SystemImperial
-
TypeSuper High Performance
-
Series2100PS
-
Number of Flutes3
-
Cutting DirectionRight Hand
- Available in plug geometry
- Spiral point is designed to eject chips through the bottom of the hole
- Bright finish for added lubricity
- Reduced neck for better clearance in deeper holes
- Spiral point can be used with both tap wrenches and reversible power tools
- Reduced neck for better clearance in deeper holes
- Spiral point can be used with both tap wrenches and reversible power tools
-
UNSPSC27112806
-
Package Description1/PK
-
