MORSE C/Tool 5/16-18 3-FL SPIRAL POINT PLUG TAP MCT 30543

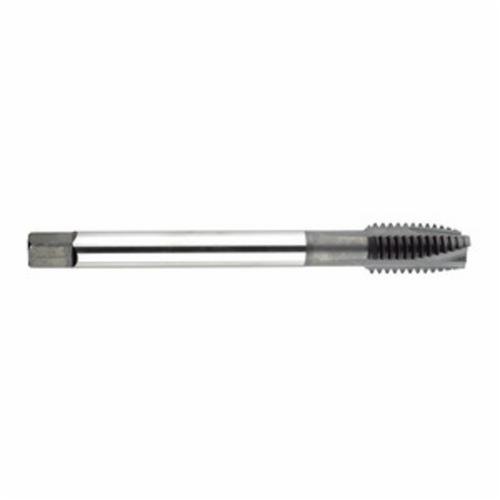

MORSEĀ® 30543 2088 High Performance Spiral Point Tap, Right Hand Cutting, 5/16-18 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Black Steam Oxide, HSS-PM
-
BrandMORSEĀ®
-
UPC686125305437
-
Manufacturer Part Number30543
-
CountryUSA
-
Finish/CoatingBlack Steam Oxide
-
Thread Length0.787 in
-
MaterialHSS-PM
-
Thread LimitH3
-
Material ApplicationSteel, Steel Alloy, Stainless Steel, Titanium Alloy and Materials up to 36Rc Hardness
-
Thread Size5/16-18
-
Thread StandardUNC
-
Chamfer TypePlug
-
Measurement SystemImperial
-
TypeHigh Performance
-
Series2088
-
Number of Flutes3
-
Cutting DirectionRight Hand
-
Overall Length3.543 in
- Spiral point taps are designed for machine tapping in through holes in a wide variety of materials
- The point ejects the chips ahead of the tap, eliminating chip disposal problems and thread damage
- Shallower flutes also result in greater tap core strength allowing for higher cutting speeds
- Plug style (3 to 5 thread chamfer) is the most common chamfer used for tapping applications in through holes and blind holes with sufficient bottom clearance
- CNC reduced neck design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling
- Also reduces contact between the tap and the workpiece
- Premium powder metallurgy high speed steel premium steel engineered for hardness, wear resistance, tool, heat resistance, toughness and strength, performance under difficult cutting conditions, higher cutting speeds, increased productivity
- Steam oxide increases wear resistance, reduces friction, loading and galling, helps retain cutting fluids, improves thread quality and extends tool life
-
UNSPSC23241615
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified|DIN Rated
-
