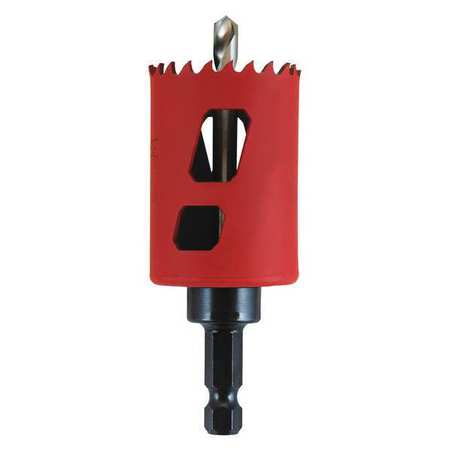

Morse® 116206 MHSA Advanced Hole Saw With Arbor, 1-1/4 in Dia, 1-15/16 in D Cutting, M42 HSS-Co 8 Cutting Edge, 5/8-18 Arbor
Morse, MHSA20C (116206), 1-1/4" (32mm) diameter, arbored, bimetal hole saw is designed for general purpose use, cutting a wide range of materials including stainless steel, machinable metals, wood and plastic. Aggressive, positive rake tooth profile penetrates material easier and faster. Unique side slot increases leaverage access for various thicknesses of materials, easing slug removal. One (1) hole saw per card. To optimize performance consider using Morse CUTLUBE (121408).
-
BrandMorse®
-
UPC050326116206
-
Manufacturer Part Number116206
-
CountryUSA|Canada
-
ColorRed
-
TypeAdvanced
-
Applicable MaterialsMachinable Metal, Nail Embedded Wood, Plastic, Stainless Steel Alloy and Wood
-
Arbor Size5/8-18
-
SeriesMHSA
-
Cutting Depth1-15/16 in
-
Shank Size3/8 in
-
Cutting Edge MaterialM42 HSS-Co 8
-
Cutting Edge StyleToothed
-
Shank TypeHex
-
Diameter1-1/4 in
-
Speed140 to 410 rpm
-
Drill Size1/4 in Dia x 3-3/32 in L
-
Body MaterialBi-Metal
-
TPI or Pitch5/6 TPI
- Patent pending tooth set design - optimized to remove material faster
- Premium M42 high speed steel cutting edge, 8% cobalt - over 2X the life of our AV model
- New Cap - Reduces run out and vibration
- Heavy duty 0.05 in side wall - for greater stability
- New Side Slot - Increased leverage for faster, easier slug removal
- New exterior red coating - reduces side wall friction for efficient cutting
-
Alternative Part NumberMHSA20C
-
UNSPSC27112826
-
Package DescriptionEACH
-
WarrantyLimited
-
