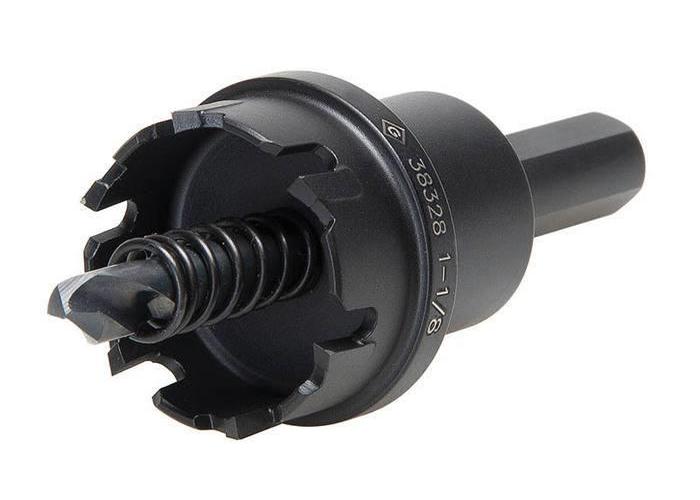

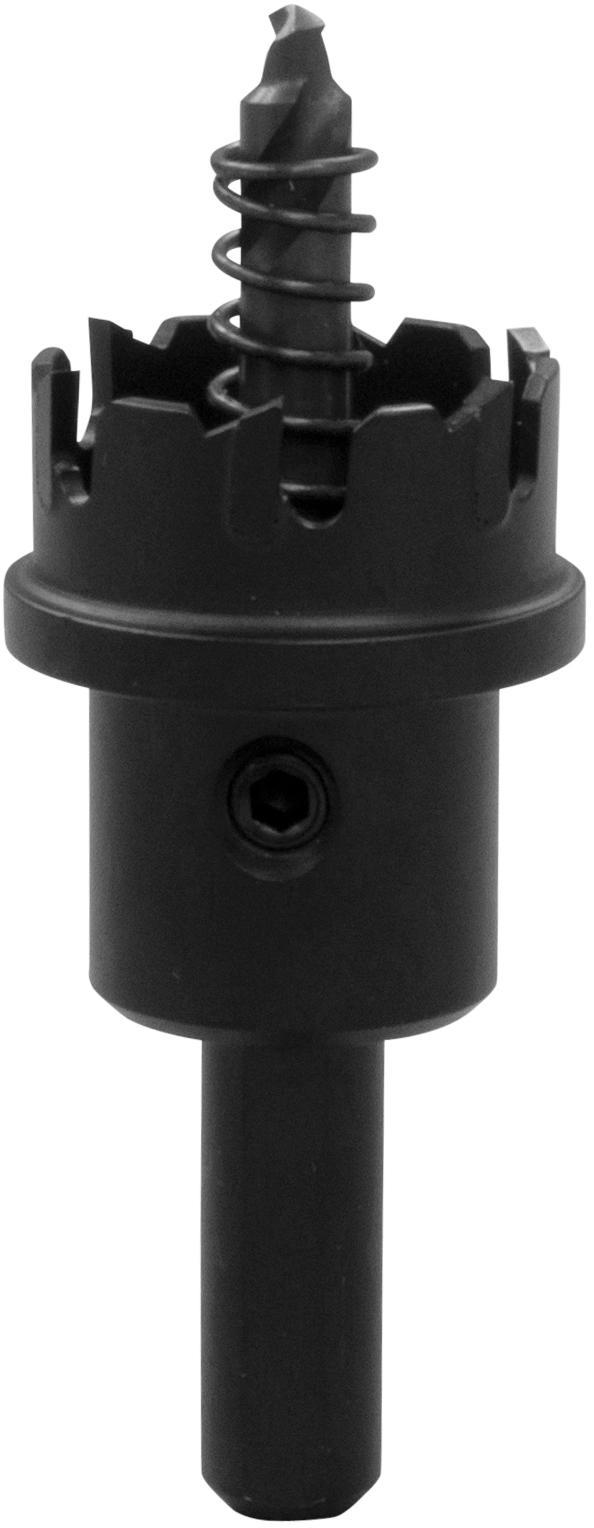

Greenlee® 625-1-1/8 Hole Cutter, 1-1/8 in Dia, 8 ga D Cutting, Tungsten Carbide Tip Cutting Edge
-
BrandGreenlee®
-
UPC783310383284
-
Manufacturer Part Number625-1-1/8
-
CountryUSA|Canada
-
Chuck Size3/8 in
-
Applicable MaterialsAluminum, Copper, Brass, Fiberglass, Mild Steel, Plastics and Stainless Steel
-
Series625
-
Cutting Depth8 ga
-
Shank Size1/2 in
-
Cutting Edge MaterialTungsten Carbide Tip
-
Cutting Edge StyleTeeth
-
Diameter1-1/8 in
-
Speed535 rpm Mild Steel/370 rpm Stainless Steel
-
Drill Size1/4 x 1-7/8 in
- Strong, durable one-piece construction for even longer life
- Split-Point Cobalt Steel Pilot Drill with step design for fast, accurate cutting with less force
- Flange Stop eliminates over-drilling
- Slug Ejector Spring quick, easy slug removal
- Power tool accessory cuts round, burr-free holes
- Slug ejector spring quick, easy slug removal cuts round, burr-free holes
- Strong, durable one-piece construction for even longer life
-
Alternative Part Number8432846
-
UNSPSC23241638
-
IDEA Index ID8432846
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant
-
Warranty1 year Limited
-
