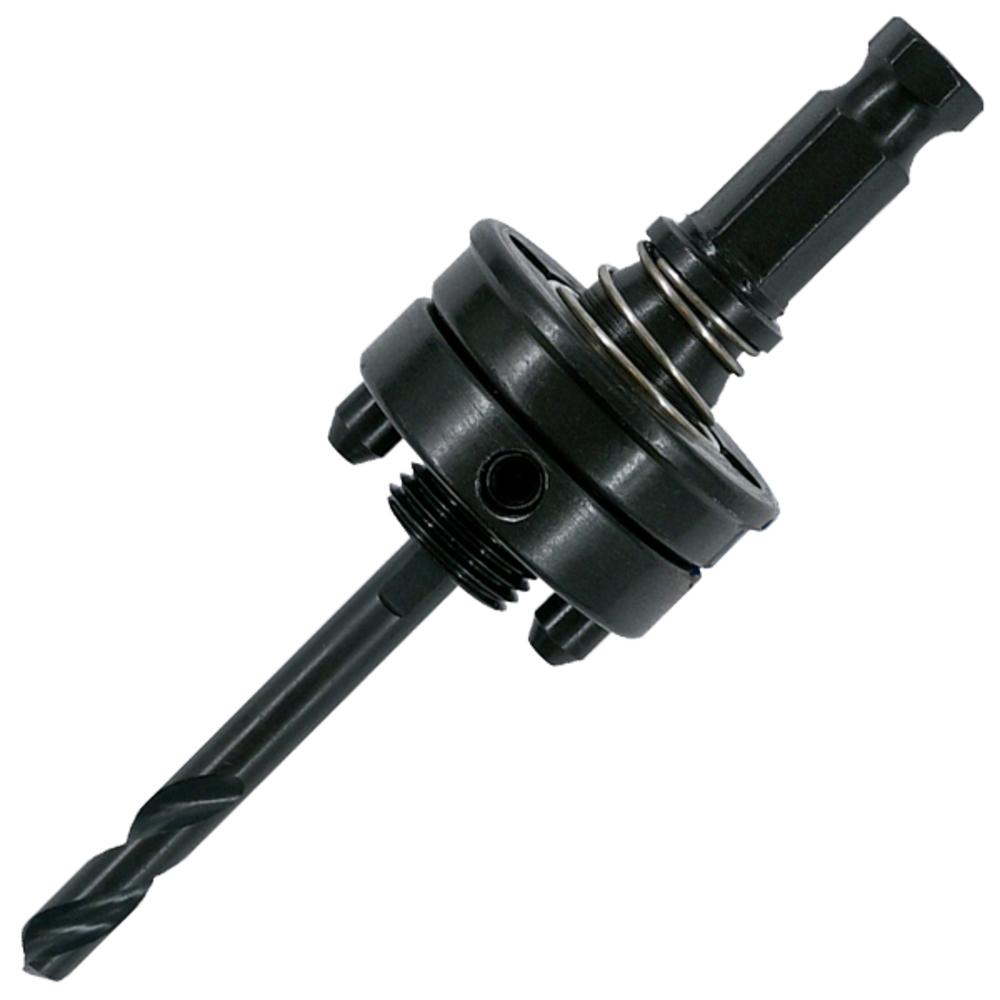

M.K. Morse® 139069 General Purpose Hole Saw Arbor
Morse MA45PSN (139069), spring loaded arbor provides a 7/16" solid shank can be used with any standard hole saw with 5/8"-18 thread pitch (1-1/4" to 6-5/8" diameter). The strength of the spring ensures the arbor pins remain engaged during use, effectively handling the torque generated by larger diameter hole saws, preventing thread strippage. Easily change hole saw diameters with efficiency and minimal effort. High speed steel pilot drill for use in wood, ferrous and non-ferrous metals. One (1) arbor per box.
-
BrandMorse®
-
UPC050326139069
-
Manufacturer Part Number139069
-
CountryUSA|Canada
-
MaterialHSS
-
TypeGeneral Purpose
-
Applicable MaterialsFerrous and Nonferrous Metals, Woods, Composites, and Plastics
-
Hole Saw Diameter1-1/4 to 6-5/8 in
-
Shank ShapeHex
-
Shank Size7/16 in
-
Overall Length4-5/8 in
-
Pilot Drill Size1/4 x 3-3/32 in
- High speed steel pilot drill
- 5/8 to 18 in thread pitch
- Sping loaded, pin drive
- Fits hole saws 1-1/4 in diameter to 6-5/8 in
- SDS arbors are used in tools having SDS chucks, to drive hole saws in rotary hammers or hammer drills
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | FZ50139038 |
-
Alternative Part NumberMA45PS
-
UNSPSC27112811
-
Package DescriptionEACH
-
WarrantyLimited
-
