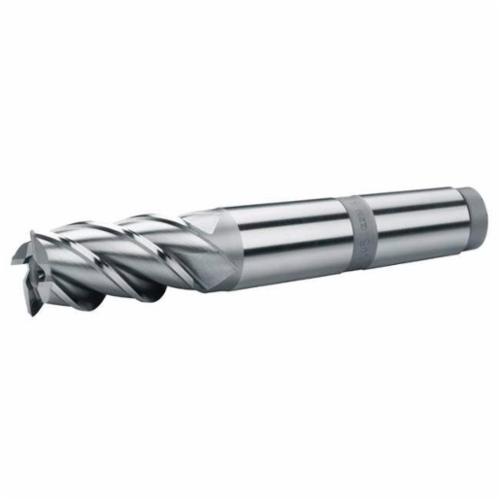

MORSE® 43220 1895C Center Cutting Double End Regular Length End Mill, 1/16 in Dia Cutter, 3/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2-1/4 in OAL, Bright
MORSE® 43220 1895C Center Cutting Double End Regular Length End Mill, 1/16 in Dia Cutter, 3/16 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2-1/4 in OAL, Bright
-
BrandMORSE®
-
UPC686125432201
-
Manufacturer Part Number43220
-
CountryUSA
-
FinishBright
-
MaterialCobalt 8/M42 HSS
-
Flute TypeSpiral
-
TypeCenter Cutting Double End Regular Length
-
Helix Angle30 deg
-
Series1895C
-
Cutter Diameter1/16 in
-
Shank Diameter3/16 in
-
Number of Flutes4
-
Cutting DirectionRight Hand
-
Shank TypePlain/Round
-
Length of Cut3/16 in
-
Overall Length2-1/4 in
- Miniature 3/16 in shank end mills are designed for small diameter milling of slots, keyways and pockets
- Center cutting end allows for plunge cutting like a drill into solid material
- For maximum rigidity, select the shortest possible length of cut for your application
- M42 8% cobalt offers increased wear and heat resistance for abrasive and difficult materials, higher speeds and feeds and long life in production applications
-
UNSPSC23242511
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
