MORSE C/Tool 1/2" ROUGHING COBALT/TIN ENDMILLS MCT 45206

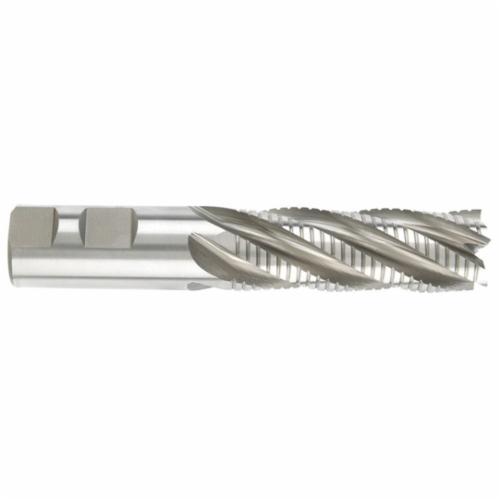

MORSE® 45206 4640G Center Cutting Regular Length Roughing End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, TiN Coated
-
BrandMORSE®
-
UPC686125452063
-
Manufacturer Part Number45206
-
CountryUSA
-
FinishTiN Coated
-
MaterialM42 HSS-Co 8
-
Flute TypeSpiral
-
TypeCenter Cutting Regular Length
-
Helix Angle30 deg
-
Series4640G
-
Cutter Diameter1/2 in
-
Shank Diameter1/2 in
-
Number of Flutes4
-
Cutting DirectionRight Hand
-
Shank TypeRound/Weldon Flat
-
Length of Cut1-1/4 in
-
Overall Length3-1/4 in
- Roughing/finishing end mills rough and finish in a single pass, removing material at roughing rates while producing a finish near that produced by standard end mills
- Recommended for a wide variety of materials of soft to medium hardness including titanium and aluminum alloys
- M42 8% cobalt offers increased wear and heat resistance for abrasive and difficult materials, higher speeds and feeds and long life in production applications
- Tool coatings further enhance milling performance
-
UNSPSC23242511
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
