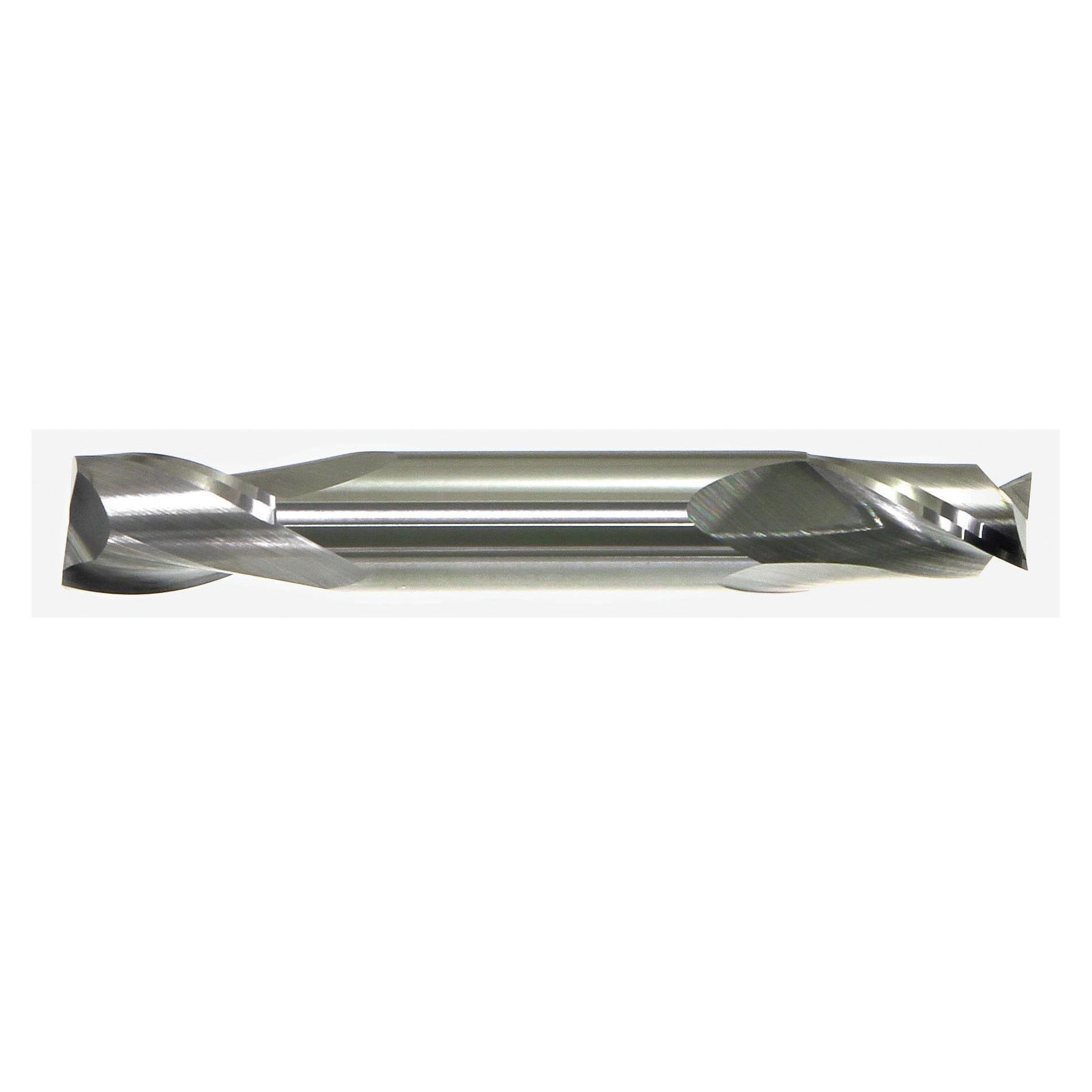

Drillco 74A132C 7400 Center Cutting Double End Imperial Stub Length Finishing End Mill, 1/2 in Dia Cutter, 5/8 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3 in OAL, Uncoated
Solid carbide end mills run at extremely impressive feed and speed rates. In some cases, they can be run at 3x the rates of HSS end mills. Using solid carbide end mills results in better surface finish on the workpiece and extended tool life.
-
BrandDrillco
-
UPC045997391243
-
Manufacturer Part Number74A132C
-
CountryUSA|Canada
-
FinishUncoated
-
MaterialSolid Carbide
-
Flute TypeSpiral
-
TypeCenter Cutting Double End Imperial Stub Length
-
Helix Angle30 deg
-
Series7400
-
Cutter Diameter1/2 in
-
Shank Diameter1/2 in
-
Number of Flutes2
-
Cutting DirectionRight Hand
-
Shank TypeRound
-
Length of Cut5/8 in
-
Overall Length3 in
- Solid carbide construction for extreme rigidity and strength
- Solid carbide can be ran at 3x the speed and feed of HSS
- Center cutting tip for plunging, pocketing and holemaking
- 2 flutes provide more efficient chip removal
- Bright finish for added lubricity
- Stub length for added rigidity
- Double ended for 2x the life
-
UNSPSC27112803
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including Cobalt, which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
-
SDS
-
Catalog
