MORSE C/Tool 1/8" 2-FLUTE SE CRB TIALN ENDMILL MCT 90180

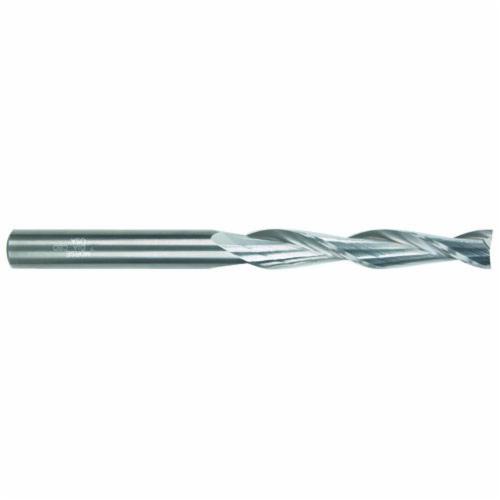

MORSE® 90180 5950T Center Cutting Extra Long Length Single End End Mill, 1/8 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 3 in OAL, TiAlN Coated
-
BrandMORSE®
-
UPC686125901806
-
Manufacturer Part Number90180
-
CountryUSA
-
FinishTiAlN Coated
-
MaterialSolid Micrograin Carbide
-
TypeCenter Cutting Extra Long Length Single End
-
Helix Angle30 deg
-
Series5950T
-
Cutter Diameter1/8 in
-
Shank Diameter1/8 in
-
Number of Flutes2
-
Cutting DirectionRight Hand
-
Shank TypePlain/Round
-
Length of Cut1 in
-
Overall Length3 in
- 2-flute end mills provide increased chip capacity for higher feed rates
- Recommended for easy-to-machine materials including low alloy steels, non-ferrous materials and cast iron
- Center cutting end allows for plunge cutting like a drill into solid material
- External coolant
| Competitor Name | Cross-Reference Number |
|---|---|
| Berkshire eSupply | MT3290180 |
-
UNSPSC23242511
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2008
-
Specification Sheet
-
Catalog
