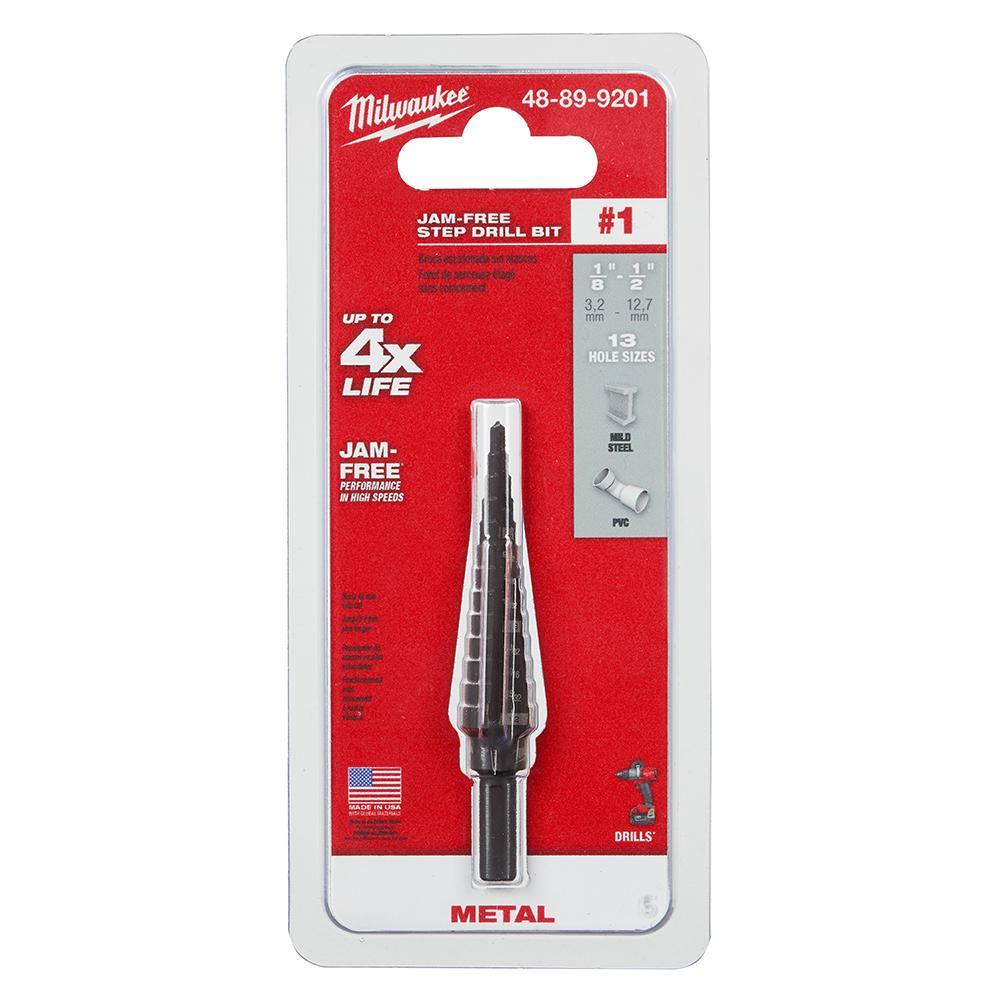

Milwaukee® 48-89-9201 Step Drill Bit, 1/8 in Dia Min Hole, 1/2 in Dia Max Hole, 13 Steps, HSS, 13 Hole Sizes, 1/4 in Shank
Milwaukee® step drill bits with jam-free performance feature a dual-flute design delivering up to 2X faster hole times, up to 4X longer life and up to 50% more holes per battery charge than the competition. Ideal for drilling large and small-diameter holes in steel and plastic, these bits are optimized for cordless drills in high speed. The Rapid Strike™ tip allows for fast, accurate starts that generate less heat, resulting in longer bit tip life. Black oxide coating also enhances durability, hole quality and bit life. For user convenience and accuracy, each bit has laser-engraved reference marks you can see while drilling. The 3-flat Secure-Grip™ shank ensures a solid connection with the drill chuck. The #1 step drill bit has 13 hole sizes in 1/32 in. increments ranging from 1/8 in. to 1/2 in.. jam-free performance in high speed with most professional 18 Volt cordless drills lithium-ion battery technology.
-
BrandMilwaukee®
-
UPC045242307630
-
Manufacturer Part Number48-89-9201
-
CountryUSA|Canada
-
FinishOxide Treated
-
MaterialHSS
-
Maximum Hole Diameter1/2 in
-
Minimum Hole Diameter1/8 in
-
Applicable MaterialsMetal and Plastic
-
Number of Flutes2
-
Shank Size1/4 in
-
Cutting Edge MaterialHSS
-
Shank Type3-Flat/Reduced
-
Number of Hole Sizes13
-
Number of Steps13
-
Drill Diameter Measurement SystemImperial
-
Letter/Wire Size#1

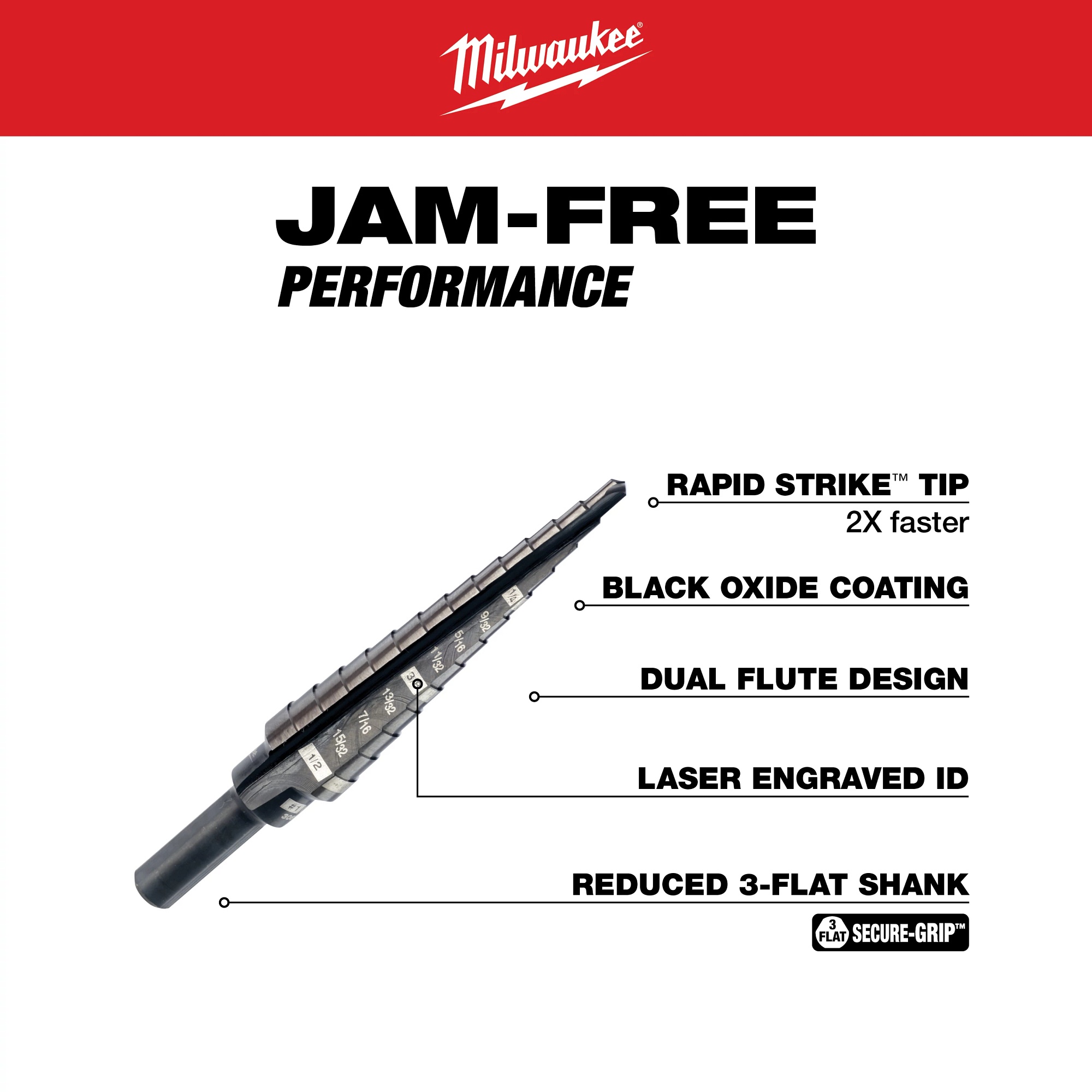

- JAM-FREE Performance - Dual-flute design provides greater speed and control

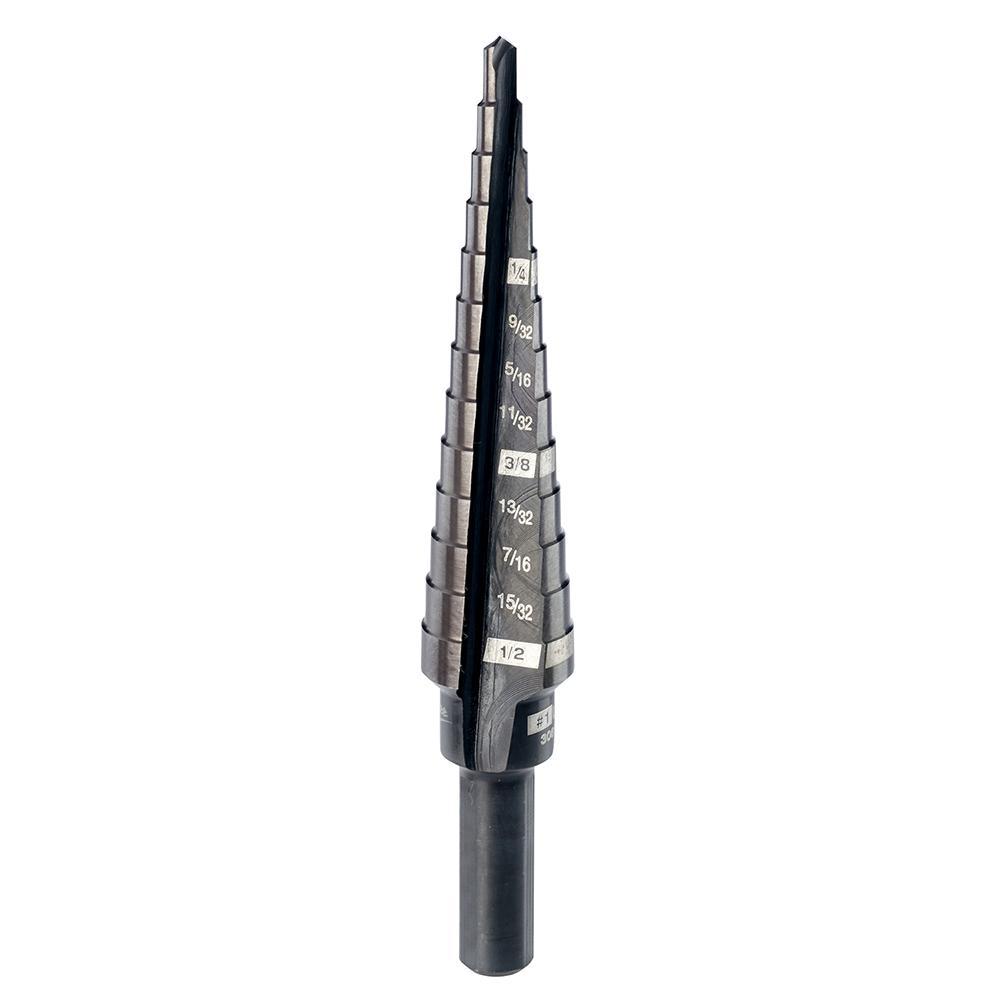

- Laser-engraved reference marks - Easily stop on any hole size

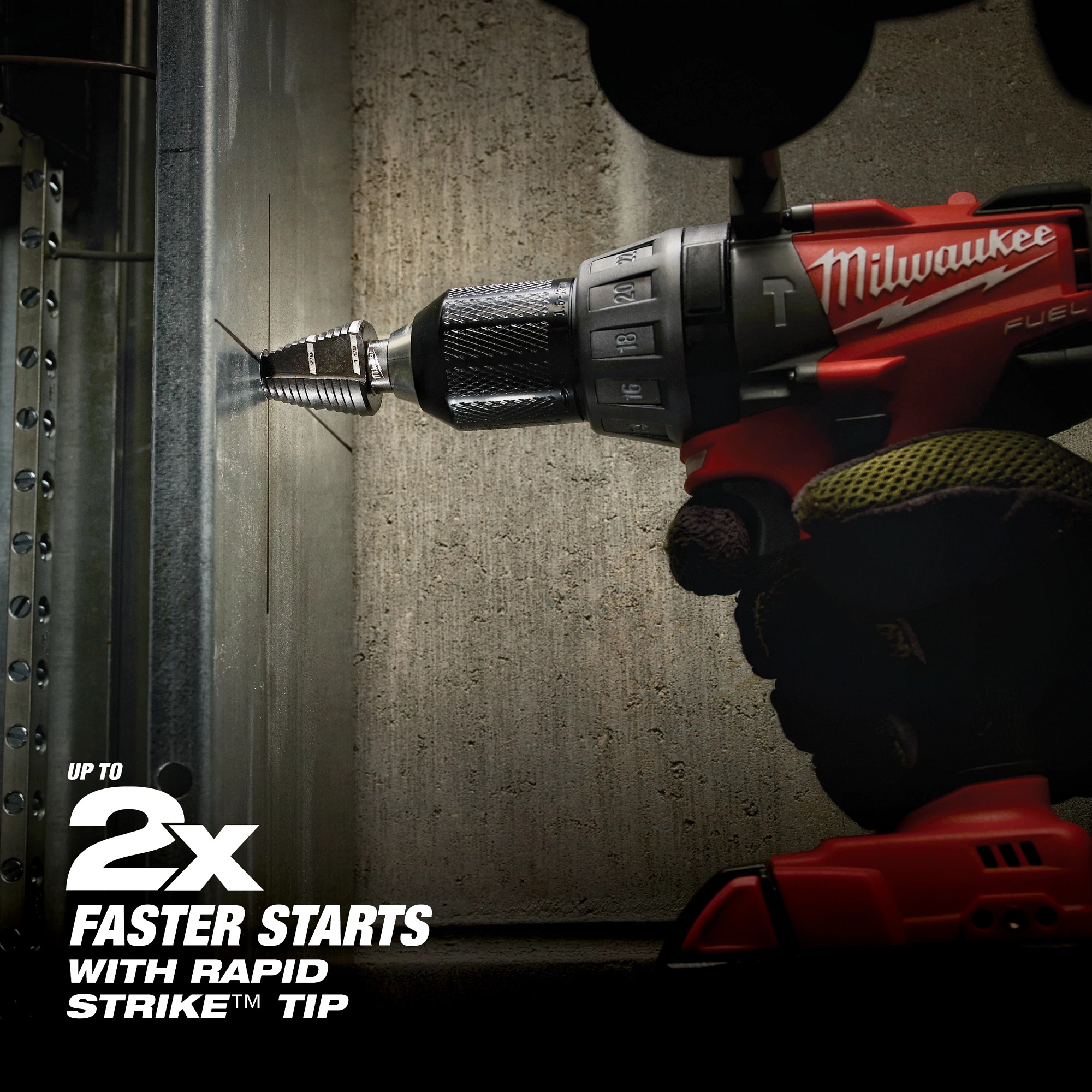

- Rapid Strike Tip - Creates fast, accurate starts and generates less heat
- Up to 2X faster - Optimized for cordless drills in high speed
- Up to 50% more holes per battery charge - Greater user productivity

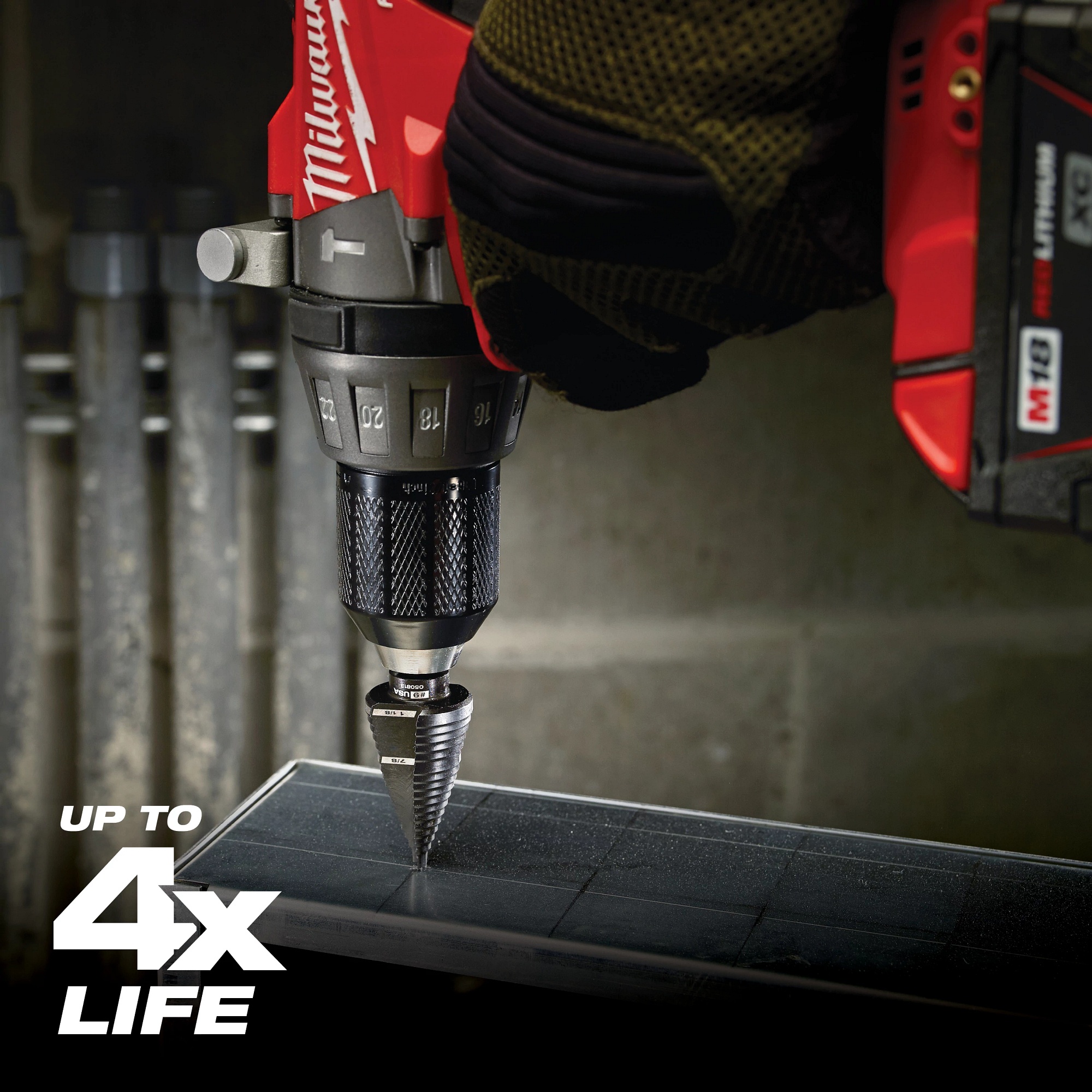

- Up to 4X longer bit life, Optimized geometry with Black Oxide coating to cut faster and produce less heat
- Up to 50 Percent more holes per battery charge, Greater user productivity
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | PD5048899201 |
| MSC | 40482085 |
| Grainger | 19RK72 |
| Fastenal | 2115755 |
-
Alternative Part Number13926355
-
UNSPSC20111614
-
IDEA Index ID13926355
-
Package DescriptionEACH
-
WarrantyNo Warranty
