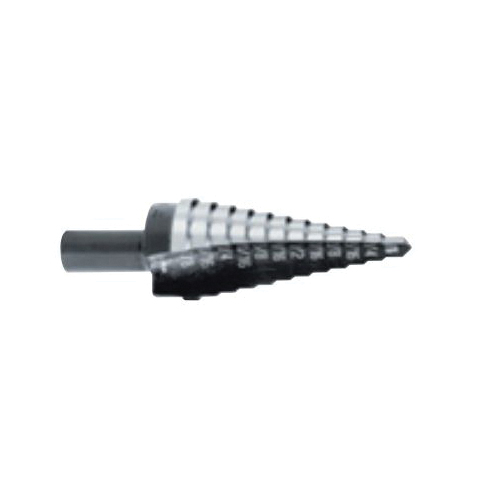

Irwin® Unibit® 10234 Step Drill Bit, 3/16 in Dia Min Hole, 12 Steps, 12 Hole Sizes, 3/8 in Shank
Irwin® Unibit® Step Drill Bits are ideal for drilling holes in just about any type of thin material. General purpose high speed steel Unibit® Step Drill Bits are perfect for use in mild steel, copper, brass, aluminum, plexiglass, wood and laminate. Our titanium nitride coated (TiN) bits resist heat and friction, which extends the life of the cutting edge six times longer than standard step drills. And our cobalt Step Drill Bits are engineered with M35 cobalt steel for maximum life when drilling in the toughest steel, including stainless steel. Most Unibit® step drills are designed with a SpeedPoint® tip that guarantees fast starts. They're manufactured with a single flute cutting edge that drills multiple sizes of true, round holes with precise step control. Plus, the hole sizes are permanently laser etched on the inside of the flute, so they can be easily identified throughout the life of the bit.
-
BrandIrwin®
-
UPC038548101040
-
Manufacturer Part Number10234
-
CountryUSA|Canada
-
FinishUncoated
-
Point TypeSelf-Starting SpeedPoint®
-
MaterialHSS
-
Maximum Hole Diameter7/8 in
-
Minimum Hole Diameter3/16 in
-
Applicable MaterialsAluminum, Brass, Copper, Laminates, Plastic and Stainless Steel
-
Number of Flutes1
-
Shank Size3/8 in
-
Cutting Edge MaterialHSS
-
Shank TypeHex
-
Number of Hole Sizes12
-
Number of Steps12
-
Drill Diameter Measurement SystemImperial
-
Step Depth1/16 in
-
Overall Length3 in
-
Letter/Wire Size#4
- New SpeedPoint® tip penetrates faster than previous Unibit® and prevents walking
- Speed point tip for fast starting
- High speed steel fractional

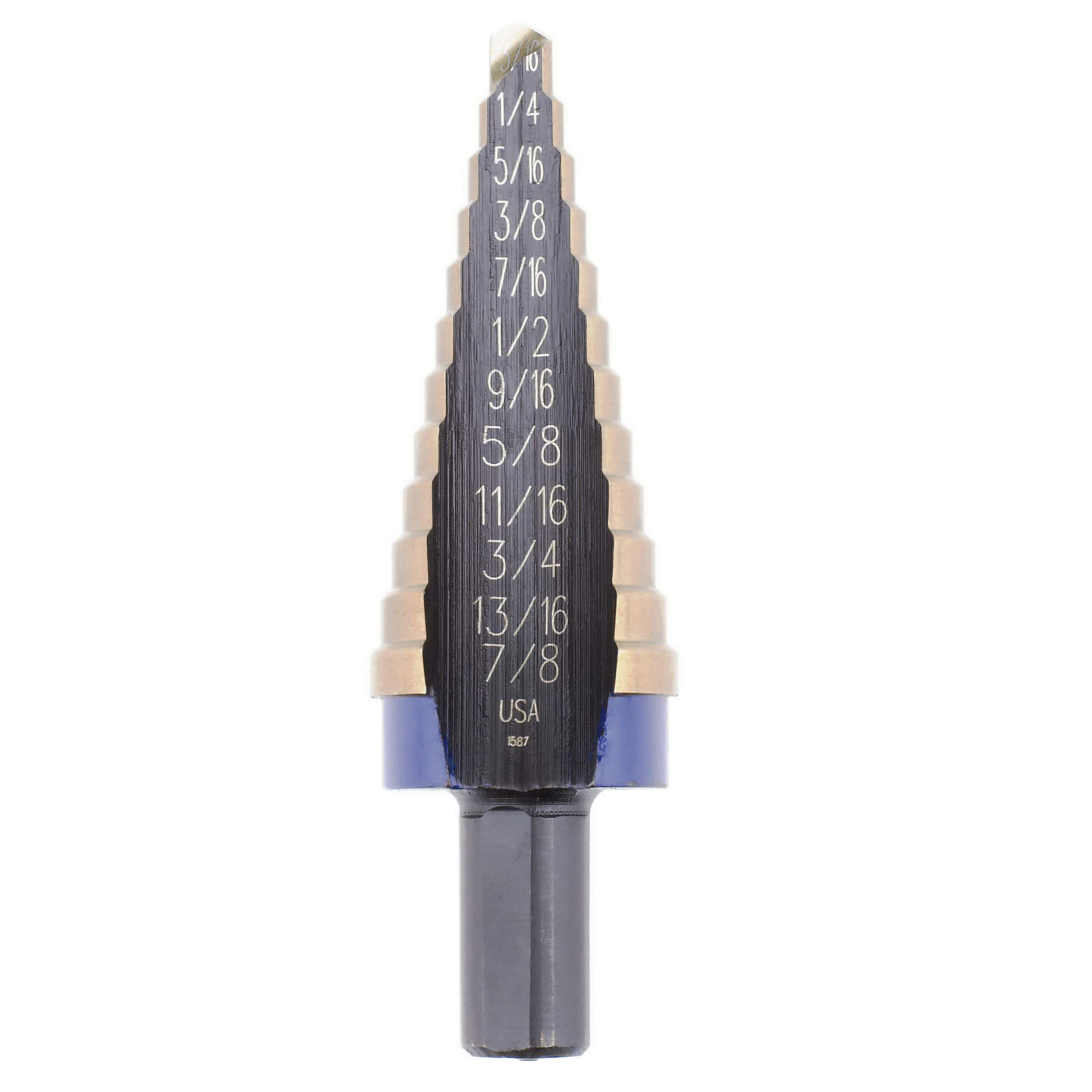

- Laser etched sizes inside flute for easy and permanent hole size identification
- Hex shank prevents slipping in drill chuck
- 3-flatted shank won't slip in chuck
- Laser marked sizes won't wear off with use
- Single-fluted cutting edge for greater control and rounder holes
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 03854810104 |
-
UNSPSC23241640
-
Package DescriptionEACH
-
WarrantyLifetime
-
Alternative Part Number10234SM
-
