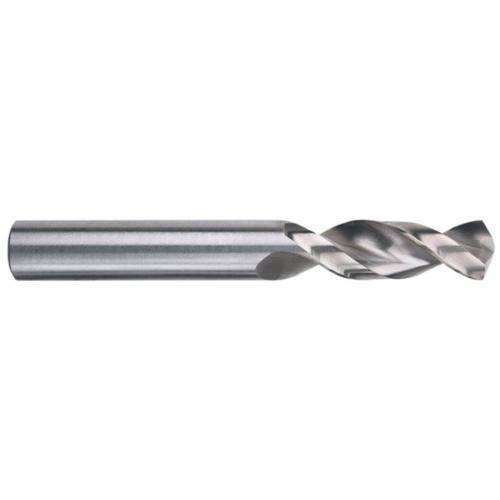

MORSE® 12335 1360 High Performance Heavy Duty Web Screw Machine Drill, 7/16 in Drill - Fraction, 0.4375 in Drill - Decimal Inch, M35 Cobalt, Bright
The next generation in parabolic flute design, are effective in a wider range of materials and applications than standard parabolic flute drills. An enhanced flute design with reinforced web provides increased drill strength and rigidity, straighter closer tolerance holes, improved chip formation and evacuation, improved coolant flow to the drill point and higher speeds and feeds for increased productivity.
-
BrandMORSE®
-
UPC686125123352
-
Manufacturer Part Number12335
-
CountryUSA
-
FinishBright
-
Point Angle130 deg
-
Point TypeSelf-Centering
-
MaterialM35 Cobalt
-
Flute Length47 mm
-
Flute TypeWide Land Parabolic
-
TypeHigh Performance Heavy Duty Web
-
Applicable MaterialsAlloy Steel, Ferrous Casting, Inconel, Stainless Steel, Titanium and Other Difficult-to-Drill Material
-
Series1360
-
Cutting Depth3XD
-
Shank Size7/16 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialM35 Cobalt
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.4375 in
-
Drill Size - Fraction7/16 in
-
Overall Length95 mm
- M35 cobalt offers increased hardness, toughness, wear resistance and heat resistance
- Highly recommended for drilling tough, high tensile strength materials up to 35 rc hardness and materials that generate higher cutting temperatures
- Short flute length and short overall length for maximum rigidity
-
UNSPSC23241635
-
Package Description1/PK
-
Standards/ApprovalsISO 9001:2015
-
