MORSE C/Tool 5/16" SOLID-CARBIDE SML DRILLBITS MCT 92317

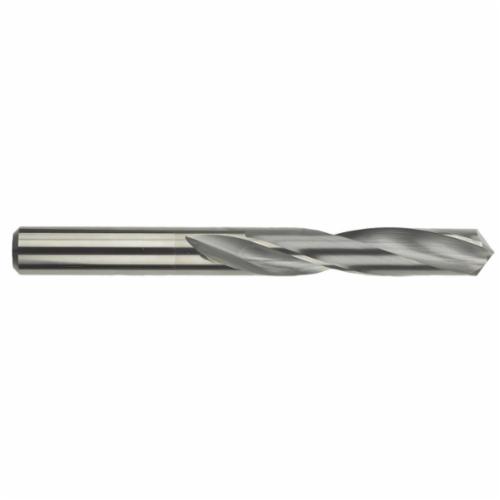

MORSE® 92317 5375T General Purpose Screw Machine Drill, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, Solid Carbide, TiAlN Coated
-
BrandMORSE®
-
UPC686125923174
-
Manufacturer Part Number92317
-
CountryUSA
-
FinishTiAlN Coated
-
Point Angle135 deg
-
Point TypeSplit/Self-Centering
-
MaterialSolid Carbide
-
Flute Length1-5/8 in
-
Flute TypeStandard
-
TypeGeneral Purpose
-
Applicable MaterialsCarbon Steel, Cast Iron, Gummy Materials, High Temperature Alloy Steel, Inconel, Other High Strength Ferrous Materials, Stainless Steel, Titanium, Tool Steel and Work Hardened
-
Series5375T
-
Cutting Depth1-5/8 in
-
Shank Size5/16 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialSolid Carbide
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.3125 in
-
Drill Size - Fraction5/16 in
-
Overall Length2-13/16 in
- Solid carbide offers excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life
- High rigidity enhances hole accuracy and quality
- 135 deg self-centering split point eliminates walking and reduces thrust
- Titanium aluminum nitride (TiAlN) coating is an excellent all around coating that increases surface hardness wear resistance, heat resistance, chip flow and resists chip welding
- Especially recommended for a wide range of materials including abrasive and tough materials that generate higher cutting temperatures
-
UNSPSC23241605
-
Package Description1/PK
-
Standards/ApprovalsDIN 1897
-
