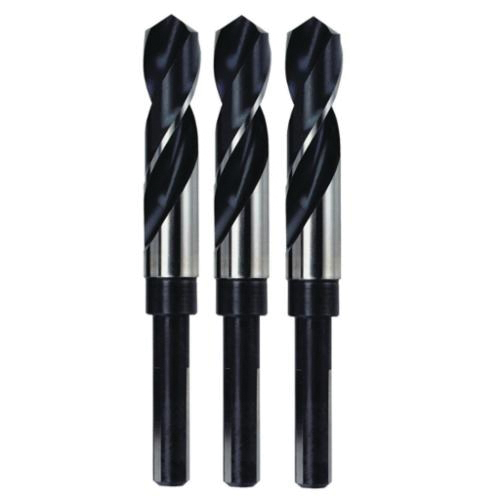

Irwin® 90172 901 General Purpose Silver & Deming Drill, 1-1/8 in Drill - Fraction, 1.125 in Drill - Decimal Inch, 1/2 in Shank, M7 HSS
-
BrandIrwin®
-
UPC042526901720
-
Manufacturer Part Number90172
-
CountryUSA|Canada
-
FinishBlack Oxide
-
Point Angle118 deg
-
Point TypeChisel/Standard
-
MaterialM7 HSS
-
Flute Length3 in
-
Flute TypeSpiral
-
TypeGeneral Purpose
-
Applicable MaterialsMetal, Plastic and Wood
-
Series901
-
Number of Flutes2
-
Cutting Depth3 in
-
Shank Size1/2 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialM7 HSS
-
Shank TypeFlat/Reduced
-
Drill Size - Decimal Inch1.125 in
-
Drill Size - Fraction1-1/8 in
-
Overall Length6 in
- Bit is constructed of M-7 high speed steel for high resistance to abrasion during tough drilling applications
- Three flatted shank design provides better chuck grip and reduces slippage, ideal for use in keyless chucks
- High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and non-ferrous materials
- Oxide coating prevents chip building, galling and welding on the workpiece
- Round shanks with flats are ground flat on three sides for increased chuck grip, reducing slippage and help centering the drill in the chuck
- All silver and deming bits are 6 in long and feature a 1/2 in reduced shank that fits all 1/2 in drills
- Engineered with premium high speed steel with black oxide coating for corrosion resistance
- They are used with portable drills and drill presses on ferrous and non-ferrous materials
- 118 deg chisel point tip is perfect for general purpose applications
- CW spiral angle
-
UNSPSC23241636
-
Package DescriptionEACH
