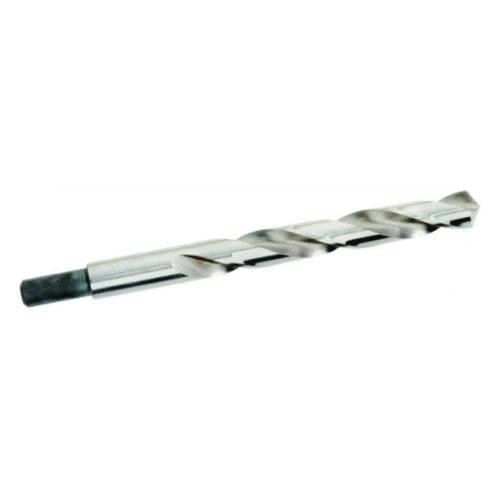

Irwin® 73831 General Purpose Jobber Length Drill Bit, 31/64 in Drill - Fraction, 0.4844 in Drill - Decimal Inch, 118 deg Point, M2 HSS, Bright
Quickly power through metal, wood, and plastic with this 31/64 in. General Purpose HSS 3/8 in. Reduced Shank, Jobber-Length Drill Bit. The 118° chisel-tip point gives you cleans starts and prevents walking. It’s engineered to last M-2 high-speed steel construction.
-
BrandIrwin®
-
UPC024721738318
-
Manufacturer Part Number73831
-
CountryUSA|Canada
-
FinishBright
-
Point Angle118 deg
-
Point TypeStandard
-
MaterialM2 HSS
-
Through Coolant (Yes/No)No
-
Flute Length4-3/8 in
-
Flute TypeSpiral
-
TypeGeneral Purpose
-
Applicable MaterialsMetal, Plastic and Wood
-
Series738
-
Number of Flutes2
-
Cutting Depth4-3/8 in
-
Shank Size3/8 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialM2 HSS
-
Shank TypeReduced/Straight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.4844 in
-
Drill Size - Fraction31/64 in
-
Overall Length5-7/8 in
- Bit is constructed of M-2 high speed steel for the best combination of strength, heat resistance and wear resistance
| Cross-Reference Number |
|---|
| 320520 |
-
UNSPSC20121613
-
Package DescriptionEACH
-
