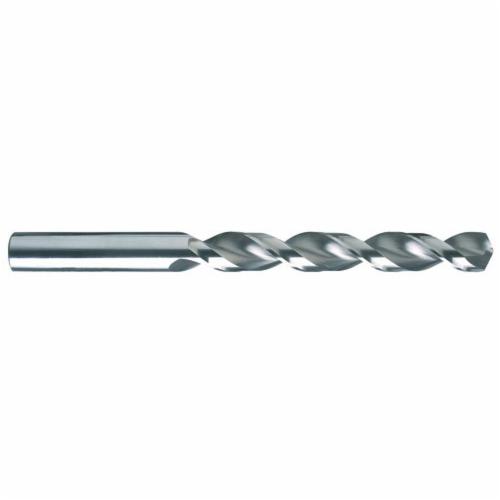

MORSE® 60322 1361T High Performance Jobber Length Drill Bit, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 130 deg Point, M35 Cobalt, TiAlN Coated
MORSE® 60322 1361T High Performance Jobber Length Drill Bit, 3/8 in Drill - Fraction, 0.375 in Drill - Decimal Inch, 130 deg Point, M35 Cobalt, TiAlN Coated
-
BrandMORSE®
-
UPC686125603229
-
Manufacturer Part Number60322
-
CountryUSA
-
FinishTiAlN Coated
-
Point Angle130 deg
-
Point TypeSelf-Centering
-
MaterialM35 Cobalt
-
Flute Length87 mm
-
Flute TypeWide Land Parabolic
-
TypeHigh Performance
-
Applicable MaterialsHigh Alloy Steel, Ferrous Casting, Titanium, Inconel and Stainless Steel
-
Series1361T
-
Number of Flutes2
-
Cutting Depth5XD
-
Shank Size3/8 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialM35 Cobalt
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.375 in
-
Drill Size - Fraction3/8 in
-
Overall Length133 mm
- Special web thinning
- Heavy duty web
- Wide land parabolic - the next generation in parabolic flute design, are effective in a wider range of materials and applications than standard parabolic flute drills
- Enhanced flute design with reinforced web provides increased drill strength and rigidity, straighter closer tolerance holes, improved chip formation and evacuation, improved coolant flow to the drill point and higher speed and feeds for increased productivity
- M35 cobalt offers increased hardness, toughness, wear resistance and heat resistance
-
UNSPSC23241634
-
Package Description1/PK
-
Standards/ApprovalsDIN 338
-
