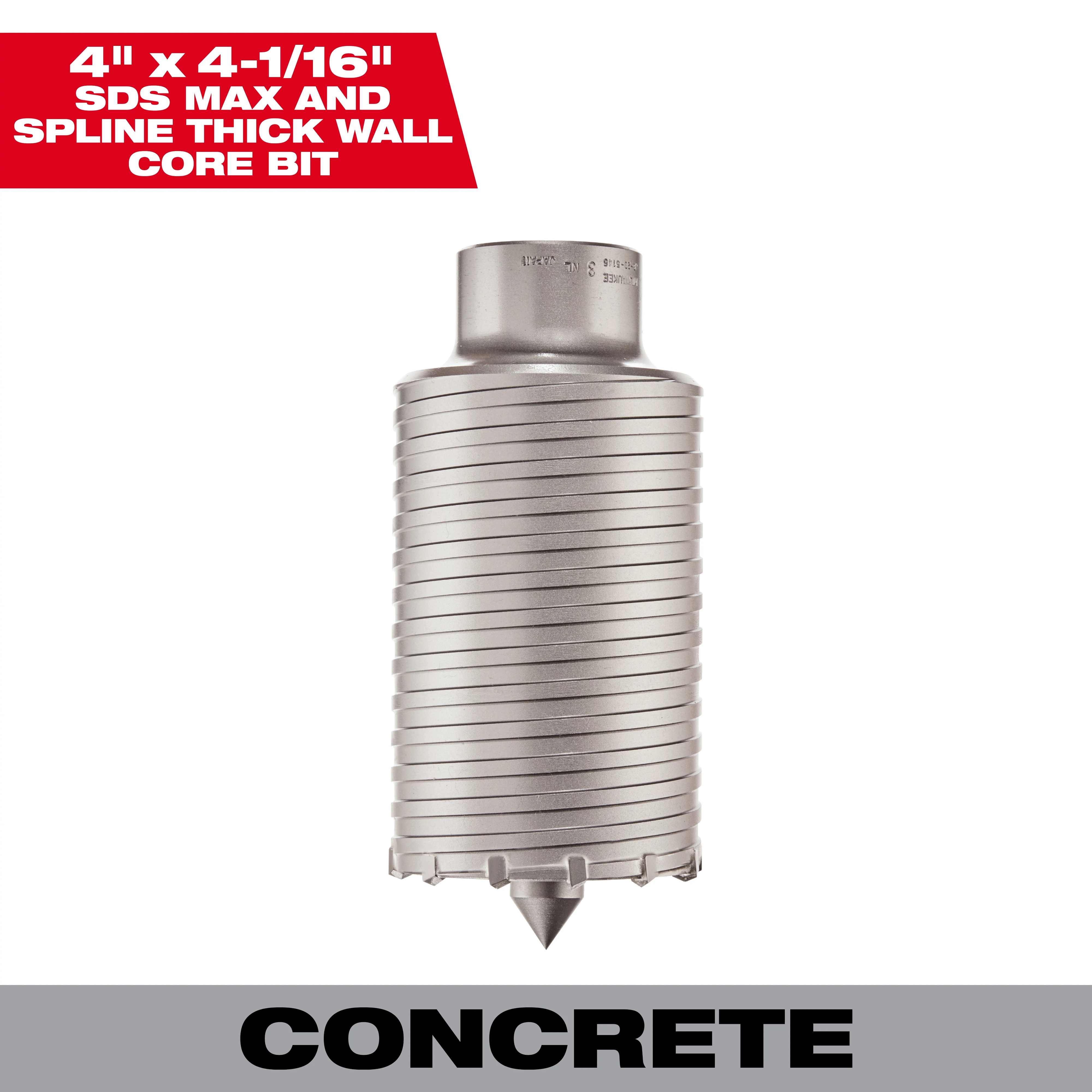

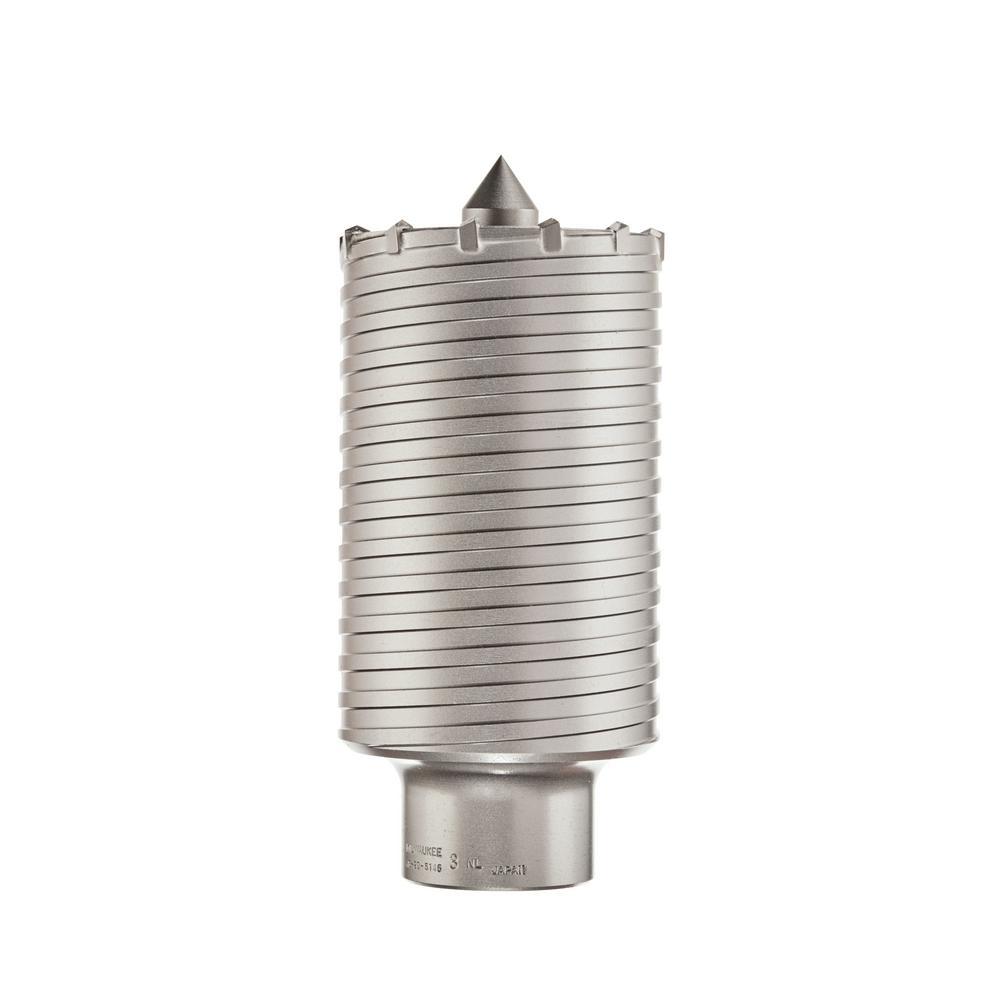

Milwaukee® 48-20-5155 Heavy Duty Thick Wall Core Bit, 4 in Drill - Fraction, 4 in Drill - Decimal Inch
Milwaukee's core bits are ideal for large hole drilling where depth is relatively shallow. The core bit cuts a Kerf only. The usable depth of thick wall core bits is 4-3/8 in. The inside core must be removed by the operator before deeper drilling can be accomplished. The thick wall construction is ideal for larger hammers and more seasoned/cured concrete. A 7-1/2 in. extension is available to allow for the deeper holes to be drilled. The appropriate (Dependant on the diameter) Spline drive shank must be used to drive the core bit. Use 48-20-5199 center pin and 48-20-5174 guide plate for positioning and starting the hole. Thick wall core bits are available from 1 in. to 6 in. diameters. See thin wall core bits for less expensive drilling in new concrete and/or smaller hammers.
-
BrandMilwaukee®
-
UPC045242106158
-
Manufacturer Part Number48-20-5155
-
CountryUSA|Canada
-
TypeHeavy Duty
-
Applicable MaterialsBlock, Brick and Concrete
-
Cutting Depth4-3/8 in
-
Shank Size12/18 in L
-
Cutting Edge MaterialCarbide
-
Shank TypeSDS Max®/Spline
-
Drill Size - Decimal Inch4 in
-
Drill Size - Fraction4 in
- Usable Cuting Depth 4-1/16 in
- Usable cutting depth 4-1/16 in
- Use with 12 in or 18 in spline adapter shanks (48-03-3564, 48-03-3565) and 12 in or 18 in SDS-Max adapter shanks (48-03-3572, 48-03-3573)
- Use with 7-1/2 in extension 48-95-6085
- Use with guide plate 48-20-5176 and centering pin 48-20-5199
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | PD5048205155 |
| Grainger | 1Y653 |
| MSC | 67118539 |
-
Alternative Part Number8576408
-
UNSPSC20121607
-
IDEA Index ID8576408
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant
-
WarrantyNo Warranty
-
Owners/User Manual
