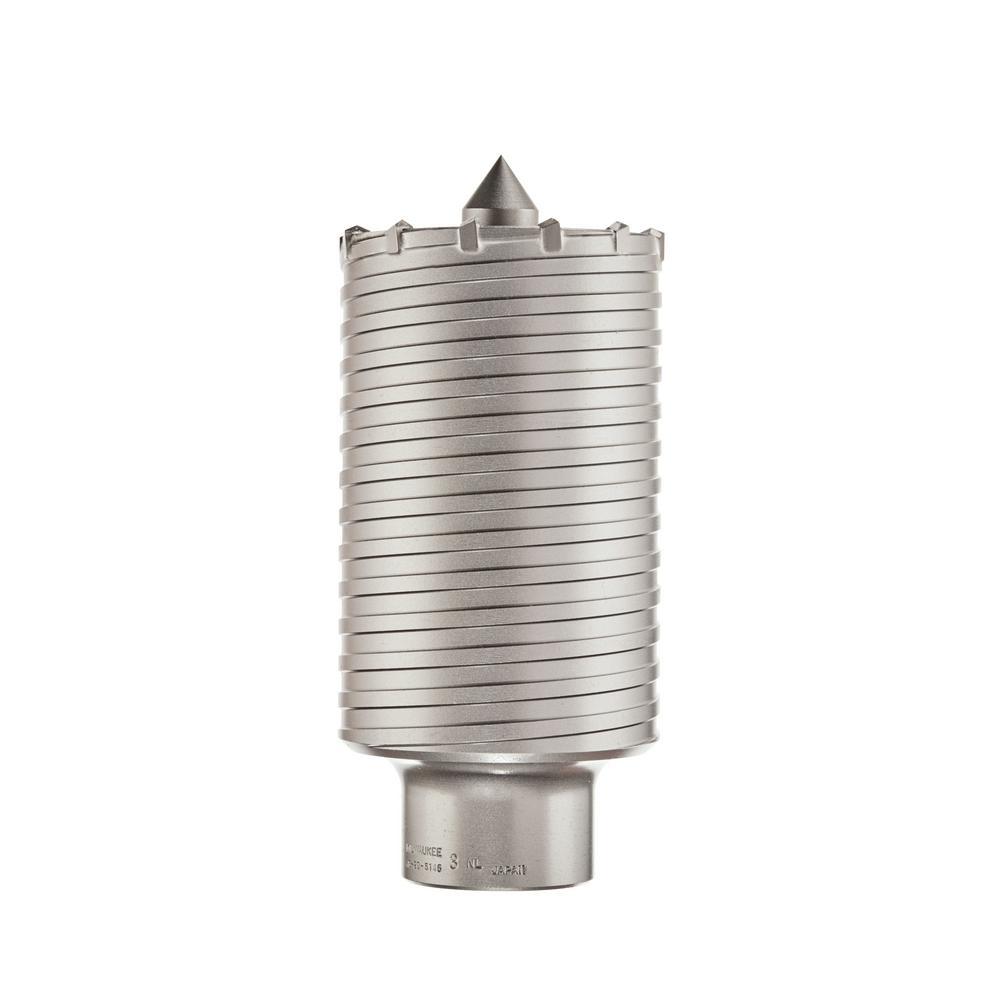

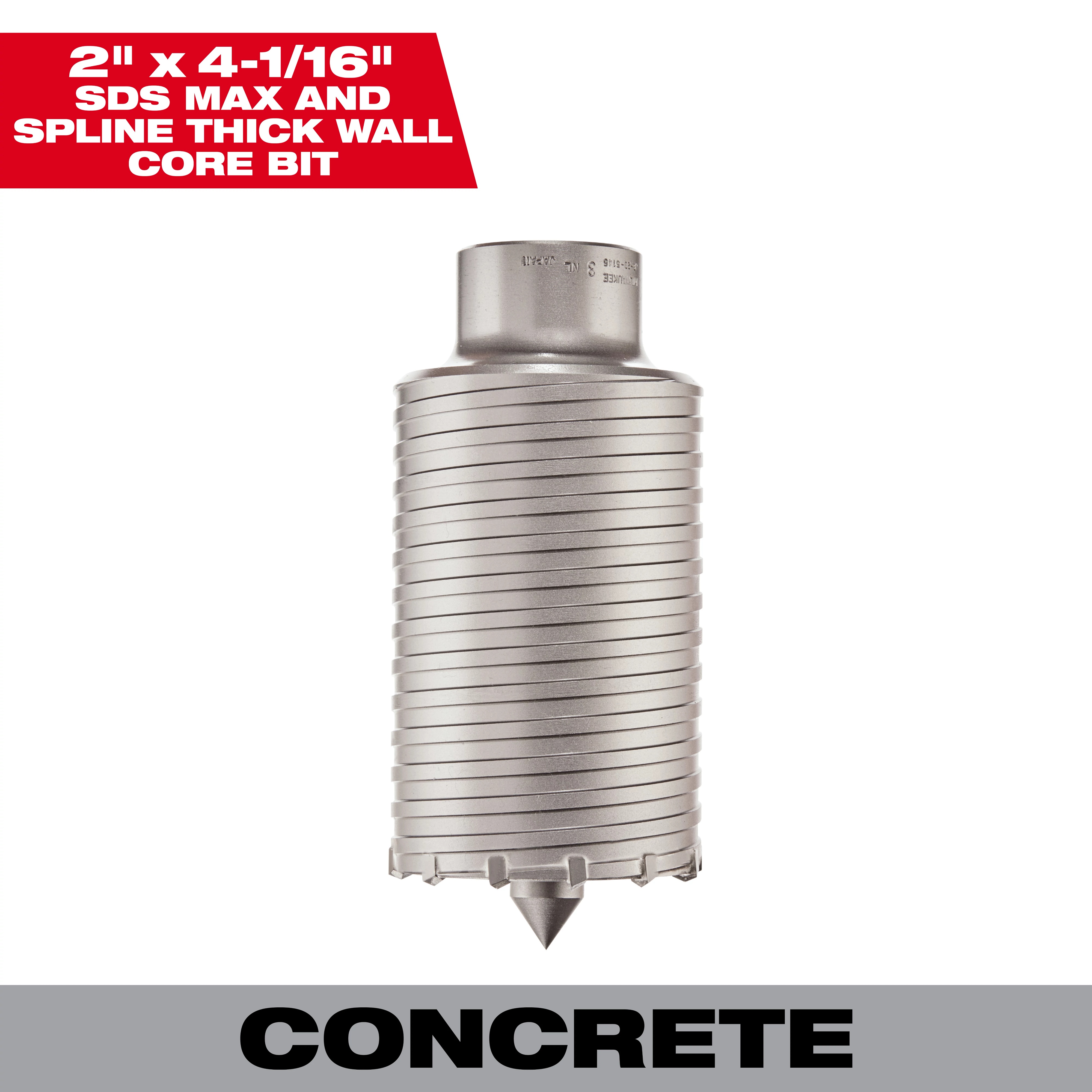

Milwaukee® 48-20-5135 Heavy Duty Thick Wall Core Bit, 2 in Drill - Fraction, 2 in Drill - Decimal Inch
Milwaukee®'s SDS Max and Spline thick wall core bits are used for drilling large through holes into brick, block, concrete. Includes core bit, guide plate, and centering pin.
-
BrandMilwaukee®
-
UPC045242105953
-
Manufacturer Part Number48-20-5135
-
CountryUSA|Canada
-
TypeHeavy Duty
-
Applicable MaterialsBlock, Brick and Concrete
-
Cutting Depth4-3/8 in
-
Shank Size12/18 in L
-
Cutting Edge MaterialCarbide
-
Shank TypeSDS Max®/Spline
-
Drill Size - Decimal Inch2 in
-
Drill Size - Fraction2 in
- Usable Cuting Depth 4-1/16 in
- 2 in diameter
- Usable cutting depth 4-1/16 in
- Use with 12 in or 18 in spline adapter shanks (48-03-3564, 48-03-3565) and 12 in or 18 in SDS-Max adapter shanks (48-03-3572, 48-03-3573)
- Use with 7-1/2 in extension 48-95-6085
- Use with guide plate 48-20-5170 and centering pin 48-20-5199
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | PD5048205135 |
| Grainger | 1Y649 |
| MSC | 98405988 |
-
Alternative Part Number8576375
-
UNSPSC20121607
-
IDEA Index ID8576375
-
IncludesCore Bit, Guide Plate and Centering Pin
-
Package DescriptionEACH
-
WarrantyNo Warranty
-
Owners/User Manual
