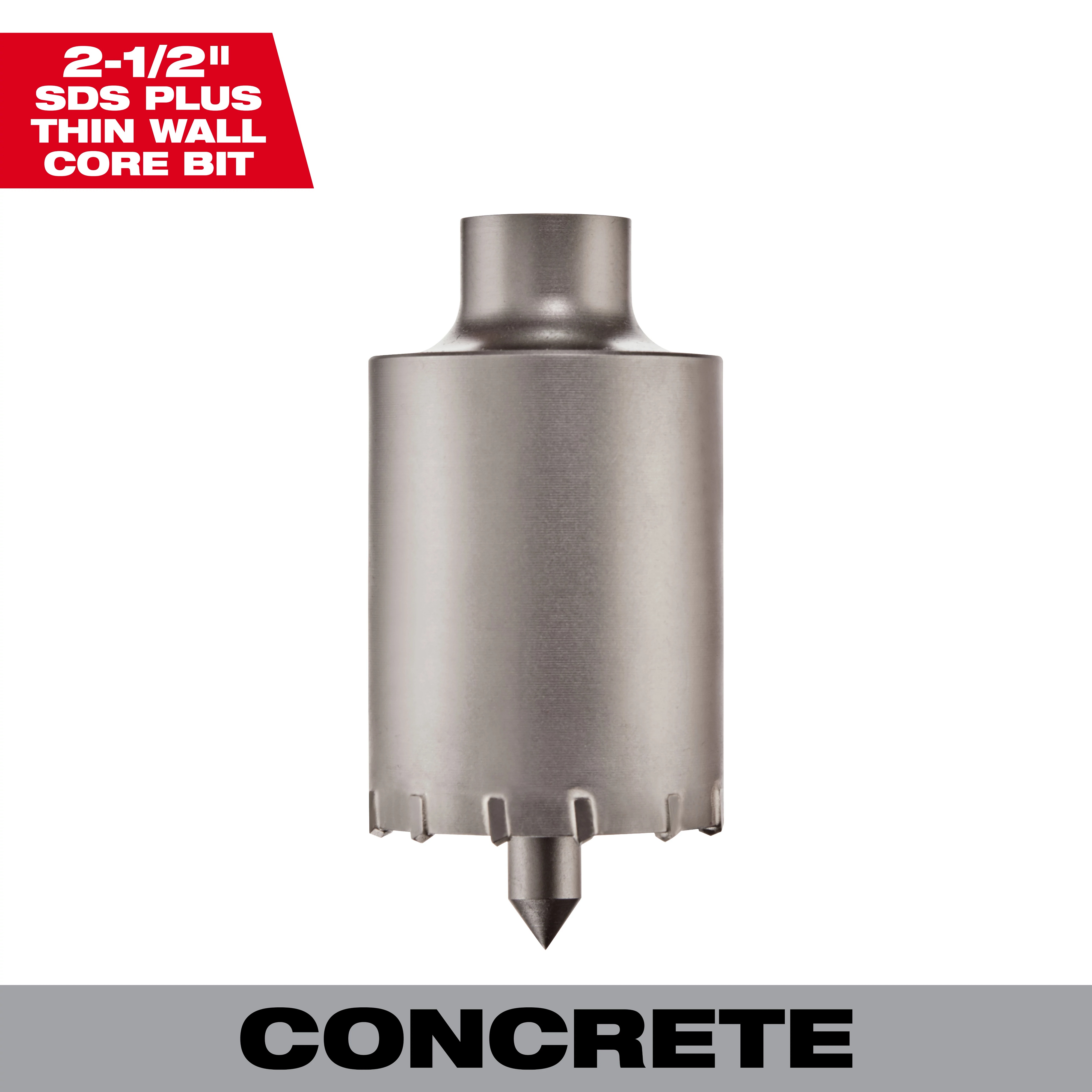

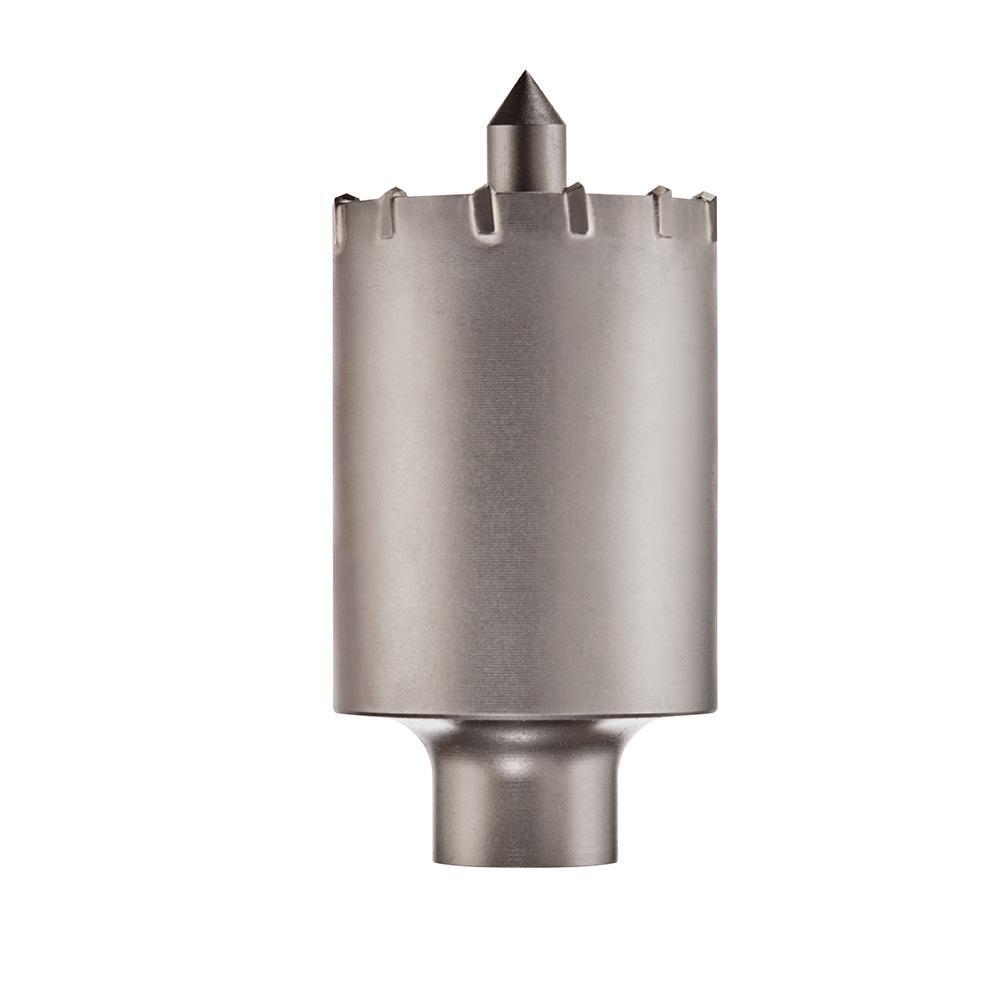

Milwaukee® 48-20-5040 Heavy Duty Thin Wall Core Bit, 2-1/2 in Drill - Fraction, 2.5 in Drill - Decimal Inch
Milwaukee's Carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a Kerf only. The usable depth of thin wall core bits ranges from 2-13/16 in. to 3-3/16 in. The thin wall construction is ideal for smaller hammers and newer concrete. The inside core must be removed by the operator before deeper drilling can be accomplished. Multiple extensions and adapters are available to allow for deeper holes to be drilled. The appropriate drive shank must be used to drive the core bit. Use of center pin and guide plate is recommended for positioning and starting a 1-1/4 in. hole and larger. Use of center pin and guide plate is not recommended for positioning and starting a 1-1/8 in. hole or smaller. Milwaukee Carbide tipped core bits are available from 1 in. to 6 in. diff. Includes core bit centering pin and guide plate.
-
BrandMilwaukee®
-
UPC045242105359
-
Manufacturer Part Number48-20-5040
-
CountryUSA|Canada
-
TypeHeavy Duty
-
Applicable MaterialsBlock, Brick and Concrete
-
Cutting Depth3 in
-
Shank Size8/12 in L
-
Cutting Edge MaterialCarbide
-
Shank TypeSDS Plus®
-
Drill Size - Decimal Inch2.5 in
-
Drill Size - Fraction2-1/2 in
- Usable Cuting Depth 2-13/16 in
- Use with SDS core bit shank 48-03-3555 (8 in) or 48-03-3561 (12 in)
| Competitor Name | Competitor Part Number |
|---|---|
| Berkshire eSupply | PD5048205040 |
| Grainger | 45L409 |
-
Alternative Part Number8576196
-
UNSPSC20121607
-
IDEA Index ID8576196
-
IncludesCore Bit, Guide Plate and Centering Pin
-
Package DescriptionEACH
-
WarrantyNo Warranty
