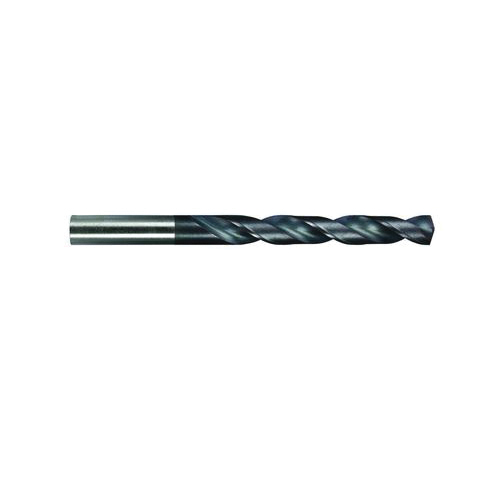

MORSE® 93784 2330T Type J Aircraft Heavy Duty Jobber Length Drill, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 135 deg Point Angle, M42 Cobalt
MORSE® 93784 2330T Type J Aircraft Heavy Duty Jobber Length Drill, 1/8 in Drill - Fraction, 0.125 in Drill - Decimal Inch, 135 deg Point Angle, M42 Cobalt
-
BrandMORSE®
-
UPC686125937843
-
Manufacturer Part Number93784
-
CountryUSA
-
FinishAlTiN Coated
-
Point Angle135 deg
-
Point TypeSplit
-
MaterialM42 Cobalt
-
Flute Length1-5/8 in
-
Flute TypeStandard
-
TypeType J Aircraft Heavy Duty
-
Applicable MaterialsHigh Alloy Steel, Ferrous Casting, Titanium, Inconel, Stainless Steel and Other Difficult to Drill Materials
-
Series2330T
-
Cutting Depth1-5/8 in
-
Shank Size1/8 in
-
Cutting Edge MaterialM42 Cobalt
-
Shank TypeStraight
-
Drill Size - Decimal Inch0.125 in
-
Drill Size - Fraction1/8 in
-
Overall Length2-3/4 in
- 135 deg self-centering split point eliminates "walking" and reduces thrust
- Cobalt steel offers increased hardness, toughness, wear resistance and heat resistance
- ALTiN - aluminum titanium nitride coating increases surface hardness, wear resistance, heat resistance, chip flow and resists chip welding
- For a wide range of materials including abrasive and tough materials that generate higher cutting temperatures
-
UNSPSC23241606
-
Package Description1/PK
-
Standards/ApprovalsNAS 907
-
