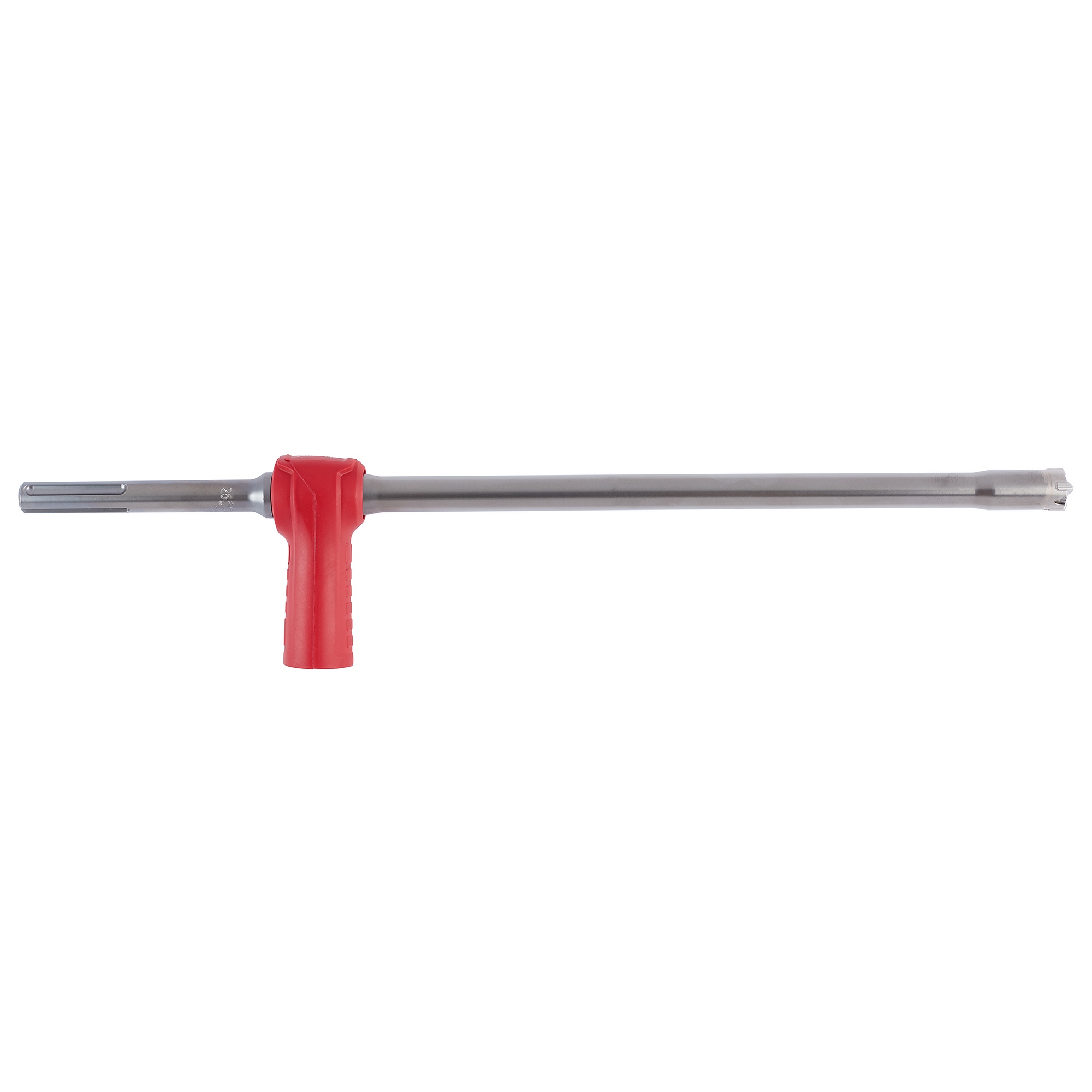

Milwaukee® 48-20-2164 4-Cutter Vacuum Drill Bit, 1 in Drill Bit, 18 mm SDS-Max Shank, 17-1/2 in D Cutting, 25 in OAL

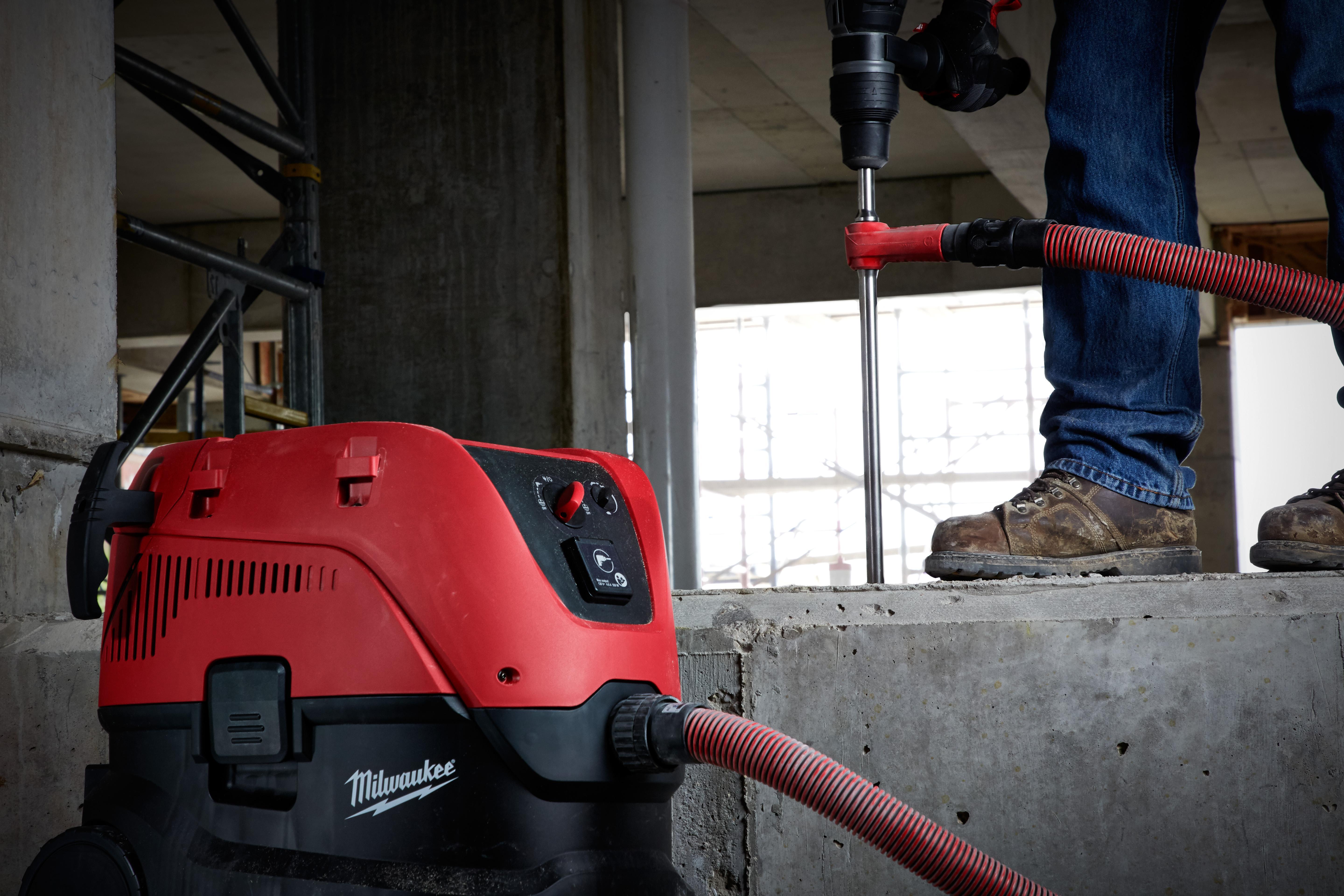

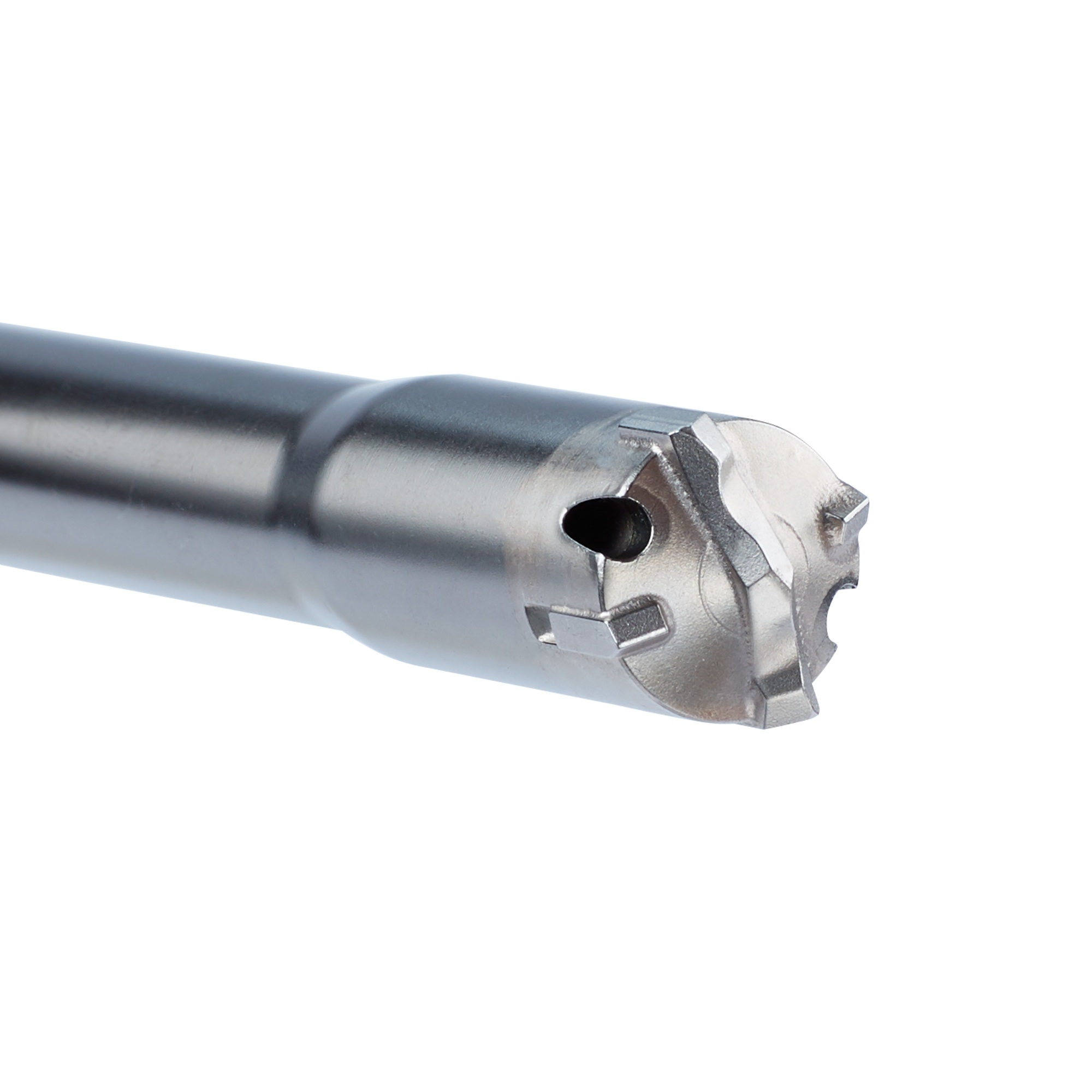

The Milwaukee® vacuum drill bits reduce airborne silica dust and provide increased productivity during the chemical anchor preparation process. The combination of dust extraction holes at the bit tip and the hollow shaft design allow dust to be removed through the bit while drilling holes, reducing airborne silica dust in the process. Milwaukee® Vacuum drill bits are an OSHA table 1 compliant solution when used with dust extraction vacuums. Additionally, vacuum drill bits leave clean holes which are ready for the chemical anchor installation, removing the need to use standard drill bits with the blow-brush-blow cleaning method, delivering up to 2x faster chemical anchor preparation. The 4-cutter tip designs delivers durability in concrete and concrete with rebar applications. The universal adapter fits most common dust extractor attachments.
-
BrandMilwaukee®
-
UPC045242506989
-
Manufacturer Part Number48-20-2164
-
CountryUSA|Canada
-
Point TypeChisel
-
MaterialCarbide
-
Flute Length1 in
-
Type4-Cutter
-
Applicable MaterialsBlock, Brick and Concrete
-
Number of Flutes4
-
Cutting Depth17-1/2 in
-
Shank Size18 mm
-
Shank TypeSDS-Max
-
Drill Bit Size1 in
-
Overall Length25 in
- Dust extraction holes remove dust from the hole while drilling
- Universal adapter fits most common dust extractor vacuums
- Up to 2x faster chemical anchor preparation due creating a clean hole while drilling
- Use in SDS-Plus Rotary Hammers in rotary hammer mode
- Use in SDS-Plus Rotary Hammers in rotary hammer mode
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 366Y03 |
-
Alternative Part Number14195958
-
UNSPSC20111614
-
IDEA Index ID14195958
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B212.15|OSHA Table 1 29 CFR 1926.1153|CSA Approved
-
WarrantyNo Warranty
-
Specification Sheet
