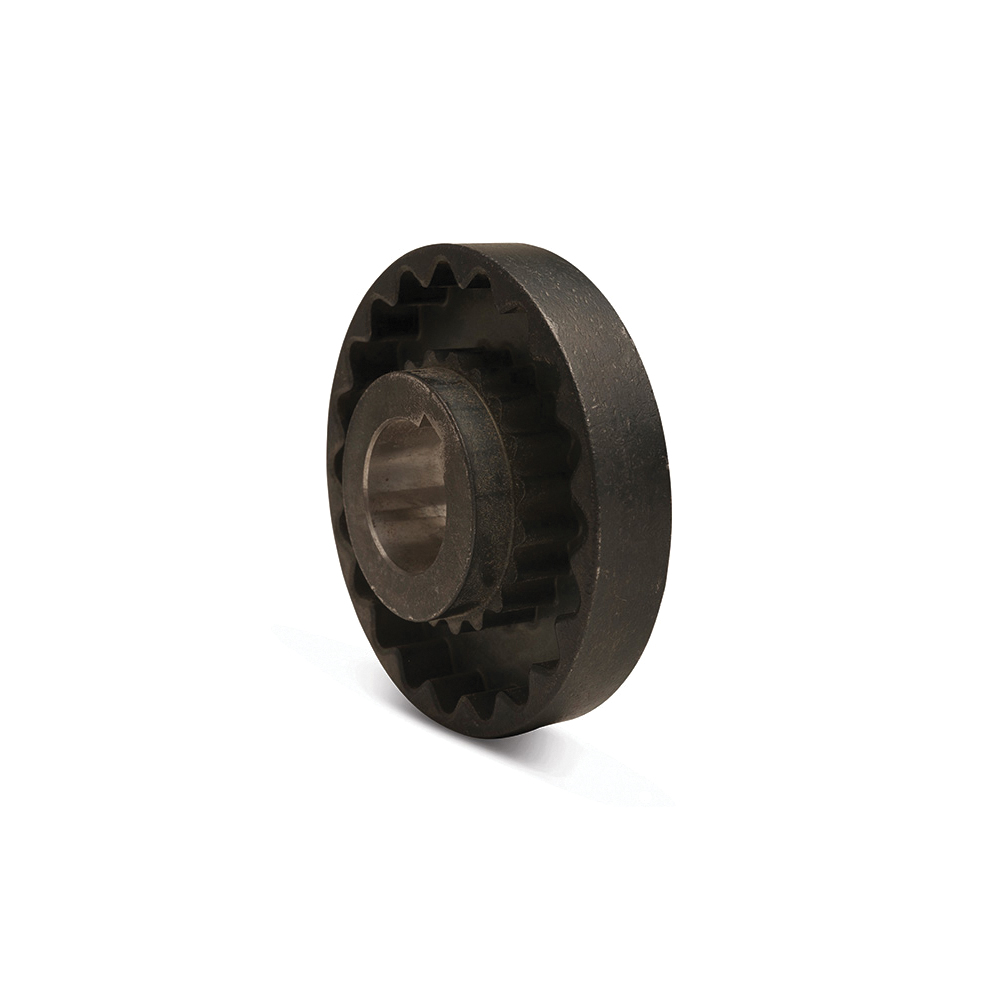

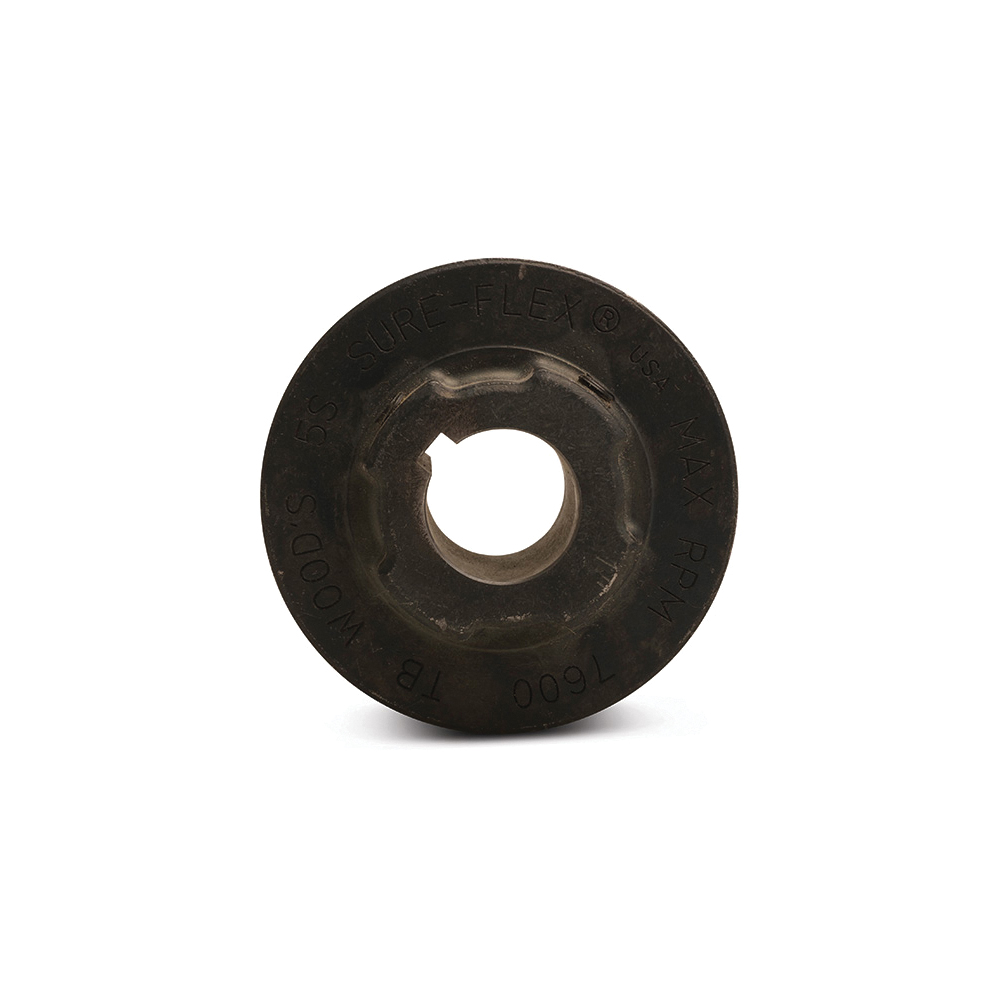

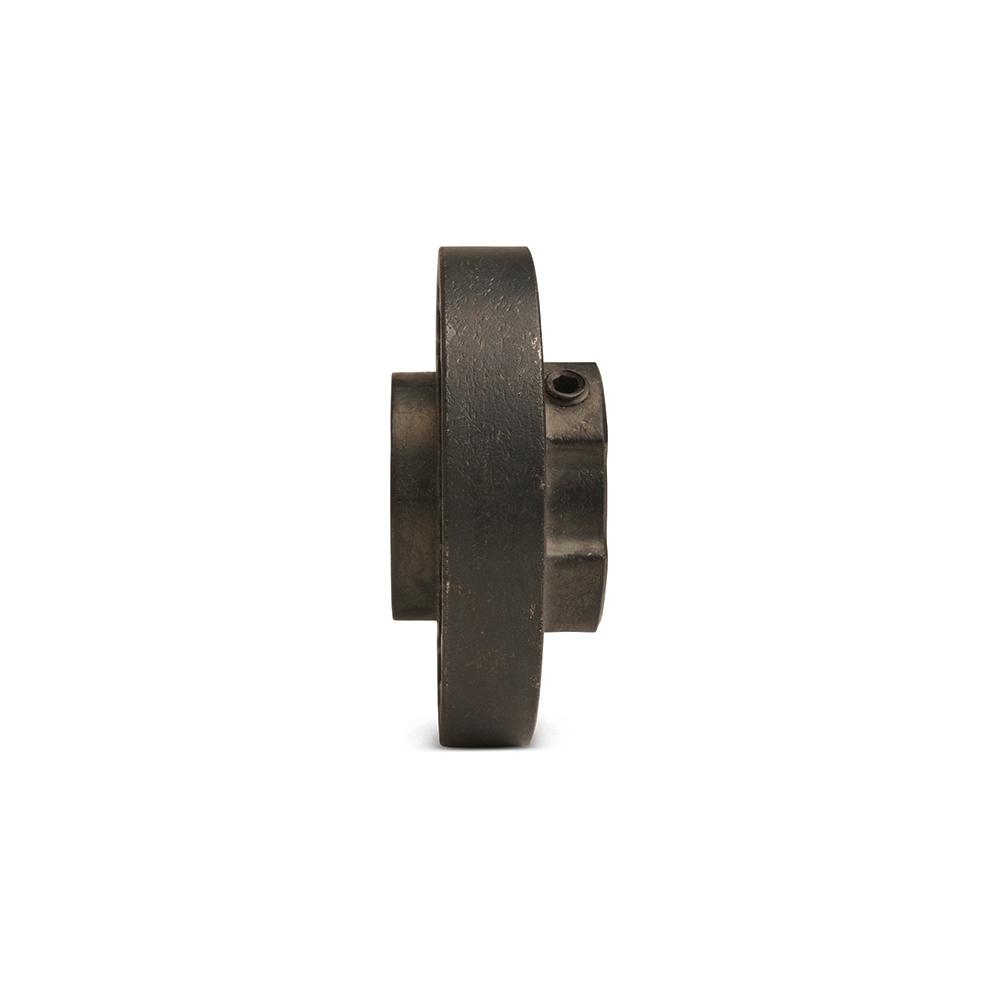

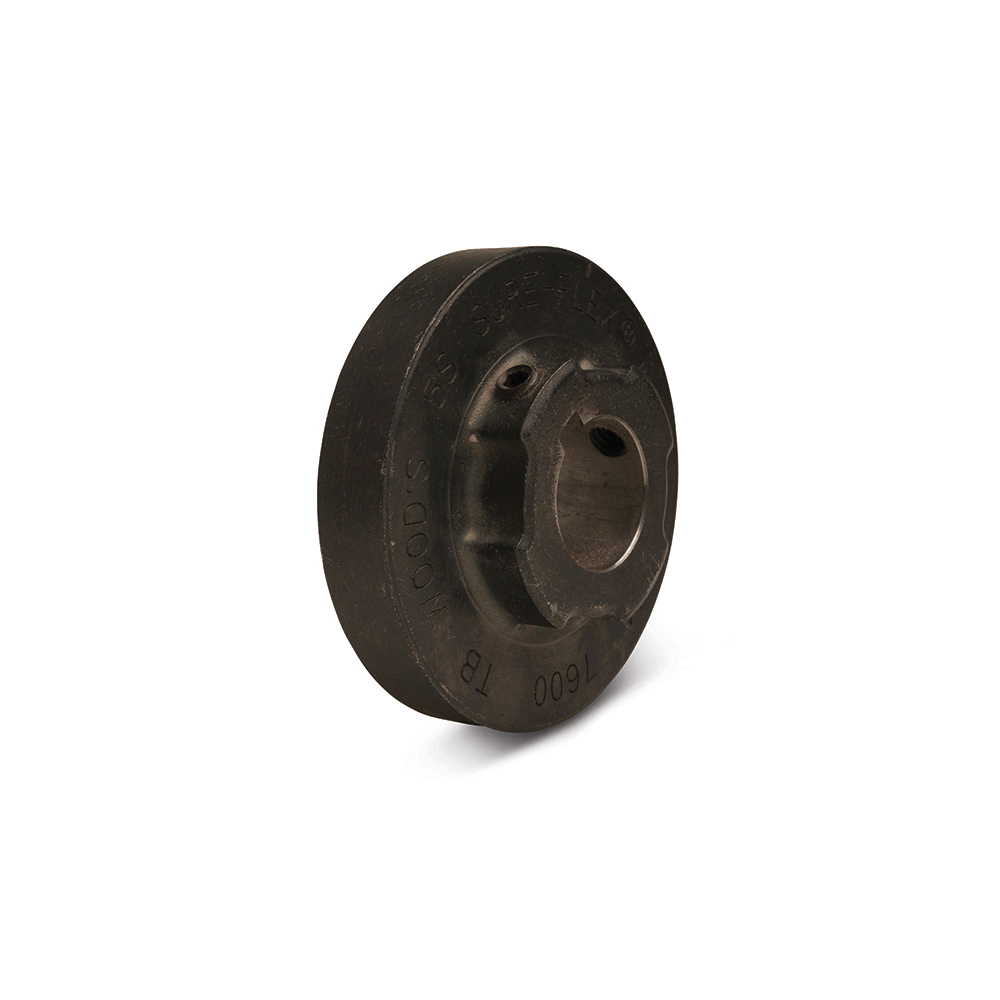

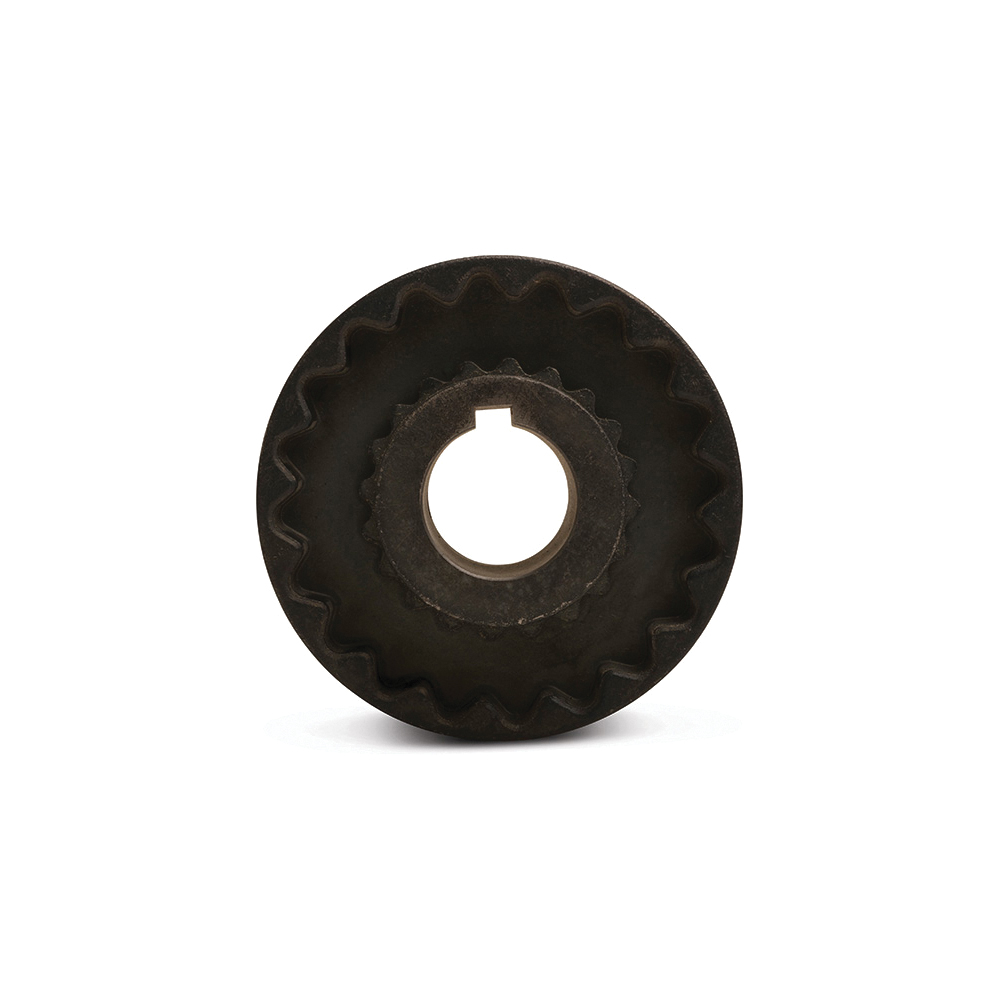

TB Wood's® Sure-Flex® Plus 5S1 Bore-To-Size Type S Sleeve Coupling Flange, 05 Coupling, 1 in Bore Dia, 1-11/32 in Length Through Bore, 1-7/8 in Hub Dia, Sintered Carbon Steel
Type S flanges sizes 6 through 16 are manufactured of high strength cast iron then bored-to-size for slip fit on standard shafts. Size 5 is made of sintered carbon steel. Flanges are easy to install and remove, and are stocked in a wide range of bore sizes. All sleeve materials may be used with type S flanges.
-
BrandTB Wood's®
-
UPC698672640077
-
Manufacturer Part Number5S1
-
CountryUSA
-
MaterialSintered Carbon Steel
-
Maximum Speed7600 rpm
-
TypeBore-To-Size Type S
-
Screw Size5/16-18 UNC x 5/16 in L Setscrew
-
Coupling Size05
-
Hub Diameter1-7/8 in
-
Hub Length29/64 in
-
Keyway Size1/4 x 1/8 in
-
Length Through Bore1-11/32 in
-
Bore Diameter1 in
-
UNSPSC31163000
-
Includes(2) Setscrew
-
Standards/ApprovalsATEX Compliant|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Catalog
-
Instruction/Installation Manual
