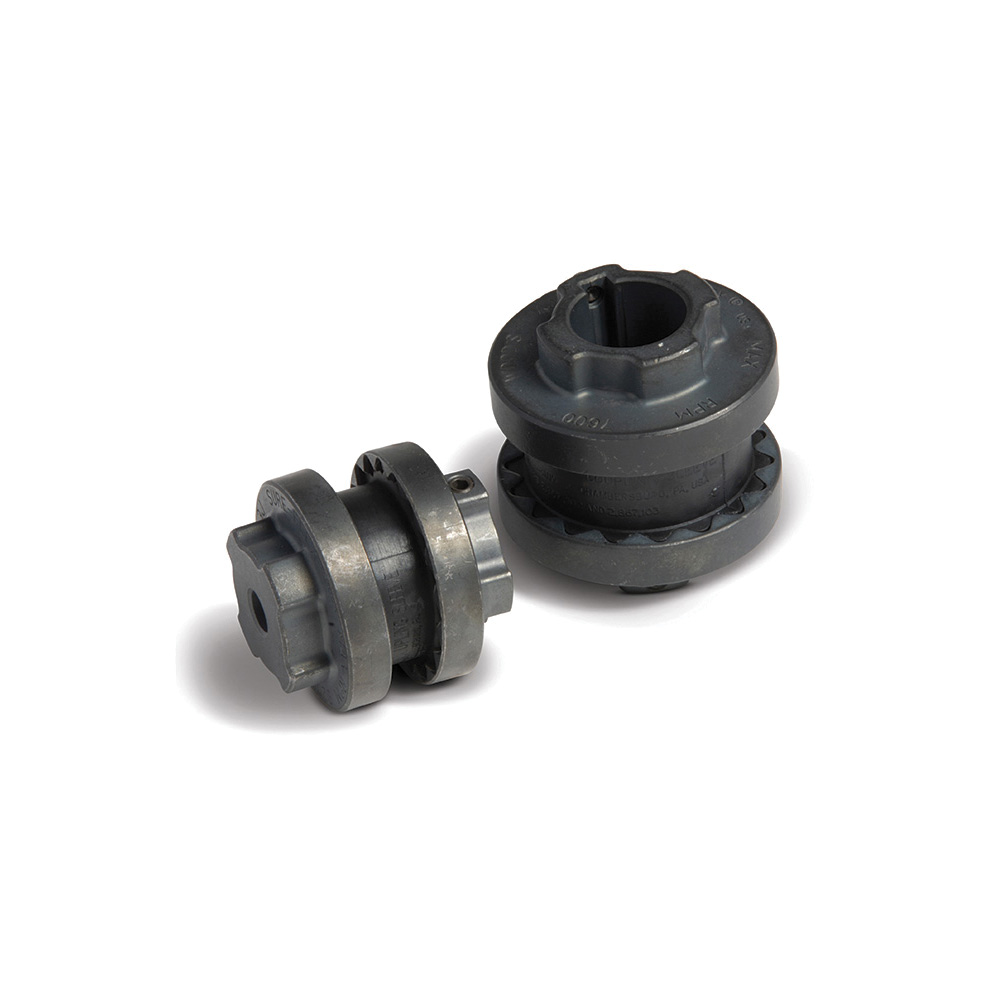

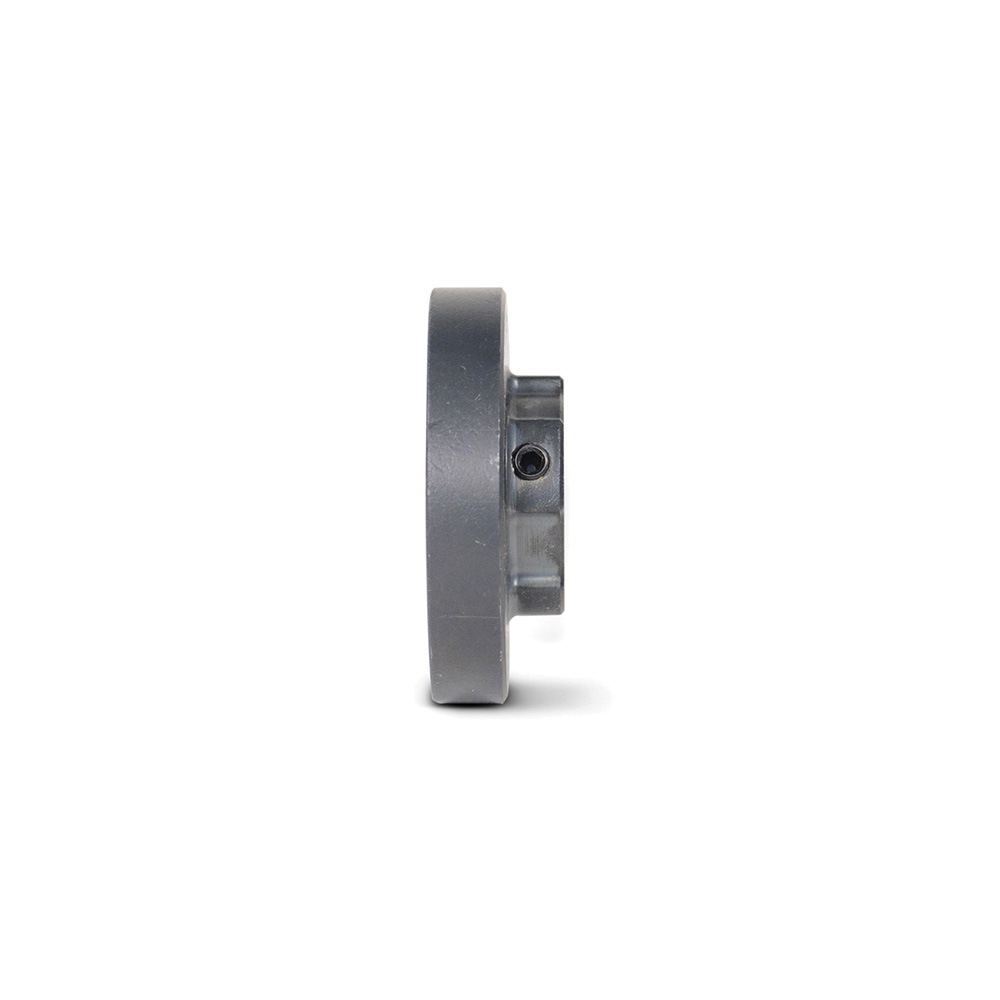

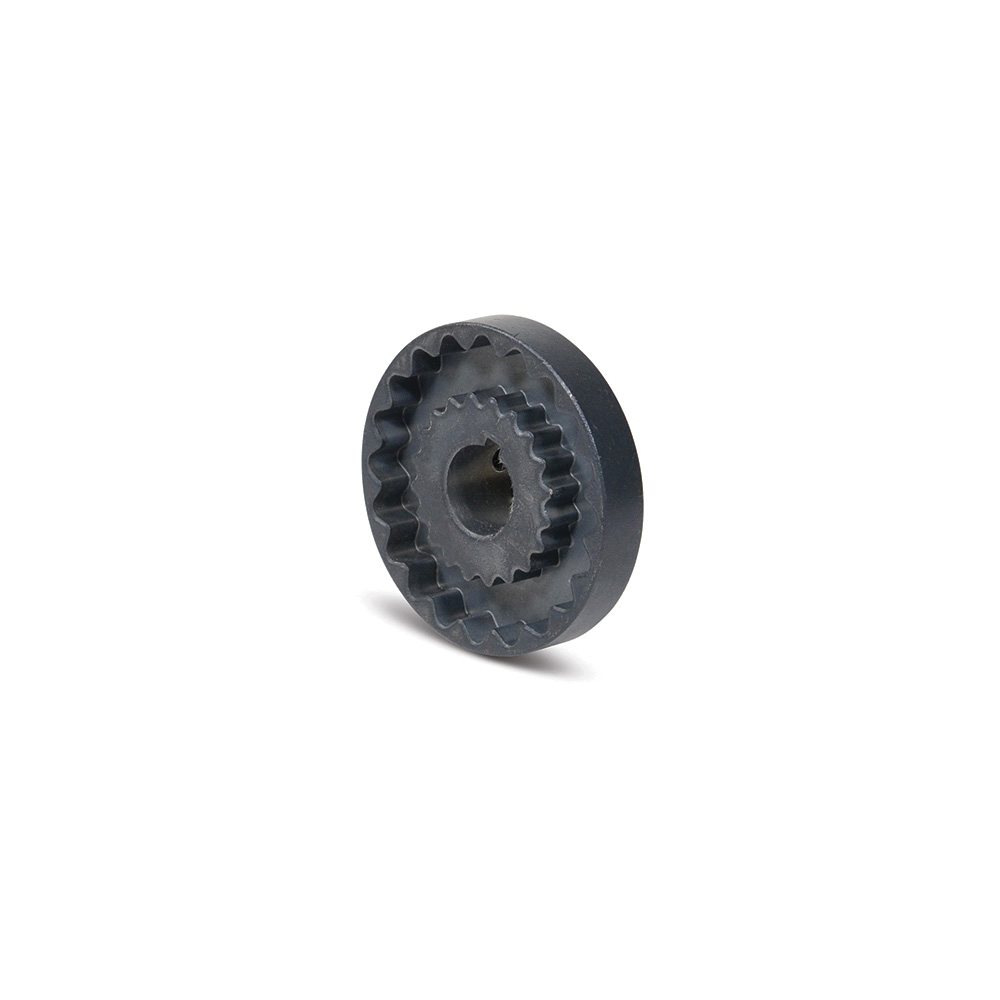

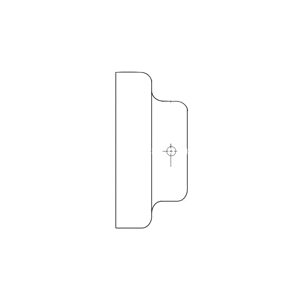

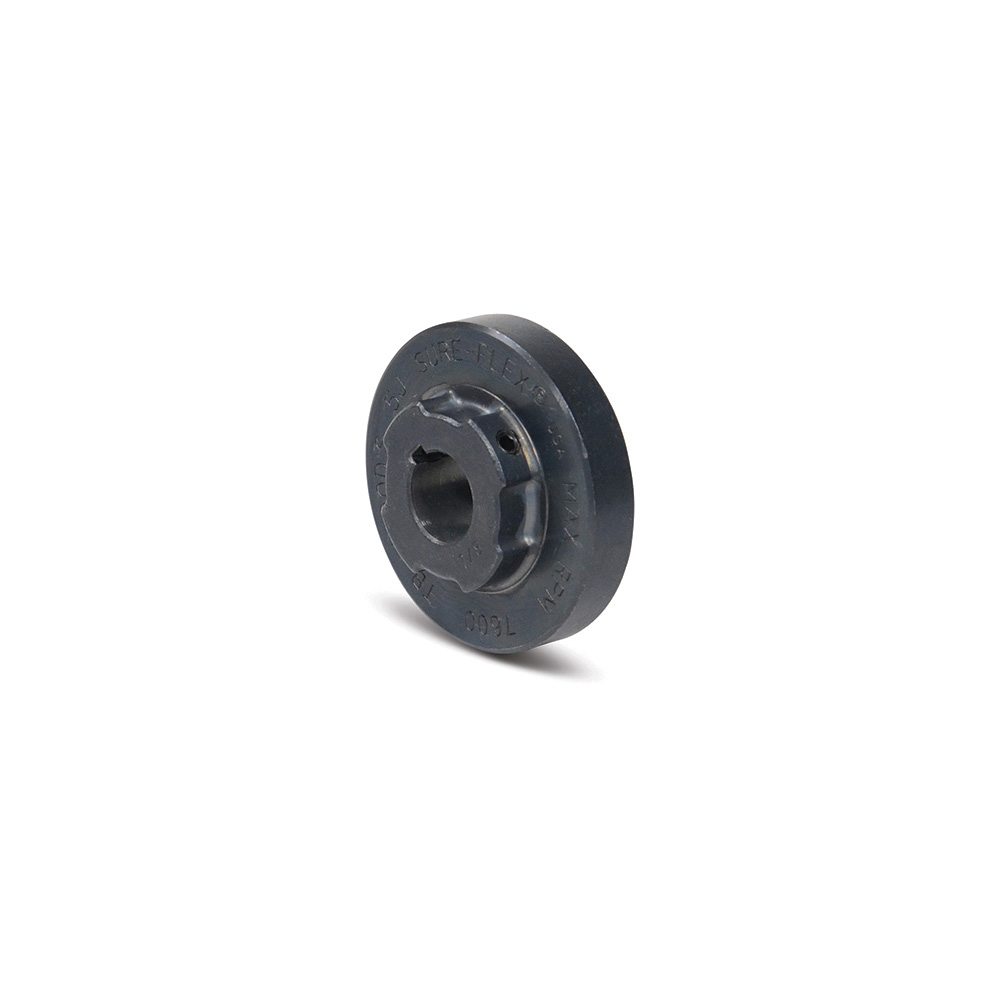

TB Wood's® Sure-Flex® Plus 4J34 Bore-To-Size Type J Sleeve Coupling Flange, 04 Coupling, 3/4 in Bore Dia, 55/64 in Length Through Bore, 1-5/8 in Hub Dia, Sintered Carbon Steel
Type J flanges sizes 3, 4 and 5 are manufactured of sintered carbon steel. The powdered metal manufacturing process provides high dimensional accuracy and uniform material properties for high strength. Size 6 is made of high strength cast iron. Flanges are bored-to-size for a slip fit on standard shafts. The outside face of the flange is precision machined, allowing the surface to be used to align the coupling without special tools.
-
BrandTB Wood's®
-
UPC698672620086
-
Manufacturer Part Number4J34
-
CountryUSA
-
MaterialSintered Carbon Steel
-
Maximum Speed7600 rpm
-
TypeBore-To-Size Type J
-
Screw Size1/4-20 UNC x 5/16 in L Setscrew
-
Coupling Size04
-
Hub Diameter1-5/8 in
-
Hub Length27/64 in
-
Keyway Size3/16 x 3/32 in
-
Length Through Bore55/64 in
-
Bore Diameter3/4 in
- Type J flanges can be used with EPDM and neoprene sleeves
- Each flange has a standard keyway, one setscrew over the keyway and one setscrew at 90 deg from the keyway
-
UNSPSC31163000
-
Includes(2) Setscrew
-
Standards/ApprovalsATEX Compliant|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Instruction/Installation Manual
-
Catalog
