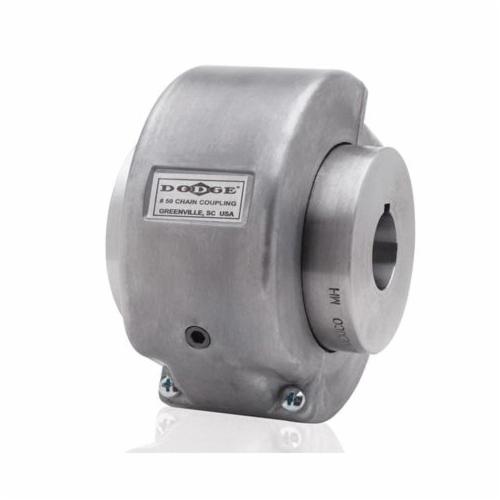

Dodge® 099103 Finished Bore Chain Coupling Flange, 40 Chain, 3/4 in Dia Bore, 16 Teeth, 3.03 in OD, 1.97 in Dia Hub, Steel
Dodge® Chain Couplings offer a simple, widely accepted and inexpensive way to couple two shafts. They are interchangeable with industry standard dimensions. Dodge® Chain Couplings can be provided with Taper-Lock bushed hubs, finished bore or reboreable flanges. Chain coupling covers and chain assemblies are also available from stock.
-
BrandDodge®
-
UPC782475046830
-
Manufacturer Part Number099103
-
CountryUSA
-
MaterialSteel
-
Chain Number40
-
Maximum Speed875 rpm (Without Cover)/5000 rpm (With Cover)
-
TypeFinished Bore
-
Hub Diameter1.97 in
-
Hub Length1.13 in
-
Number of Teeth16
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter3.03 in
-
Length Through Bore2.53 in
-
Bore Diameter3/4 in
- Shaft attachment flexibility
- High torque capability
- Compact drive design
- Low operating cost
- Broad product line
- Hardened tooth sprockets
- Double width roller chain
- Link pin connections for easy installation or removal
- Aluminum covers and rubber seals protect from contamination for extended life
- Interchangeable with industry standard dimensions
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100943933 |
| Applied Industrial Technologies | 100943933 |
-
Alternative Part NumberFB4016 X 3/4
-
UNSPSC31163012
-
Includes(2) Hubs, (1) Chain Assembly and (1) Cover Assembly
-
Package Description1/PK
-
Standards/ApprovalsAGMA|ANSI|AFBMA|ASAMMA|BSA|CMA|MPTA|PTDA Standards|UL Listed
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
