2" X 10' ELEC/RIDGID METAL CONDUIT JWH 506702

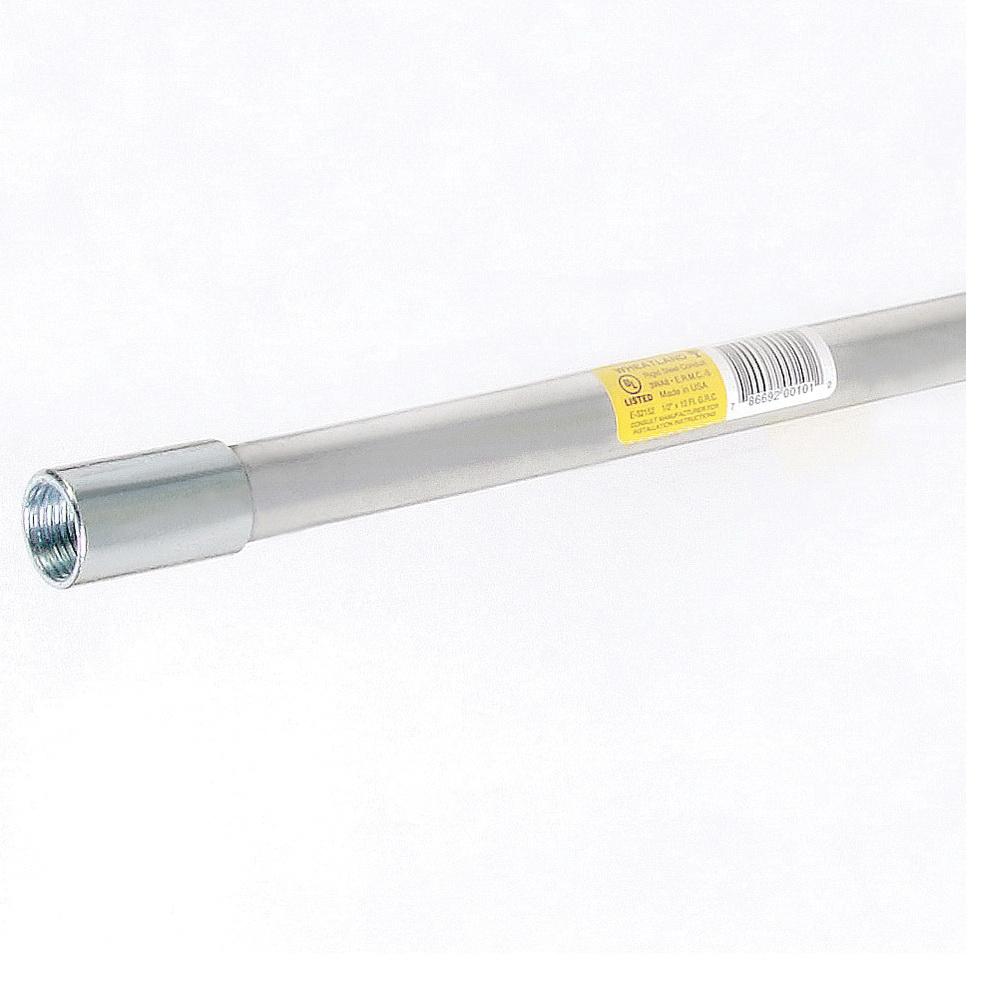

Wheatland 544310000 Threaded Rigid Metal Conduit, 2 in Trade, 2.083 in ID x 2-3/8 in OD, 10 ft L, Steel
-
BrandWheatland
-
UPC786692001067
-
Manufacturer Part Number544310000
-
CountryUSA
-
FinishHot-Dipped Galvanized/Clear
-
Thickness0.146 in
-
MaterialSteel
-
Trade Size2 in
-
ColorGray/Silver
-
TypeThreaded
-
Inside Diameter2.083 in
-
Outside Diameter2-3/8 in
-
Length10 ft
- Hot-dip galvanized OD and ID, RMC recognized as as equipment grounding conductor by the NEC
- Couplings produced in house
- Conduit threaded on both ends
- Coupling supplied on one end, color coded thread protector on other end
- Accurate circular cross section with uniform wall thickness
- Interior surface free from defects injurious to conductors
-
Alternative Part Number8958869
-
UNSPSC39131706
-
IDEA Index ID8958869
-
Package Description1 FT
-
Standards/ApprovalsUL 6|UL File No. E32152|CSA C22.2 45|ANSI C 80.1|Federal Specification WW-C-581
-
WarrantyLimited
-
