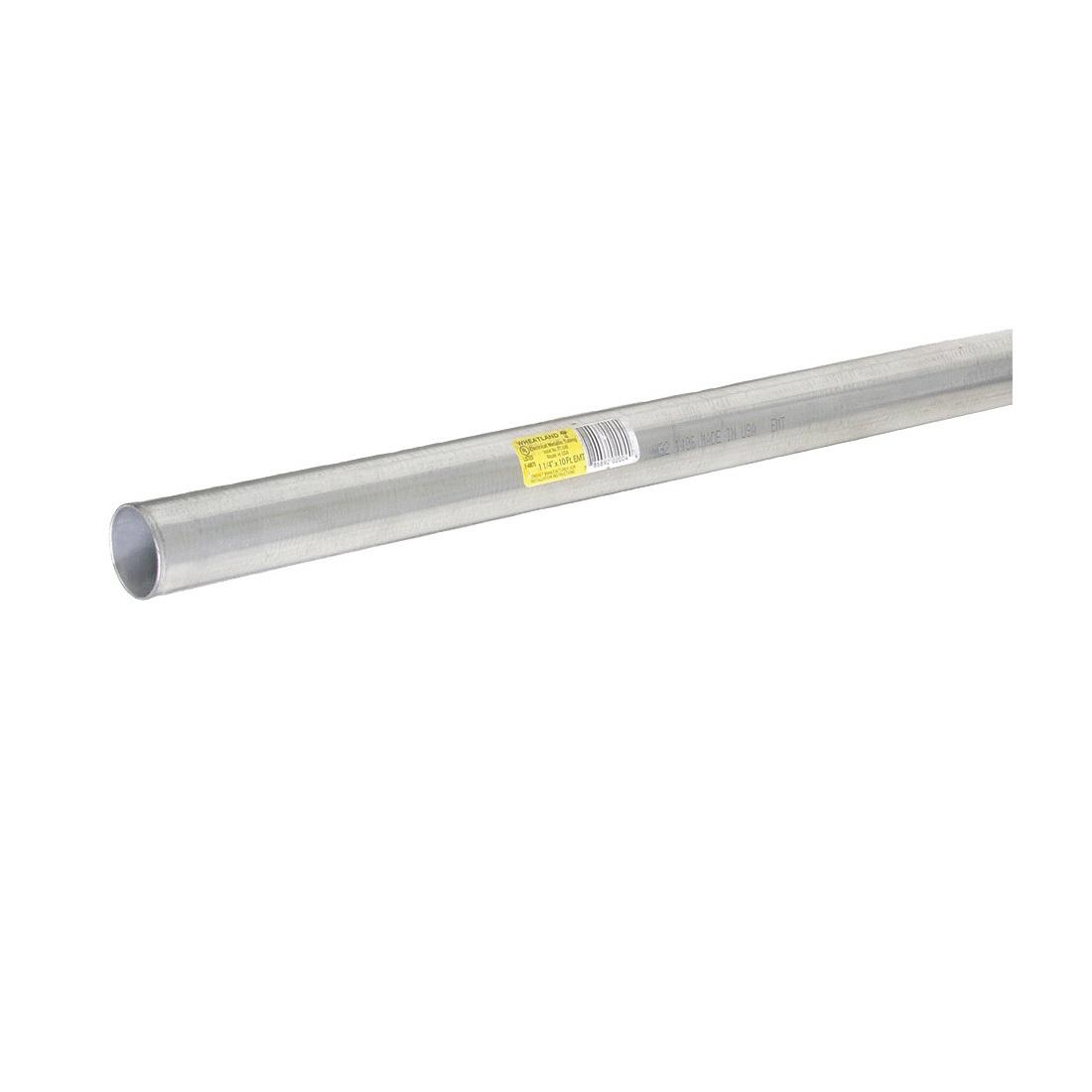

Wheatland FasTrak™ Plus 550410000 Electrical Metallic Tubing, 1-1/2 in Trade, 1.61 in ID x 1.74 in OD, 10 ft L, Steel
Wheatland Tube manufactures steel EMT in America, using the latest technology and protocols to ensure the highest quality. Our proprietary smooth ID coating ensures up to 20% faster wire pulling. The light-wall EMT's mechanical properties allow for easy hand bending on small sizes and a smooth bend on intermediate and larger sizes. It's the ideal solution.
-
BrandWheatland
-
UPC786692020051
-
Manufacturer Part Number550410000
-
CountryUSA|Canada
-
FinishClear/Galvanized
-
Thickness0.065 in
-
MaterialSteel
-
Trade Size1-1/2 in
-
ColorGray/Silver
-
Inside Diameter1.61 in
-
Outside Diameter1.74 in
-
Length10 ft
- In-line galvanized OD and epoxy modified acrylic ID, EMT recognized as equipment grounding conductor by the NEC
- Accurate circular cross section with uniform wall thickness
- Interior surface free from defects injurious to conductors
- Easy to install
- Proprietary ID coating for fast wire pulling performance
- A lightweight, smooth pull wiring solution, easy to bend, yet tough enough for all locations
| Cross-Reference Number |
|---|
| 507179 |
-
Alternative Part Number8958967
-
UNSPSC39131719
-
IDEA Index ID8958967
-
Package Description1 FT
-
Standards/ApprovalsANSI C 80.3|CSA C22.2 No. 83.1|UL 797 File No. E48675
-
WarrantyLimited
-
SDS
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Owners/User Manual
