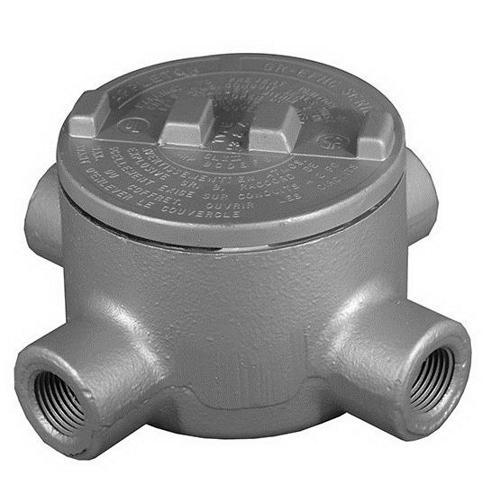

Appleton® UNILETS® GRX50 X-Style Dust-Ignitionproof Explosionproof Conduit Outlet Box With Cover, 1/2 in, 3.38 in Cover Opening, 18 cu-in, Triple Coated
Appleton® explosionproof and dust-ignitionproof GR and GRF conduit outlet boxes are furnished with internal ground screw and O-ring. They are ideal for use in indoor and outdoor classified locations. These corrosion-resistant outlet boxes provide access for maintece, allow the connection of different lengths of conduit, and for changing the direction of conduit.
-
BrandAppleton®
-
UPC781381446556
-
Manufacturer Part NumberGRX50
-
CountryUSA|Canada
-
Capacity18 cu-in
-
FinishTriple Coated
-
MaterialMalleable Iron
-
TypeX-Style Dust-Ignitionproof Explosionproof
-
SeriesGR Series
-
Dimensions3-3/4 in H x 3-3/4 in W x 2-1/4 in D
-
Size1/2 in
-
Suitable For Use WithThreaded Metallic Conduit System
- Offers ten hub arrangements
- Malleable iron bodies have high tensile strength and ductility and provide great resistance to corrosion, impact and shock
- Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
- General purpose wiring
- Function as sealing fittings when used with sealing covers
- Internally threaded body with externally threaded cover
- Covers have pry notches for bar or wrench
- Accommodate sealing, dome, hub and union hub covers and canopies
- Standard O-rings provide raintight fit
- Internal ground screw standard
- Smooth, rounded integral bushing in each hub type box protects conductor insulation
- Complies with a wide range of classified area requirements
- Corrosion resistant
- For pulling of wires
- Connect conduit lengths and change direction of conduit runs
- Provide access for maintece
- Chromate/epoxy powder coated/zinc electroplated finish
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6ZED3 |
-
Alternative Part Number8345990
-
UNSPSC39121308
-
IDEA Index ID8345990
-
IncludesInternal Ground Screw and O-Ring
-
Package DescriptionEACH
-
Standards/ApprovalsClass 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
