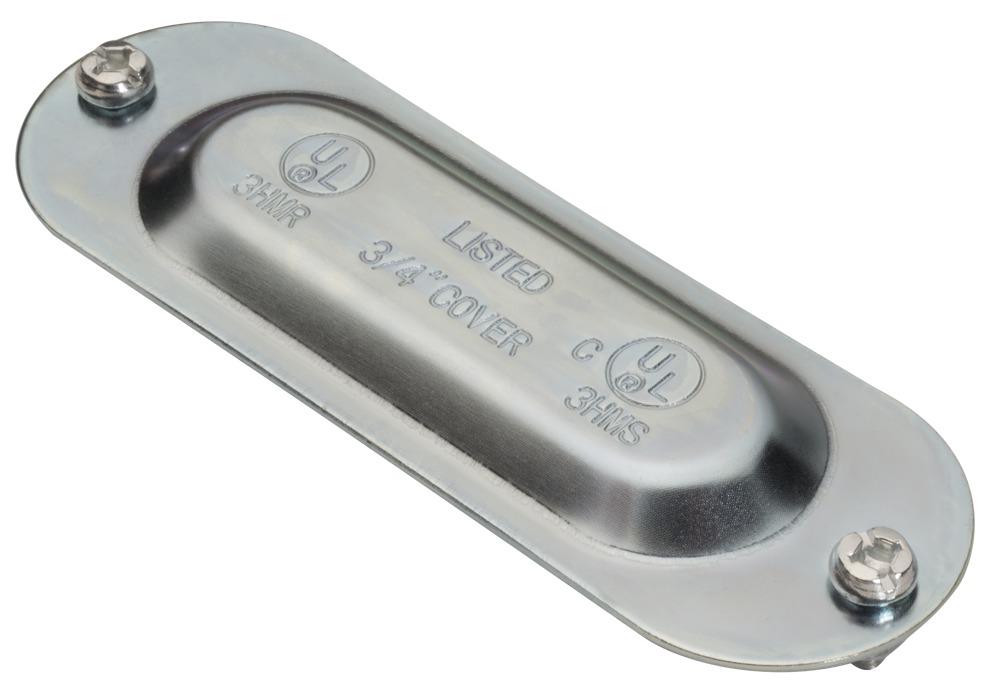

Southwire - Topaz 572S Conduit Body Cover, 3/4 in Hub, For Use With LB, LL, LR, C, T-Type, EMT and Rigid Conduit Body, Steel, Zinc Plated
Topaz's Steel Conduit Body Covers feature strong zinc plated steel construction and are interchangeable with other major brands, reducing overhead and stocking costs. Domed covers allows for additional wiring space.Sold complete with screws and available in a range of sizes from 1/2” to 3 1/2-4”. Built to last construction ensures integrity and optimizes safety and performance; UL listed.
-
BrandSouthwire - Topaz
-
UPC751338155305
-
Manufacturer Part Number572S
-
CountryUSA
-
FinishZinc Plated
-
MaterialSteel
-
Hub Size3/4 in
-
Dimensions4.625 in L x 1.52 in W
-
Suitable For Use WithLB, LL, LR, C, T-Type, EMT and Rigid Conduit Body
- Domed design allows for additional wiring space
- Corrosion resistant
- Insulated throat protects against abrasion damage
-
Alternative Part Number8741903
-
UNSPSC39131708
-
IDEA Index ID8741903
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514B/E170258|Federal Specification A-A-50563|NEMA/ANSI FB-1|Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
-
Warranty1 Year
-
Specification Sheet
