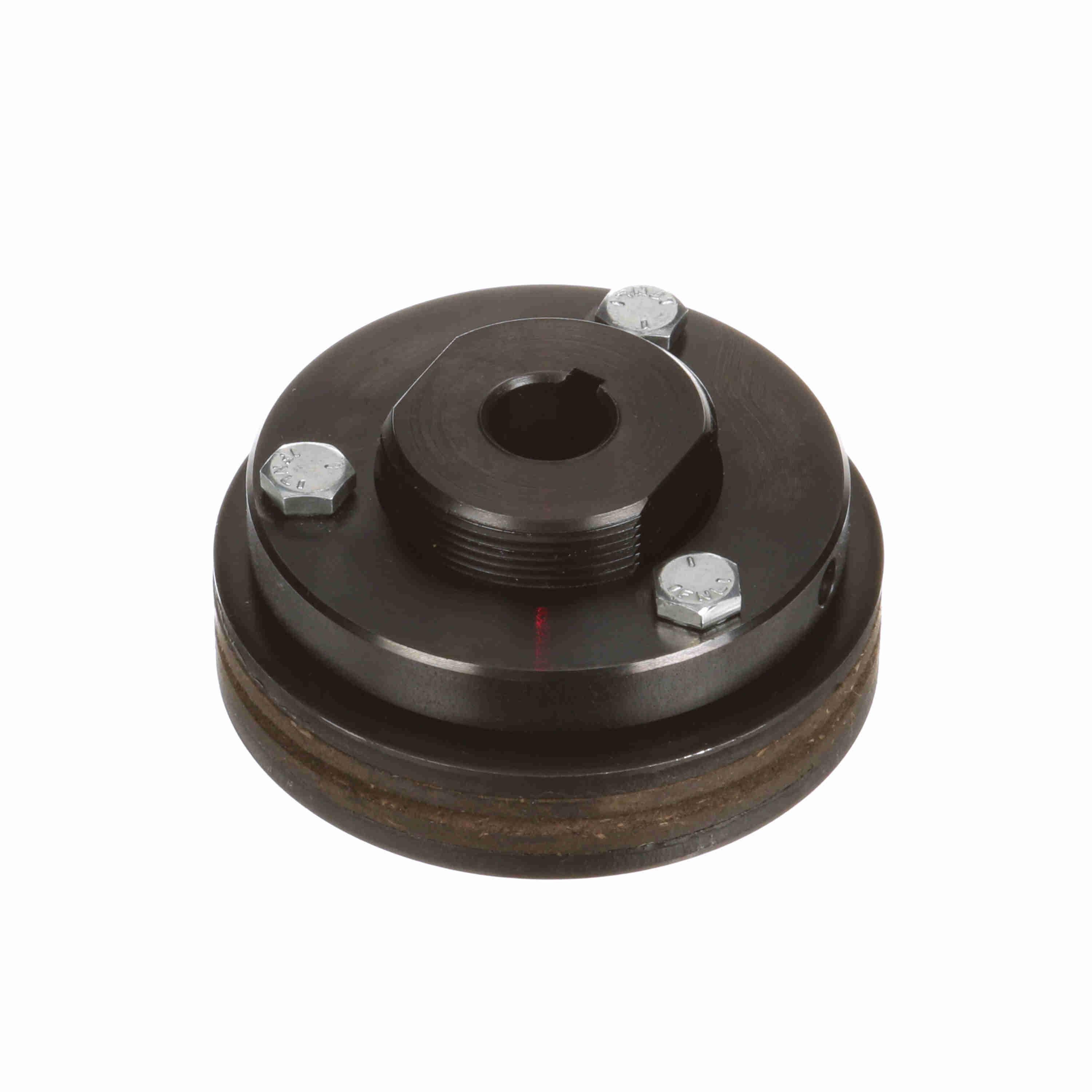

Browning 5/8"-ID TORQUE LIMITERS BRW T-35-L X 5/8
The Browning® torque limiter is a spring loaded friction style torque overload device. The load on the friction pads is adjusted so that the process torque is transmitted. An overload torque in excess of the set torque causes the unit to slip. This prevents overloads from transmitting through the system. When the load falls below the set level, the torque limiter stops slipping and transmits the torque. A torque limiter does not maintain phase between input and output. Although it is a similar size, the Browning® torque limiter has a higher torque density than the Morse® torque limiter. It is also well suited for applications that trip infrequently at high loads. It is most often used in a chain drive. A specially machined sprocket is inserted between the friction pads and acts as the slip interface. Torque capacity is up to 8800 in-lb.
-
BrandBrowning®
-
UPC662289181599
-
Manufacturer Part Number1296367
-
CountryUSA
-
Maximum Speed1400 rpm
-
Torque Rating1800 in-lb (1-Spring)/3000 in-lb (2-Spring)
-
TypeAutomatic
-
Minimum Sprocket Teeth26 (NO. 40 Chain), 26 (NO. 41 Chain), 21 (NO. 50 Chain)
-
SeriesT35L
-
Outside Diameter3-1/2 in
-
Bore Diameter5/8 in
-
Bore TypeFinished
-
Overall Length2-1/4 in
- Helps prevent machine and product damage caused by shock loads, overloads or machine jams
- Adjustable spring pressure determines overload setting and reengages drive when overload condition subsides
- Reversible and no need to reset
- Non asbestos pads
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning torque limiters slip under excessive load but automatically carry the desired load after the excess has been removed
- Browning torque limiters are friction type devices that reset to any position
- Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
- Standard Bearings - Commercially available Tapered Roller Bearings provide maximum overhung load capacity
-
Alternative Part NumberT35LX5/8
-
UNSPSC41114510
-
Package DescriptionEACH
-
Warranty1 Year
-
