Morse 500-AG-530-SPKT-PKG SPROCKETS MRE 500-A-G-5-30

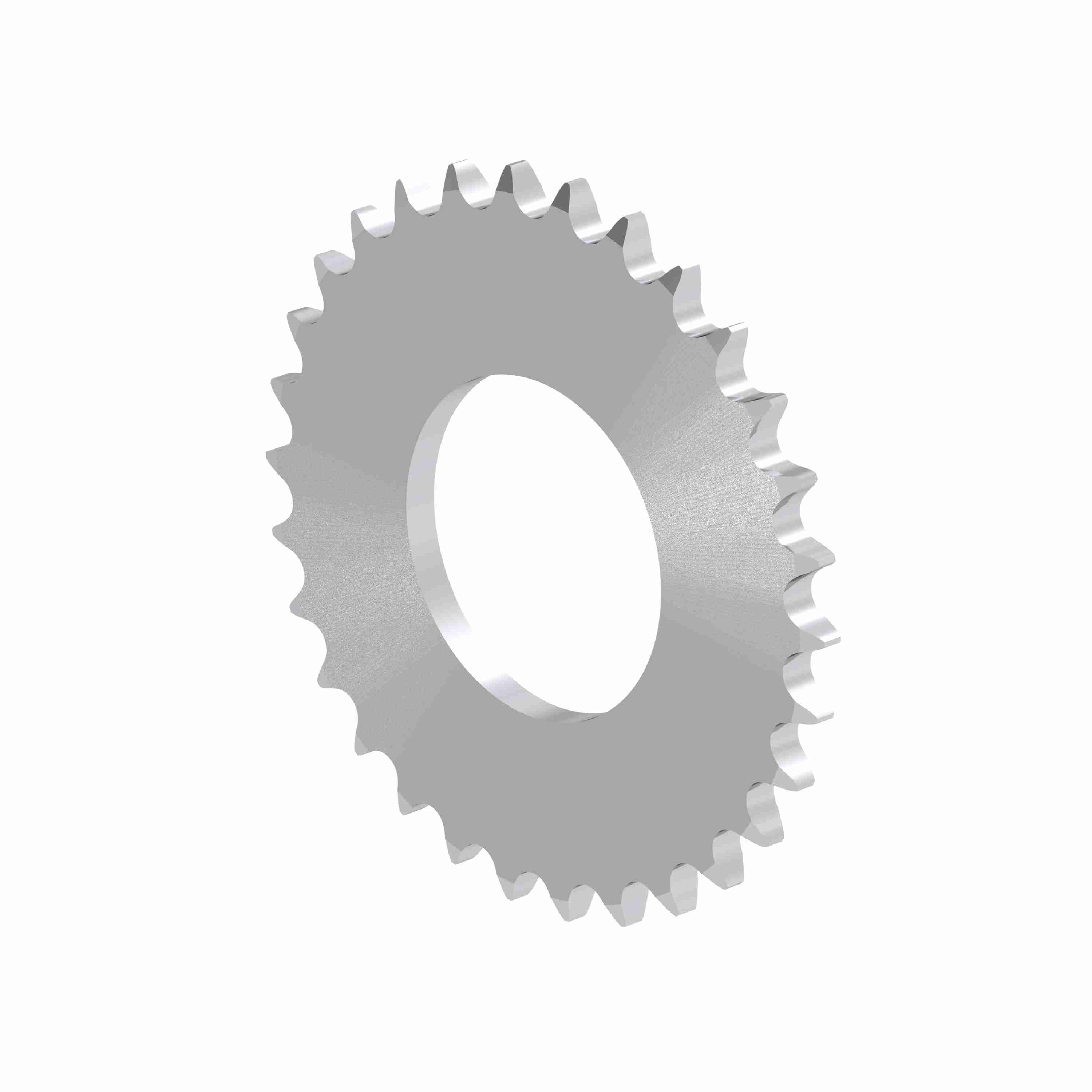

Morse® 194625 A Plate Ground Sprocket, 30 Teeth, For Use With Model 500 Torque Limiter Model, 160.53 mm OD
-
BrandMorse®
-
UPC662288949374
-
Manufacturer Part Number194625
-
CountryUSA
-
TypeA Plate
-
Number of Teeth30
-
Outside Diameter160.53 mm
-
Suitable For Use WithModel 500 Torque Limiter Model
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Torque limiter bushing must be purchased separately
- Double-shielded bearings extend the service life of the motor
- Extended shaft with wrench flats for manual jogging of auger
- Manual-reset thermal protector (as noted) protects against motor overload
-
Alternative Part Number500-AG530 SPKT PKG
-
UNSPSC31171901
-
Package DescriptionEACH
-
WarrantyLimited
-
