Browning #50 CHAIN TORQUE LIMITER SPROCKETS BRW 50-T-45-L-26

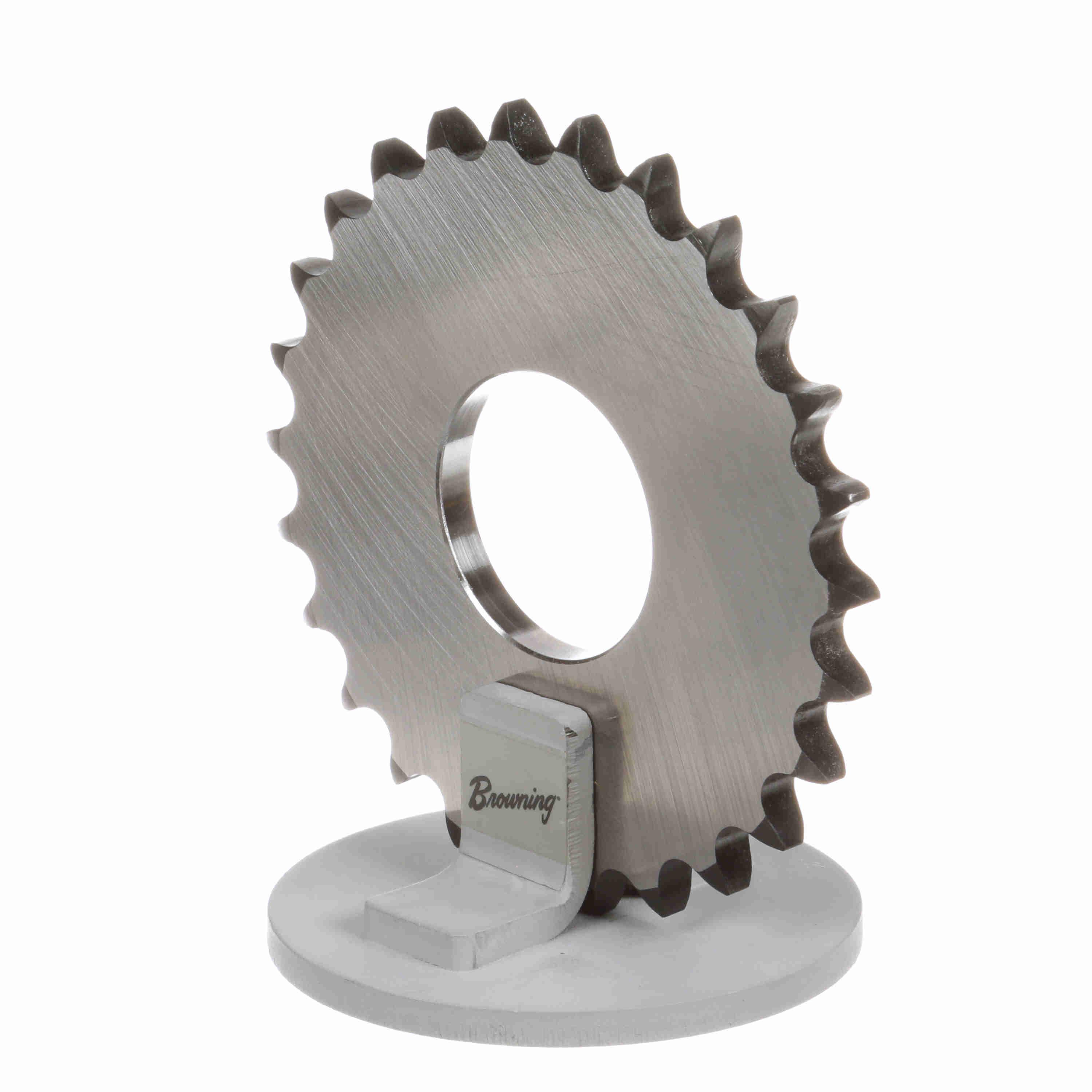

Browning® 1111863 A Plate Sprocket, 50 Chain, 26 Teeth, For Use With T45L Torque Limiters, 5.52 in OD
-
BrandBrowning®
-
UPC662289242139
-
Manufacturer Part Number1111863
-
CountryUSA
-
Pitch Diameter5.185 in
-
Thickness0.343 in
-
Chain Number50
-
TypeA Plate
-
Number of Teeth26
-
Outside Diameter5.52 in
-
Suitable For Use WithT45L Torque Limiters
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Stock sprockets supplied with ground faces to fit the Browning torque limiter
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part Number50T45L26
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
