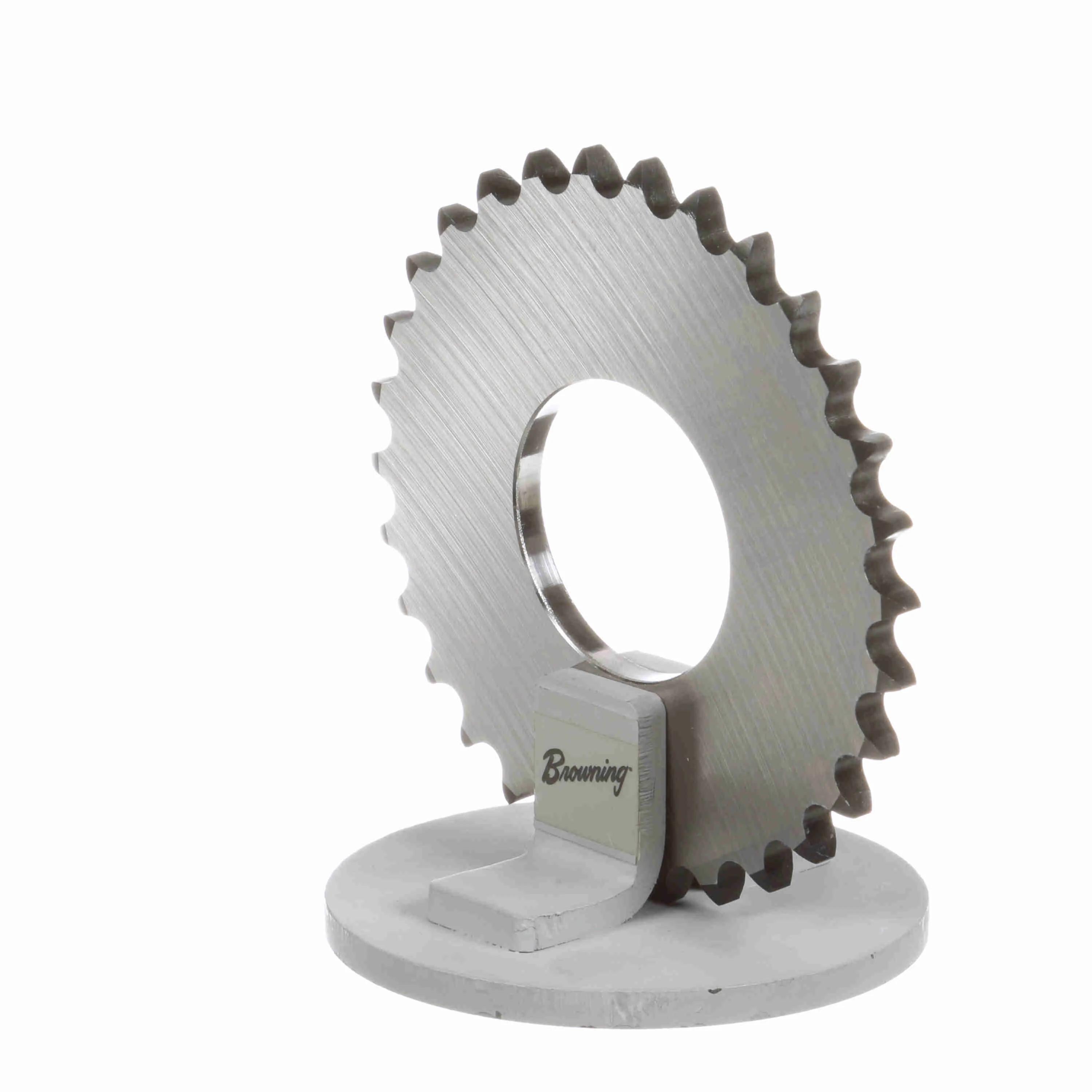

Browning® 1111814 A Plate Sprocket, 40 Chain, 30 Teeth, For Use With T35L Torque Limiters, 5.06 in OD
Browning® 1111814 A Plate Sprocket, 40 Chain, 30 Teeth, For Use With T35L Torque Limiters, 5.06 in OD
-
BrandBrowning®
-
UPC662289262175
-
Manufacturer Part Number1111814
-
CountryUSA
-
Pitch Diameter4.783 in
-
Thickness0.284 in
-
Chain Number40
-
TypeA Plate
-
Number of Teeth30
-
Outside Diameter5.06 in
-
Suitable For Use WithT35L Torque Limiters
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Stock sprockets supplied with ground faces to fit the Browning torque limiter
-
Alternative Part Number40T35L30
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
