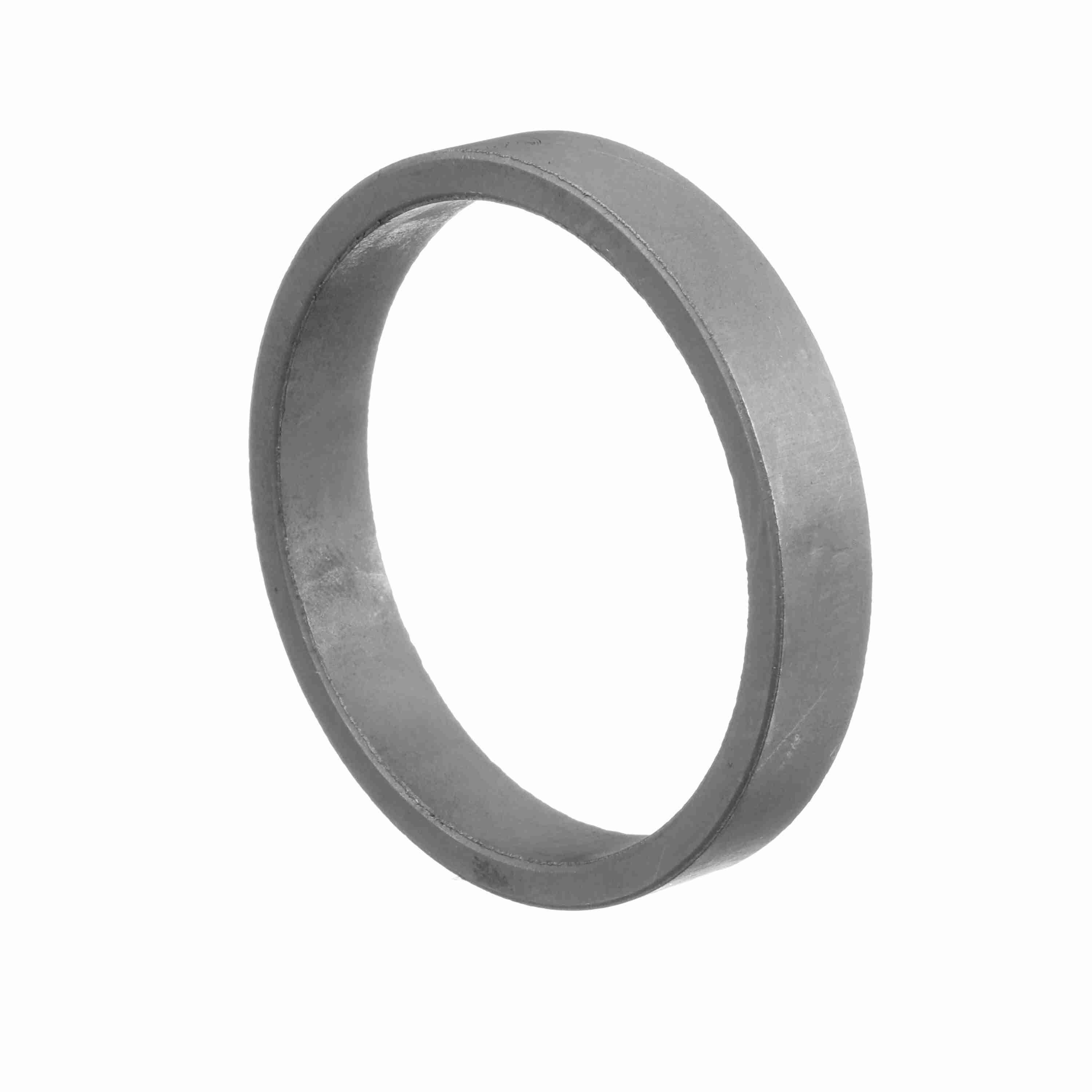

Morse® 604205 Bushing
Sintered steel bushing on which the center member and friction facings rides are coated with a dry film lubricant; therefore, no oil is present to contaminate friction facings and reduce torque capacity. The bushing "free floats" on the hub. Morse® offers a wide selection of bushing widths in all torque limiter sizes, permitting close matching of center member and bushing width to minimize bearing pressure and promote longer bushing life.
-
BrandMorse®
-
UPC662288495093
-
Manufacturer Part Number604205
-
CountryUSA
-
MaterialSintered Steel
-
Dimensions0.48 in L
-
Suitable For Use With500A Series Plain Bore Torque Limiter
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Bushing kits are available in a wide range of bore size and are easily installed
- The load on the friction pads is adjusted so that process torque is transmitted
- An overload causes the unit to slip
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
-
Alternative Part Number500 TL BUSHING (480)PB
-
UNSPSC40161515
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
