Browning DYNACORP BRW D-6001-448-004

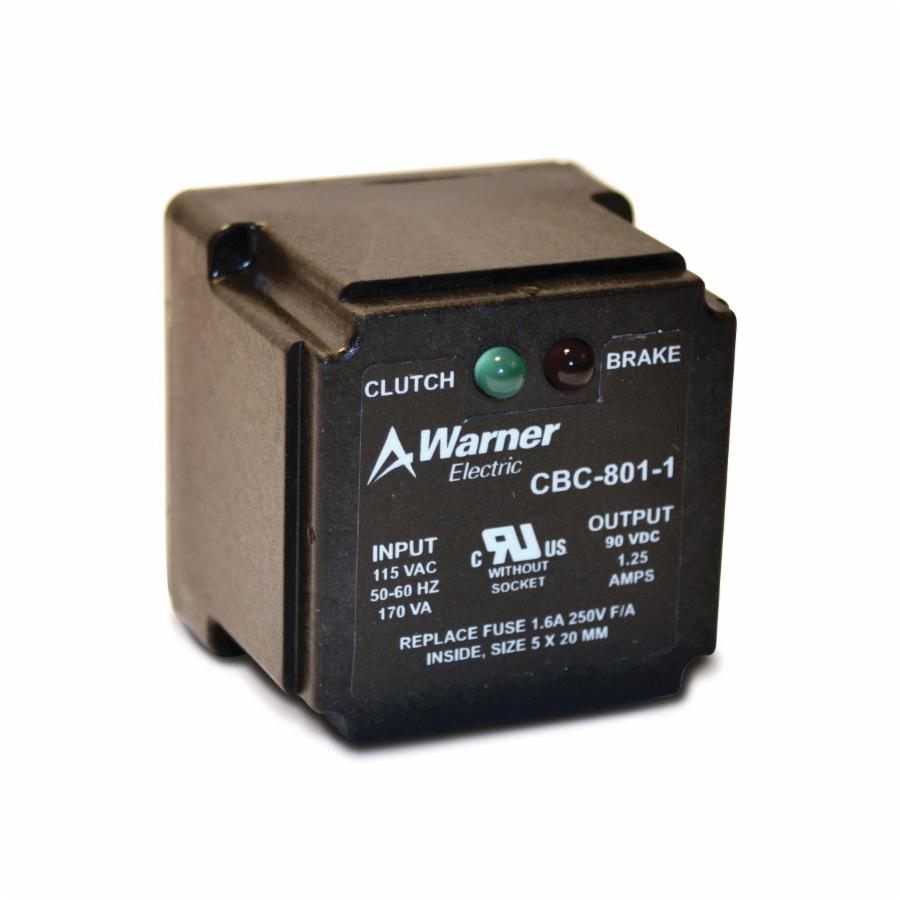

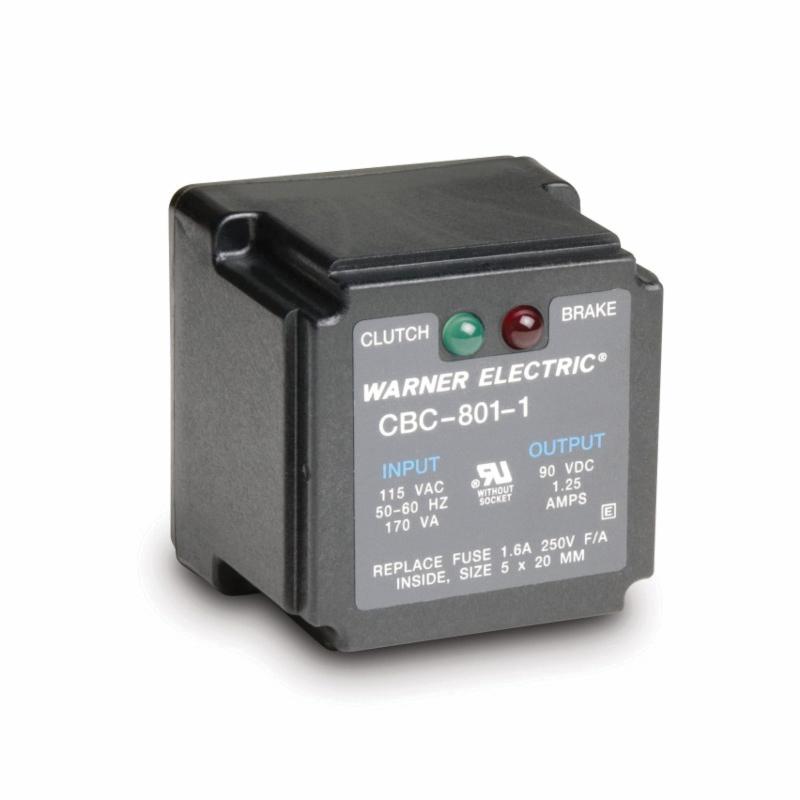

The CBC-801 is a basic on-off power supply that provides full voltage to a 90 VAC clutch or brake and is activated by an external switch. This type of power supply is sufficient for many clutch/brake applications. These on-off controls (6001-448-004) feature 2 channels and an input of 120 VAC, 50/60 Hz.
-
BrandWarner Electric®
-
UPC786582079626
-
Manufacturer Part Number6001-448-004
-
CountryUSA
-
TypePlug-In Octal Socket
-
SeriesCBC-801
-
Number of Channels2
-
Dimensions1.968 in L x 2.437 in H
-
Input Voltage120 VAC
-
Specifications1.25 A Output Current, 50/60 Hz Frequency, 1.6 A/250 V Circuit Protection, SPDT Switching, -23 to 116 deg F Ambient Temperature
-
Output Voltage90 VDC
-
Suitable For Use With90 VDC Clutches/Brakes and Octal Socket
- Wiring connections made at octal socket
- Arc suppression circuitry extends switch life
- Fused for overload protection
- LED output indicators
- DIN rail mountable
- Red LED indicates brake is energized, green LED indicates clutch is energized
- For basic on-off operation
-
Alternative Part Number30190480
-
UNSPSC26111900
-
Standards/ApprovalsCSA Certified|UL Listed
-
