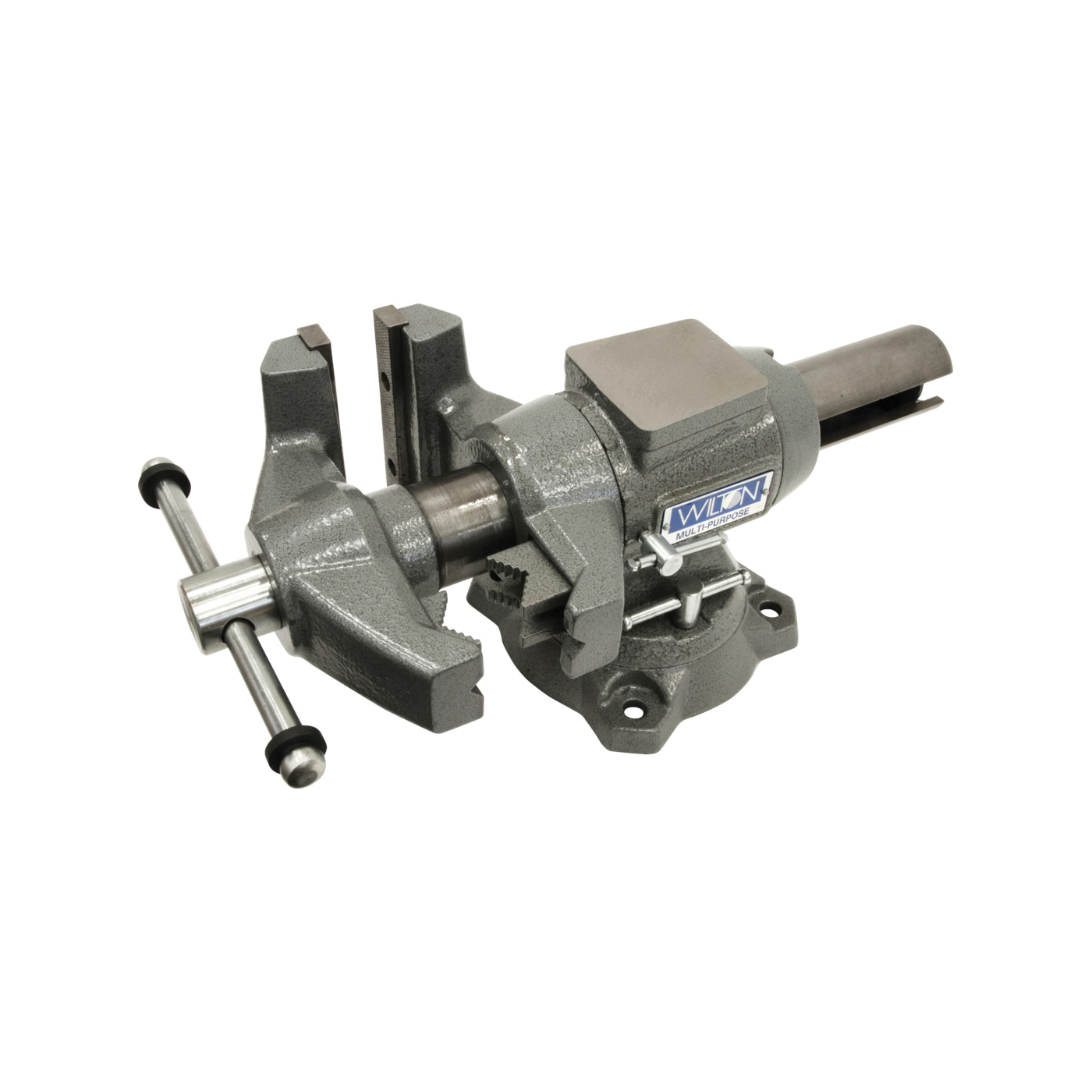

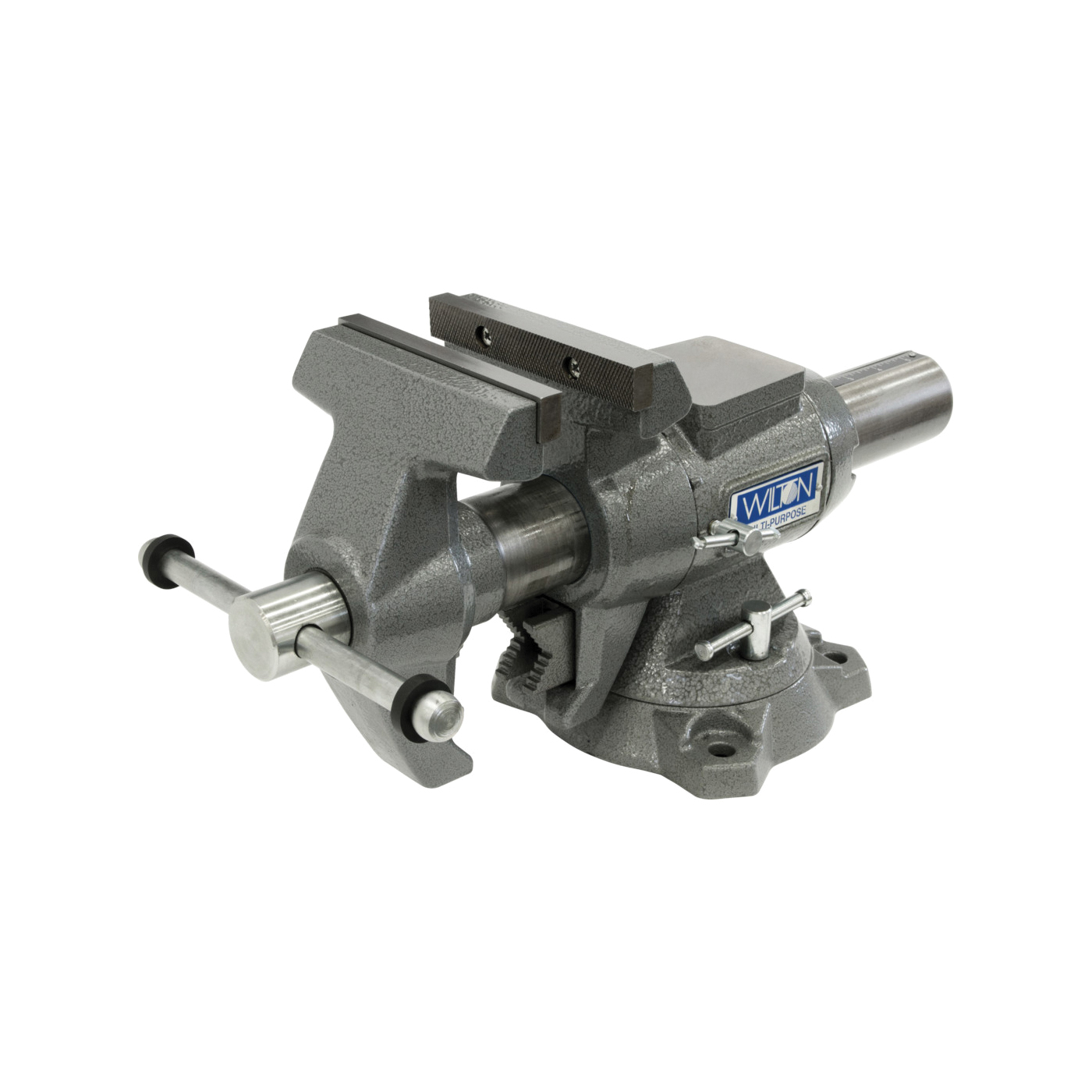

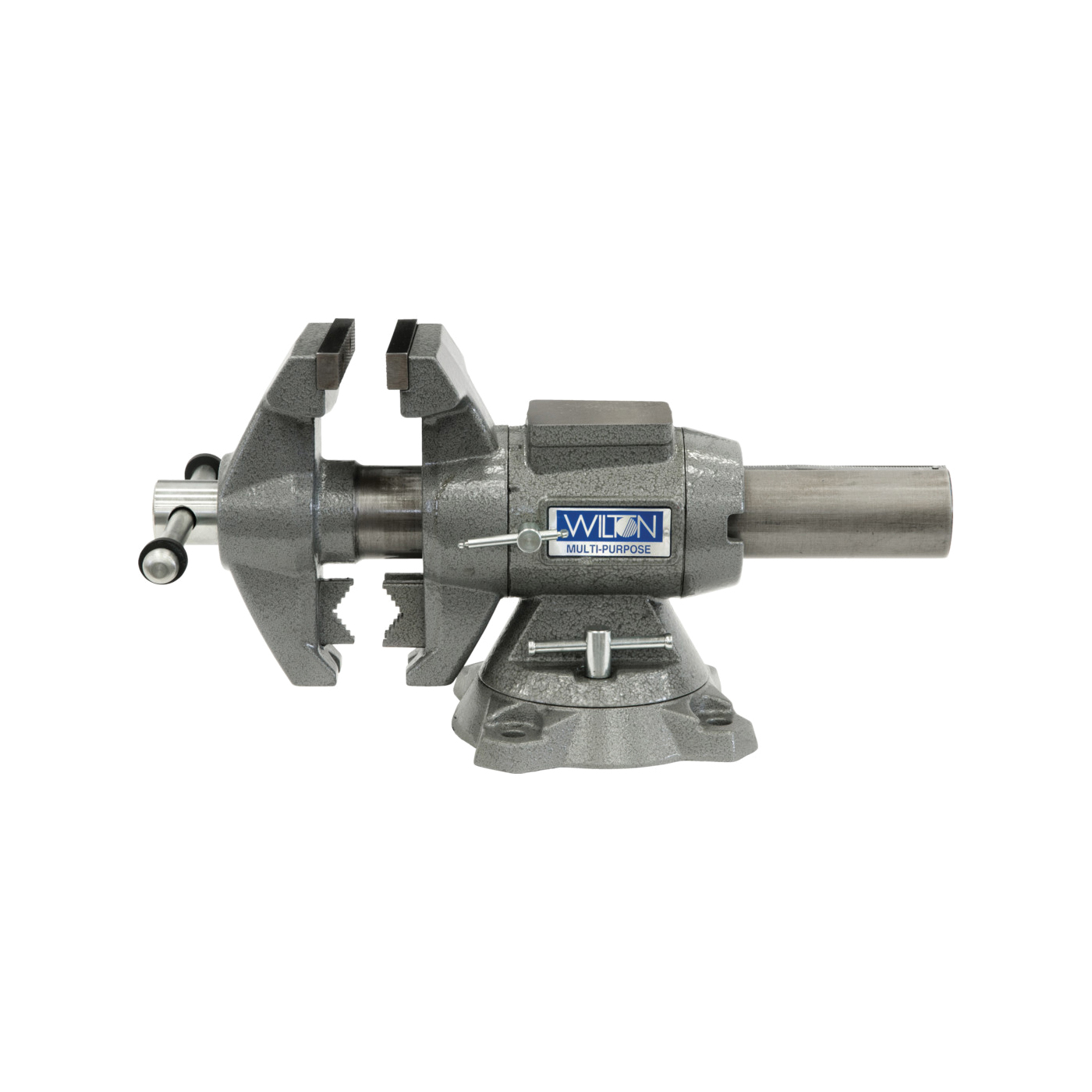

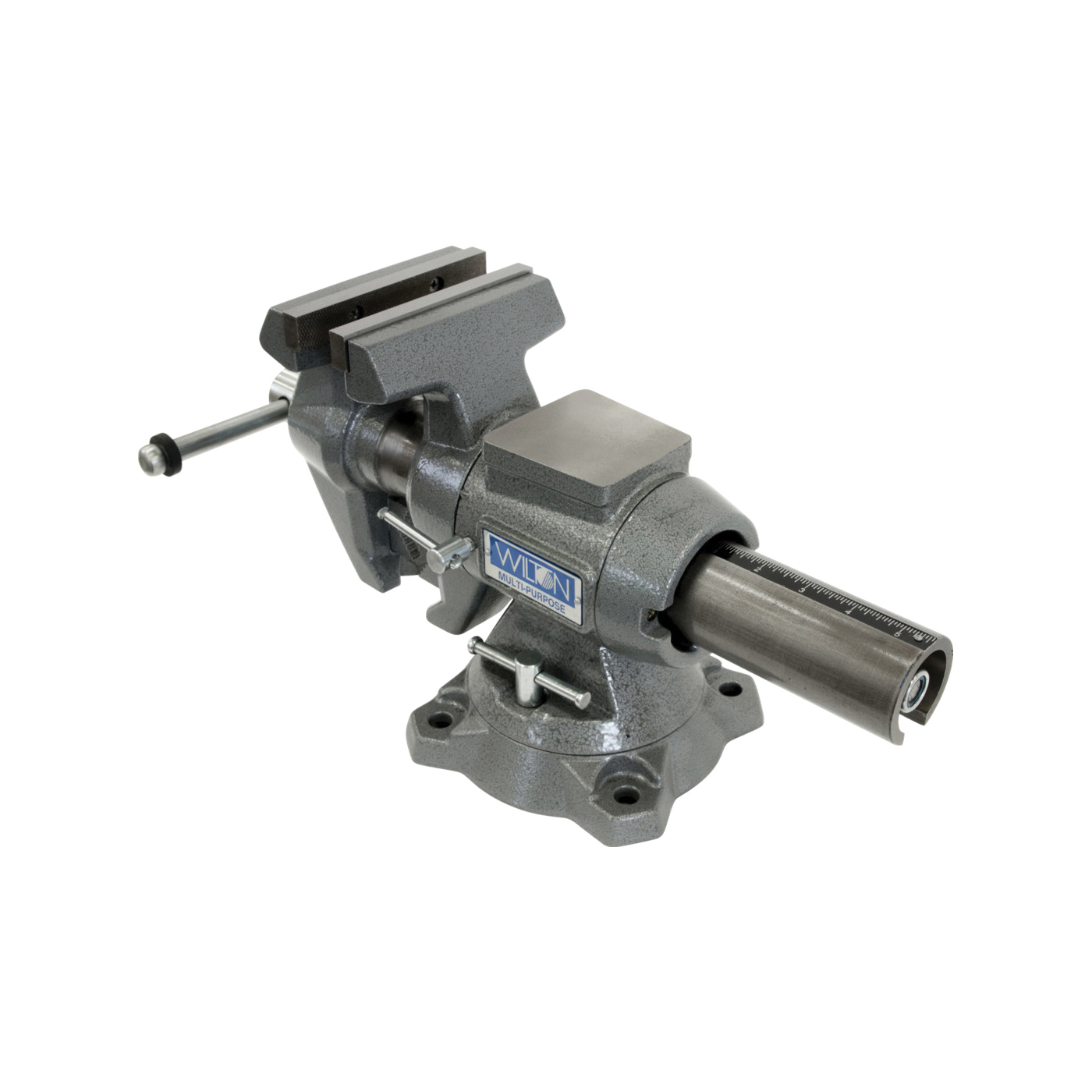

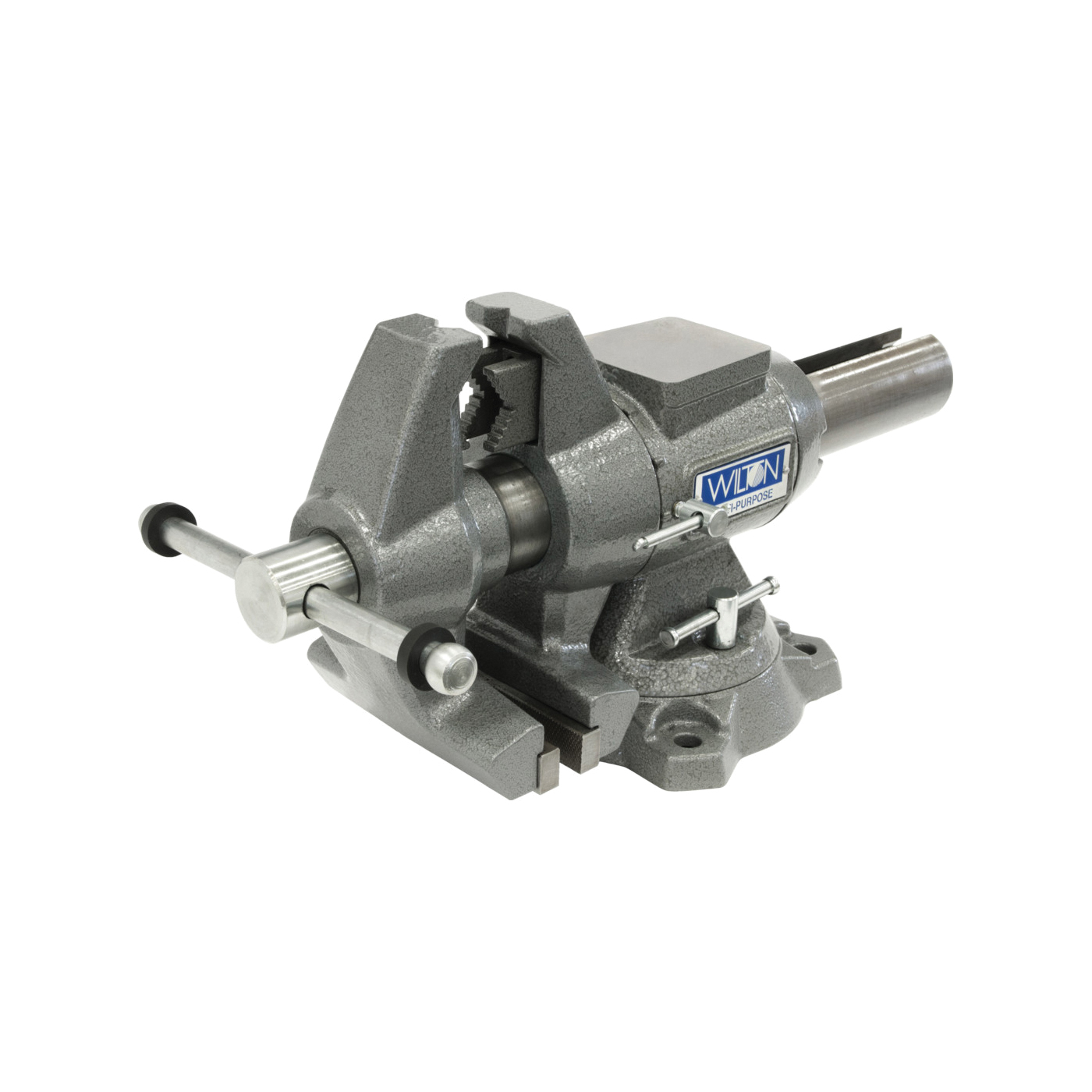

Wilton® WL9-28824 Multi-Purpose Bench Vise, Serrated Jaw, 5 in Jaw Opening, 5-1/2 in W Hardened Steel Jaw, 2-3/4 in D Throat
Wilton® Multi-Purpose Bench Vise is ideal for light tradesman, utility, MRO and general purpose use. This vise features a 360 deg rotating head to clamp material at any angle, 30 deg indexing increments for quick set up, replaceable pipe jaws and a V-jaw to easily hold round objects vertically. The body and movable jaw are 30000 psi gray cast iron and the base is 60000 psi ductile iron, providing durability through a wide range of applications.
-
BrandWilton®
-
UPC731325749649
-
Manufacturer Part NumberWL9-28824
-
CountryUSA
-
Pipe Capacity5/8 to 2-1/4 in
-
MaterialCast Iron
-
Throat Depth2-3/4 in
-
TypeMulti-Purpose
-
Mounting TypeBolt
-
Rotation Angle360 deg
-
Handle TypeLockdown
-
Number of Mounting Points4
-
Base TypeSwivel
-
Jaw MaterialHardened Steel
-
Jaw Opening5 in
-
Jaw TypeSerrated
-
Jaw Width5-1/2 in
- Replaceable steel pipe jaws
- 360 deg rotating head for clamping material at any angle
- Indexed at 30 deg increments for quick set up
- Large built-in anvil for forming and shaping materials
- Replaceable hardened steel jaws with a serrated pattern ensure grip and a long life
- V-jaw easily holds round stock vertically
-
Alternative Part Number28824
-
UNSPSC27112102
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including lead and cadmium which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
-
WarrantyLifetime
-
Specification Sheet
-
Instruction/Installation Manual
