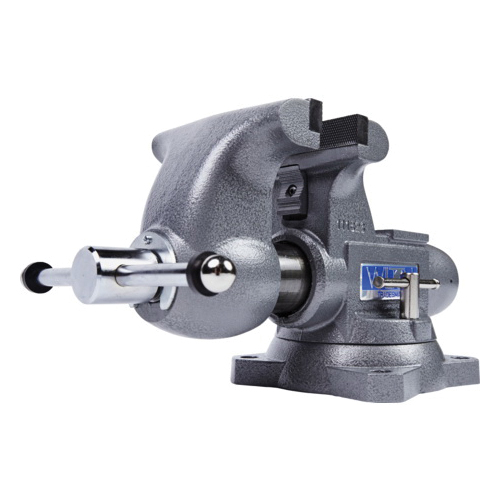

Wilton® Tradesman WL9-28807 Vise, Reversible Jaw, 6 in Jaw Opening, 6-1/2 in W Steel Jaw, 4 in D Throat

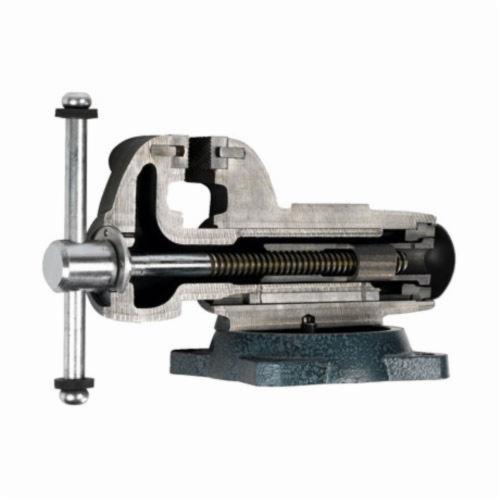

The tradesman round channel vise is designed to handle the most demanding clamping applications. unlike most vises that have a fixed center nut the tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the tradesman vise is equipped with main jaws, pipe jaws and a machined anvil work surface.
-
BrandWilton®
-
UPC731325753974
-
Manufacturer Part NumberWL9-28807
-
CountryUSA
-
Pipe Capacity3/8 to 4 in
-
MaterialSteel
-
Throat Depth4 in
-
TypeRound Channel
-
Mounting TypeBench
-
Rotation Angle360 deg
-
Handle TypePrecision Slide Bar
-
Number of Mounting Points4
-
Base TypeSwivel
-
Jaw MaterialSteel
-
Jaw Opening6 in
-
Jaw TypeReversible
-
Jaw Width6-1/2 in
- Enclosed design keeps lubrication in and contaminants out for a lifetime of smooth operation
- Redesigned spindle assembly improves overall product life and durability

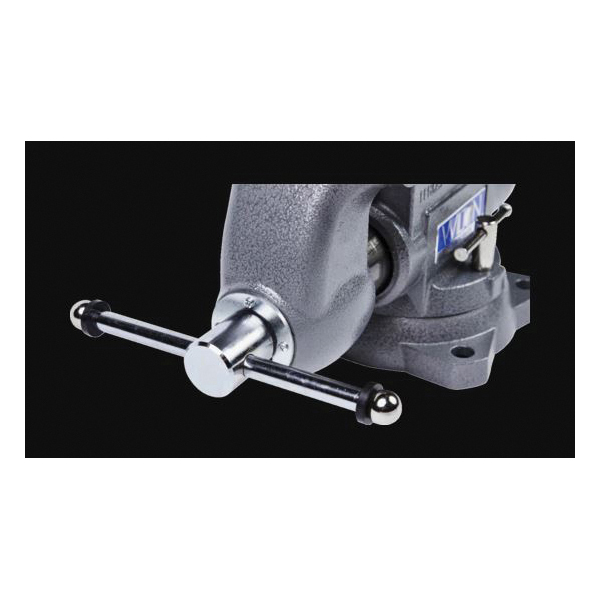

- Precision slide bar eliminates movement in the front jaw regardless of opened distance
- Machined steel serrated jaws with phosphate coating provide increased durability and an extended life of use

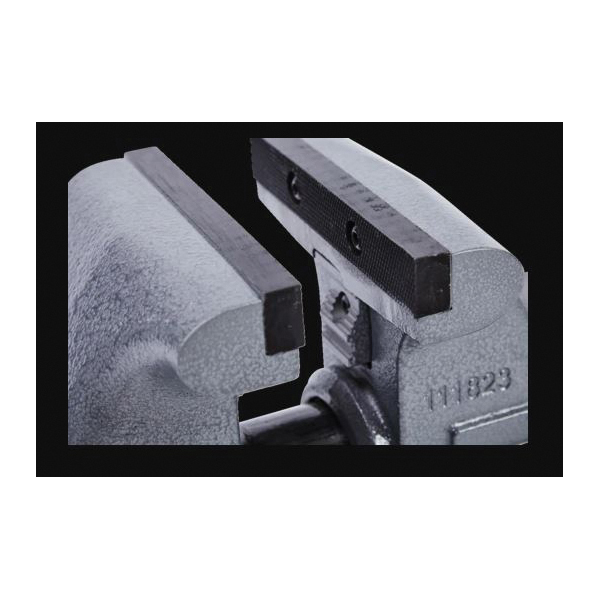

- Reversible jaw inserts are serrated on one side for extra grip and smooth on the other to prevent marring on softer surfaces
- 60000 psi ductile iron body is virtually indestructible with 2X the strength of grey casted vises
- Longer spindle nut ensures a lifetime of smooth movement and straight line pull
-
Alternative Part Number28807
-
UNSPSC27112102
-
Standards/ApprovalsPROP65: Cancer - www.P65Warnings.ca.gov
-
WarrantyLifetime
-
Specification Sheet
-
Owners/User Manual
