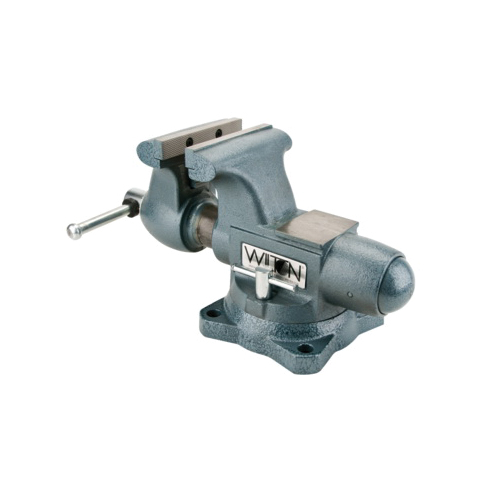

Wilton® Tradesman's 63199 Tradesman Round Channel Bench Vise With Swivel Base, Standard Serrated Jaw, 4 in Jaw Opening, 4-1/2 in W Ductile Iron Jaw, 3-1/4 in D Throat
Proudly made in the USA, the Tradesman round channel vise is designed to handle the most demanding clamping applications. Unlike most vises that have a fixed center nut the Tradesman round channel vise nut is anchored at the rear which provides straight line pull and even pressure resulting in greater durability. The round channel design also allows for a completely enclosed spindle and nut assembly keeping debris out and lubrication in for a lifetime of smooth operation. For ultimate versatility, the Tradesman vise is equipped with main jaws, pipe jaws and a machined anvil work surface.
-
BrandWilton®
-
UPC019907631996
-
Manufacturer Part Number63199
-
CountryUSA
-
Pipe Capacity1/4 to 2-1/2 in
-
MaterialDuctile Iron
-
Throat Depth3-1/4 in
-
ColorGray
-
TypeRound Channel
-
Mounting TypeSurface
-
Rotation Angle360 deg
-
Handle TypePrecision Slide Bar
-
SeriesTradesman
-
Number of Mounting Points4
-
Base TypeSwivel
-
Jaw MaterialDuctile Iron
-
Jaw Opening4 in
-
Jaw TypeStandard Serrated
-
Jaw Width4-1/2 in
- Wider jaws provide greater clamping surface
- Enclosed design keeps lubrication in and contaminants out for smooth operation
- Large anvil work surface
- Precision slide bar eliminates movement in the front jaw regardless of opened distance
- 360 deg swivel base with double lockdowns
- 60000 psi ductile iron body is virtually indestructible with 2X the strength of grey casted vises
- Longer spindle nut ensures a lifetime of smooth movement and straight line pull
-
UNSPSC27112102
-
WarrantyLifetime
-
