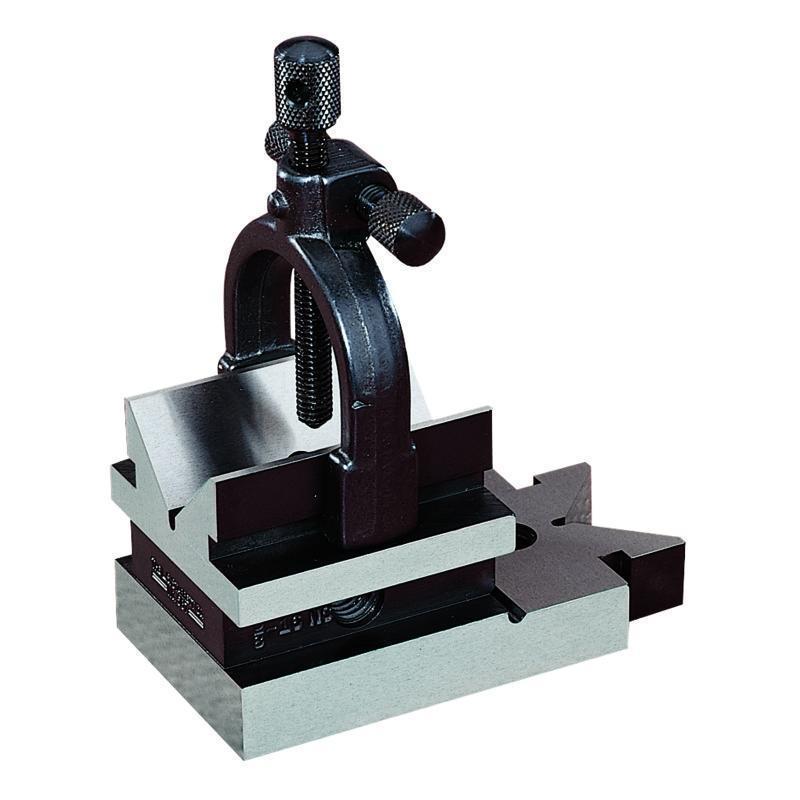

Starrett® 567, 7 Pieces, 1-5/16 in Capacity
V-Blocks come in a variety of styles to suit the numerous requirements of machinists. Used for general shop use and layout work, as well as for holding stock in place during light-duty milling, drilling, and grinding operations. All clamp screws have a hole to help secure the workpiece.
-
BrandStarrett®
-
UPC049659525885
-
Manufacturer Part Number567
-
CountryUSA
-
Number of Pieces7
-
Specifications1-5/16 in Capacity
- The clamp is smaller than the outside width of the block, but has an adjustable side screw to support the block and prevent tilting
- The V at the stepped end is at right angles to the base and is handy for holding shouldered studs, pins, etc
- A clearance hole for drilling or removing dowel pins is provided in the block
- The block has four 3/8-16 tapped holes
- The block is hardened and precision ground
- The clamp is a strong forging
- Can be used on its base, on the end, or on either side

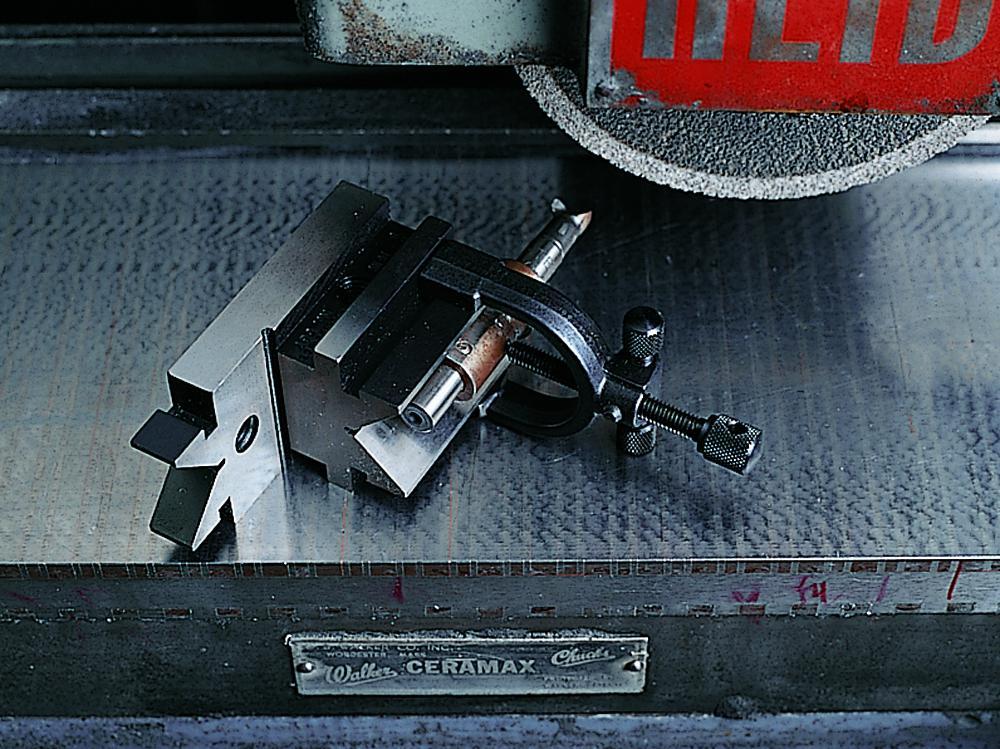

- Used for general shop use and layout work, as well as for holding stock in place during light duty milling, drilling and grinding operations
- All clamp screws have a hole to help secure the workpiece
| Competitor Name | Competitor Part Number |
|---|---|
| MSC | 86420650 |
| Grainger | 4CEP1 |
-
Alternative Part Number52588
-
UNSPSC41111627
-
IncludesV-Block, Clamp, Forg, 1/4-24 Clamp x 2-1/8 Long Screw, Cap With Screw, Cap, Side Screw, Screw and 1/4-24 Thumb x 1-3/8 Long Screw
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Package DescriptionEACH
-
Full Engineering Drawing
