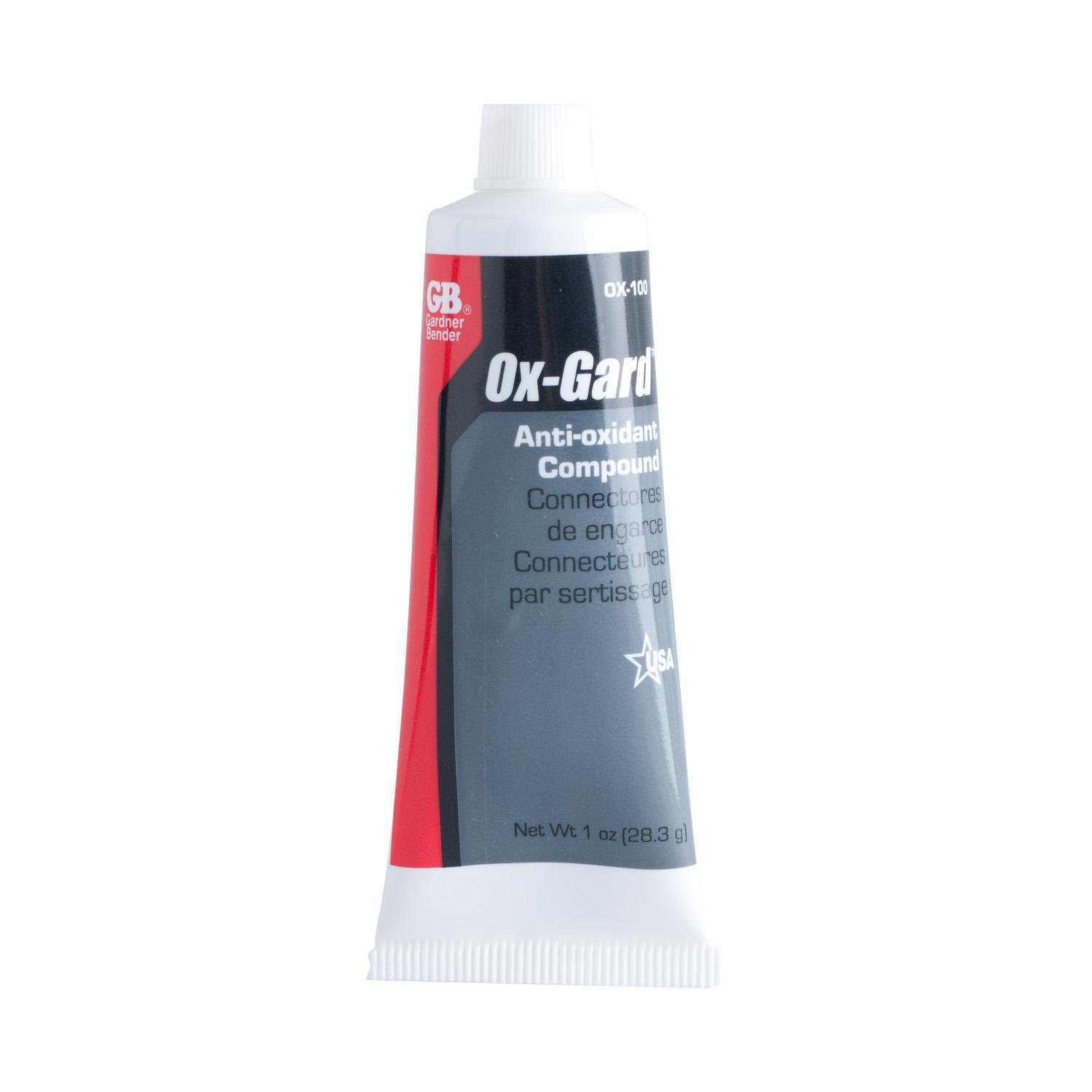

Gardner Bender OX-100B Anti-Oxidant Compound, 1 oz Container Squeeze Tube Container, Semi-Solid Form, Gray, Specific Gravity: 1.37
Ox-Gard Anti-Oxidant Compound contains prime grade zinc and is formulated with metallic zinc to create a compound that enhances electrical and thermal conductivity which is used on high power crimp connections and stud bolt mountings. When the connection is tightened, the grease is displaced, leaving a layer of zinc filling in the surface imperfections of the interface. This has a twofold effect; it improves electrical conductivity and it improves thermal conductivity. This reduces the connection temperature under high power conditions by a reduced voltage drop and by providing a heat conductivity path to the connection's substrate. Ox-Gard Anti-Oxidant Compound is manufactured with unique grease compounded from custom refined low Sulphur oil. The grease base ensures brush-ability over a wide temperature range, tenacious adherence to all surfaces, resistance to water wash out and the prevention of rust and corrosion. This makes the product easier and more reliable to use.
-
BrandGardner Bender
-
UPC032076790110
-
Manufacturer Part NumberOX-100B
-
CountryUSA
-
Temperature Rating280.4 deg F
-
Flash Point>221 deg C
-
FormSemi-Solid
-
ColorGray
-
Composition10 to 15% Zinc Powder, 5 to 10% Talc, 1 to 5% Graphite
-
Container Size1 oz
-
Container TypeSqueeze Tube
-
pH RangeNeutral
-
Specific Gravity1.37
-
Odor/ScentPetroleum
- Makes connections more weatherproof
- Protects connections from corrosion
- Reduces temperate rise
- Low Sulphur content
- Non-reactive, no gassing in storage
- Brushable over a wide temperature range
- Sticks to wet joints
| Cross-Reference Number |
|---|
| 507083 |
-
UNSPSC15121802
-
Package Description1/PK
-
Standards/ApprovalsRoHS Compliant
-
Warranty1 Year
-
Specification Sheet
