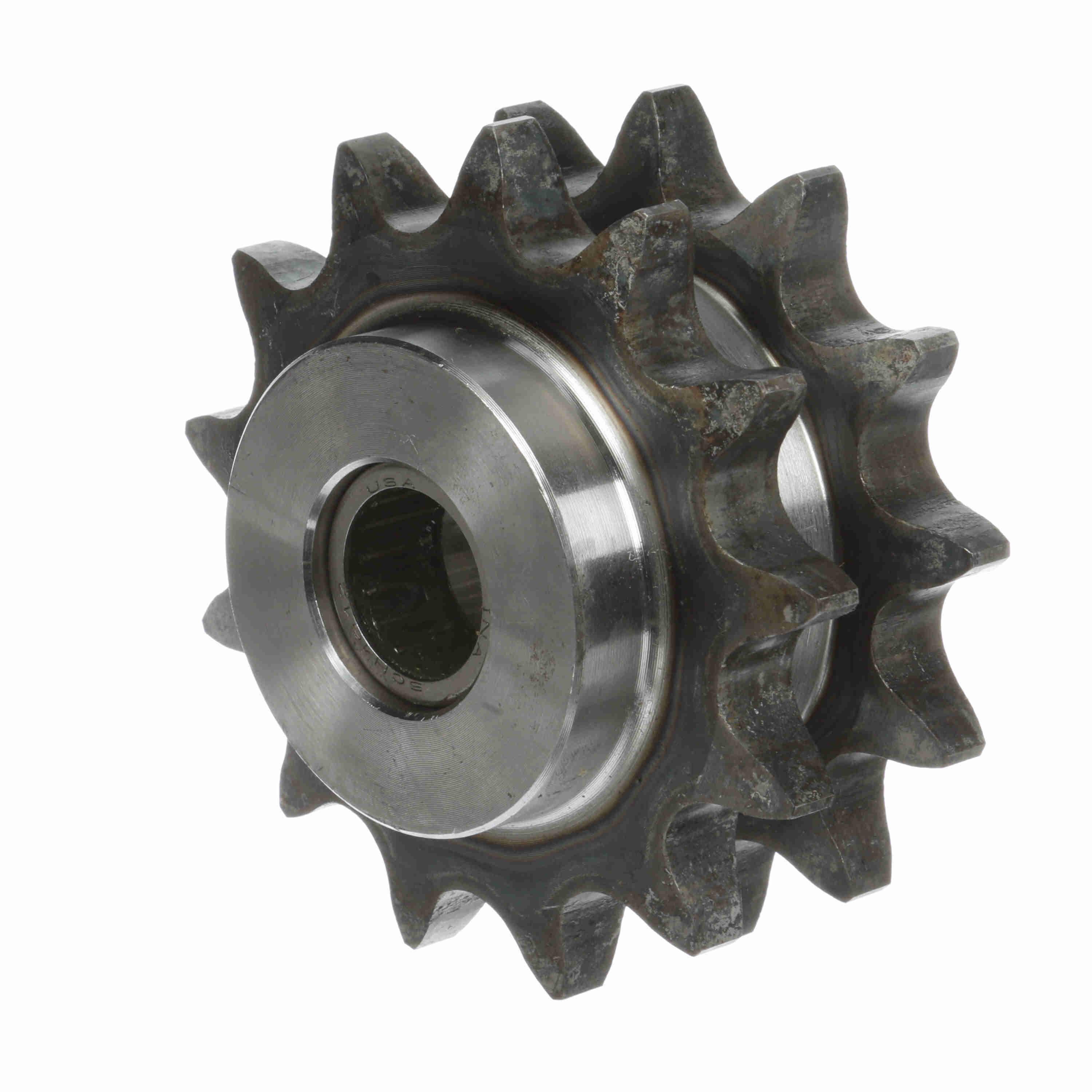

Browning #80 CHAIN DOUBLE IDLER SPROCKETS BRW HND-80-B-13-IDLER
Browning® 1297407 Double Strand Idler Sprocket With Hardened Teeth, 1 in Dia Bore, 4.66 in OD, 80-2 Chain, 13 Teeth, 1 in Pitch, Steel
-
BrandBrowning®
-
UPC662289244584
-
Manufacturer Part Number1297407
-
CountryUSA
-
Pitch1 in
-
MaterialSteel
-
Chain Size80-2
-
TypeDouble Strand
-
Hub Diameter2-5/8 in
-
Number of Teeth13
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter4.66 in
-
Length Through Bore2-1/4 in
-
Bore Diameter1 in
- For use with drive tighteners
- Cast iron
- All Browning stock idlers furnished with needle bearings have retainers that insure minimum internal friction and wear by separating the needle rollers
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Replacement discs are readily available at 2 per pack
- Cast iron
- All Browning stock idlers furnished with needle bearings have retainers that insure minimum internal friction and wear by separating the needle rollers
-
Alternative Part NumberHND80B13 IDLER
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
