Browning #50 CHAIN DOUBLE IDLER SPROCKETS BRW HND-50-B-17-IDLER

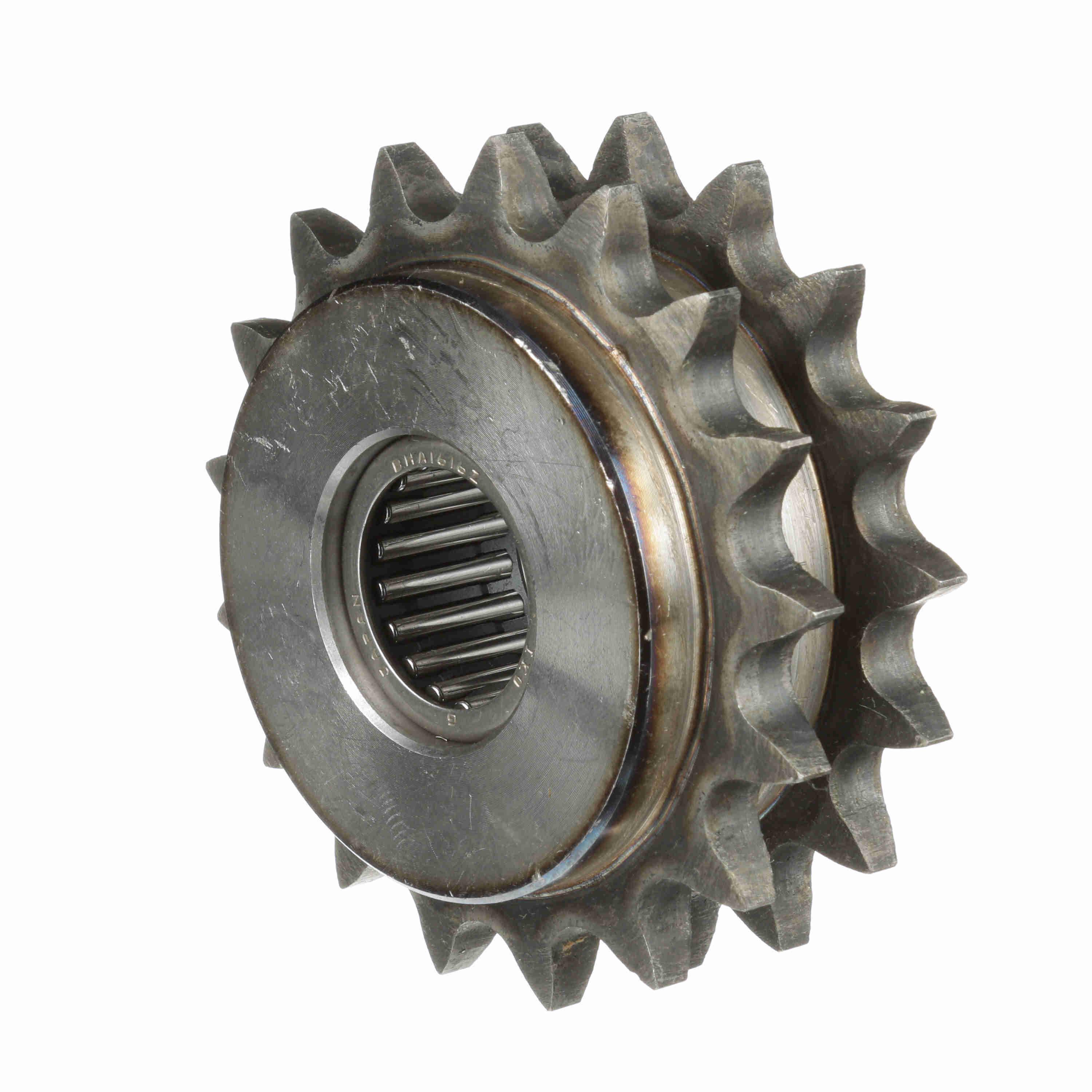

Browning® 1297381 Idler Sprocket With Hardened Teeth, 1 in Dia Bore, 3.72 in OD, 50-2 Chain, 17 Teeth, 5/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289214525
-
Manufacturer Part Number1297381
-
CountryUSA
-
MaterialSteel
-
Chain Size50-2
-
Hub Diameter2-5/8 in
-
Number of Teeth17
-
Outside Diameter3.72 in
-
Length Through Bore1-3/8 in
-
Bore Diameter1 in
- For use with drive tighteners
- Cast iron
- All Browning stock idlers furnished with needle bearings have retainers that insure minimum internal friction and wear by separating the needle rollers
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberHND50B17 IDLER
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
