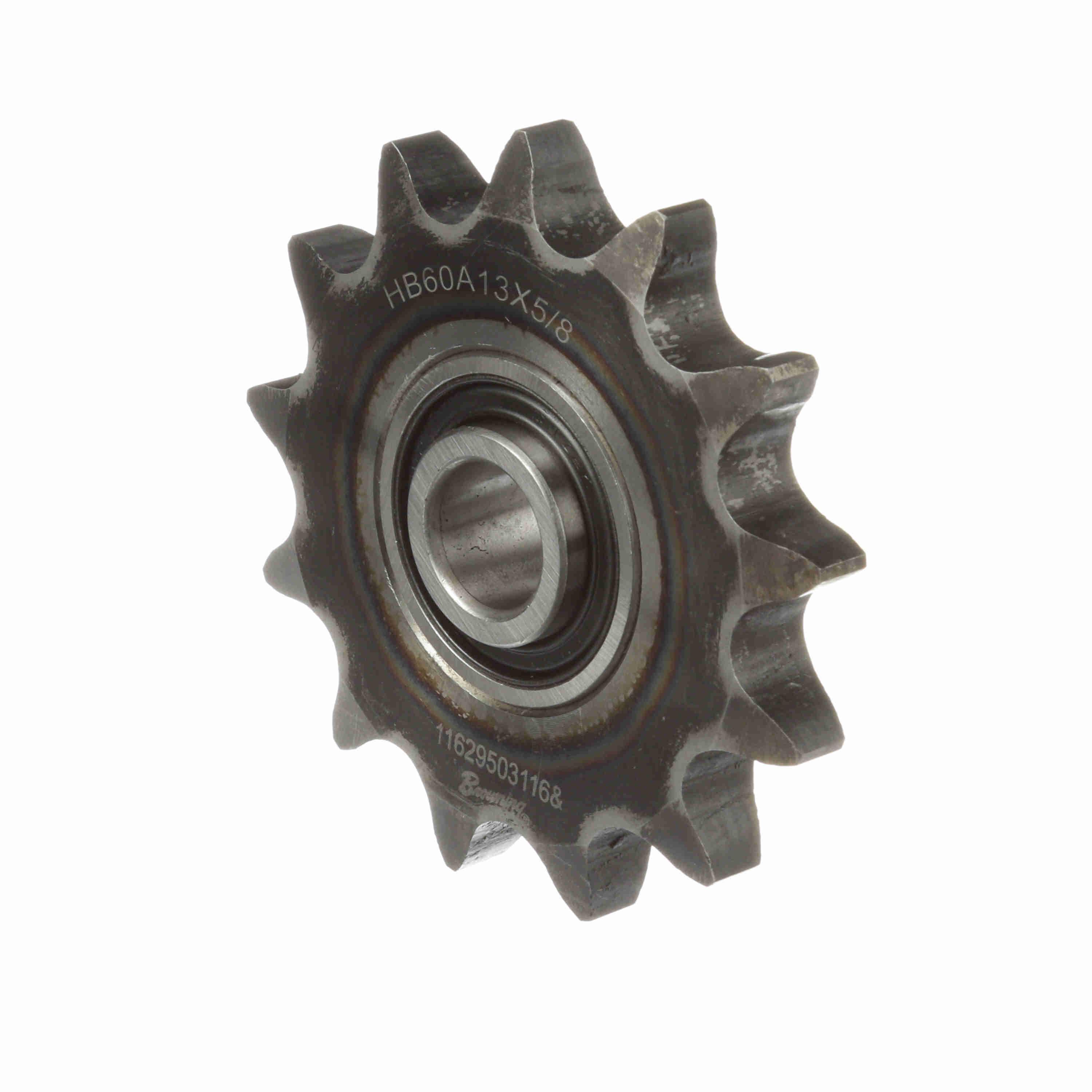

Browning® 1297464 Idler Sprocket, 0.635 in Dia Bore, 3.49 in OD, 60 Chain, 13 Teeth, 3/4 in Pitch, Steel
Browning® 1297464 Idler Sprocket, 0.635 in Dia Bore, 3.49 in OD, 60 Chain, 13 Teeth, 3/4 in Pitch, Steel
-
BrandBrowning®
-
UPC662289254613
-
Manufacturer Part Number1297464
-
CountryUSA
-
Pitch Diameter3.134 in
-
MaterialSteel
-
Chain Size60
-
Number of Teeth13
-
Outside Diameter3.49 in
-
Length Through Bore0.72 in
-
Bore Diameter0.635 in
- Sprocket idlers with ball bearings and hardened teeth
- Not for use with drive tighteners
- Cast iron
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberHB60A13X5/8 IDLER
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
