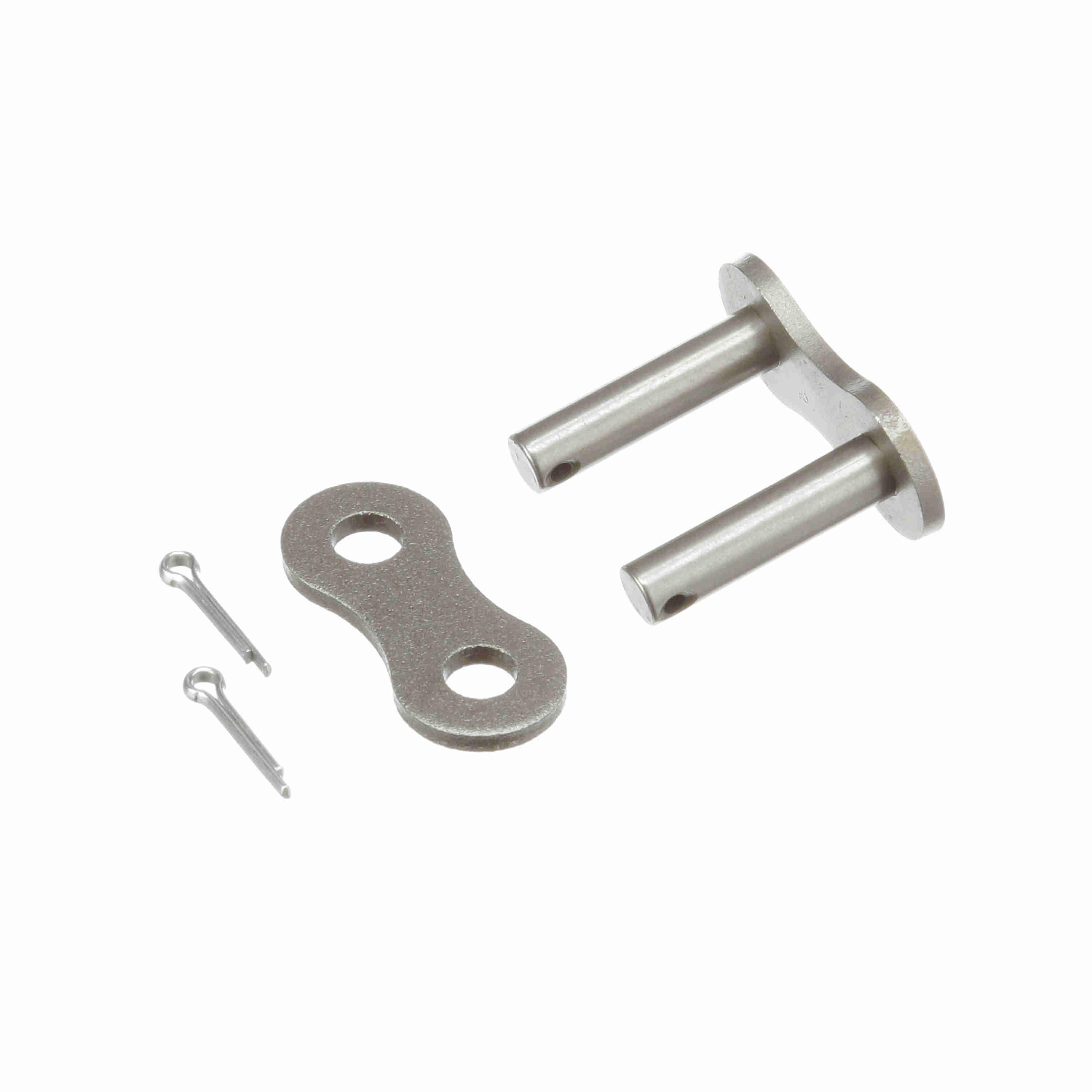

Morse® 331135 Slip Fit Standard Duty Connecting Link With Cotter Pin, 60 Chain, 3/4 in Pitch, 0.99 in OAW, 0.234 in Dia Pin, Steel
Connecting link standard has a removable plate with a slip fit on the pins which allows easy assembly and disassembly. Depending on pitch this may be furnished with spring clip or cotter keys.
-
BrandMorse®
-
UPC662288468004
-
Manufacturer Part Number331135
-
CountryUSA
-
Link Plate Thickness0.094 in
-
Pitch3/4 in
-
MaterialSteel
-
Chain Size60
-
TypeSlip Fit Standard Duty
-
Overall Width0.99 in
-
Pin Diameter0.234 in
-
Link Plate Height0.7 in
- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards
- Rigid manufacturing processes result in a fully-featured chain
-
Alternative Part Number60 C/L C/P S/F
-
UNSPSC26111500
-
Package DescriptionEACH
-
Standards/ApprovalsANSI B29.1
-
Warranty1 Year
-
