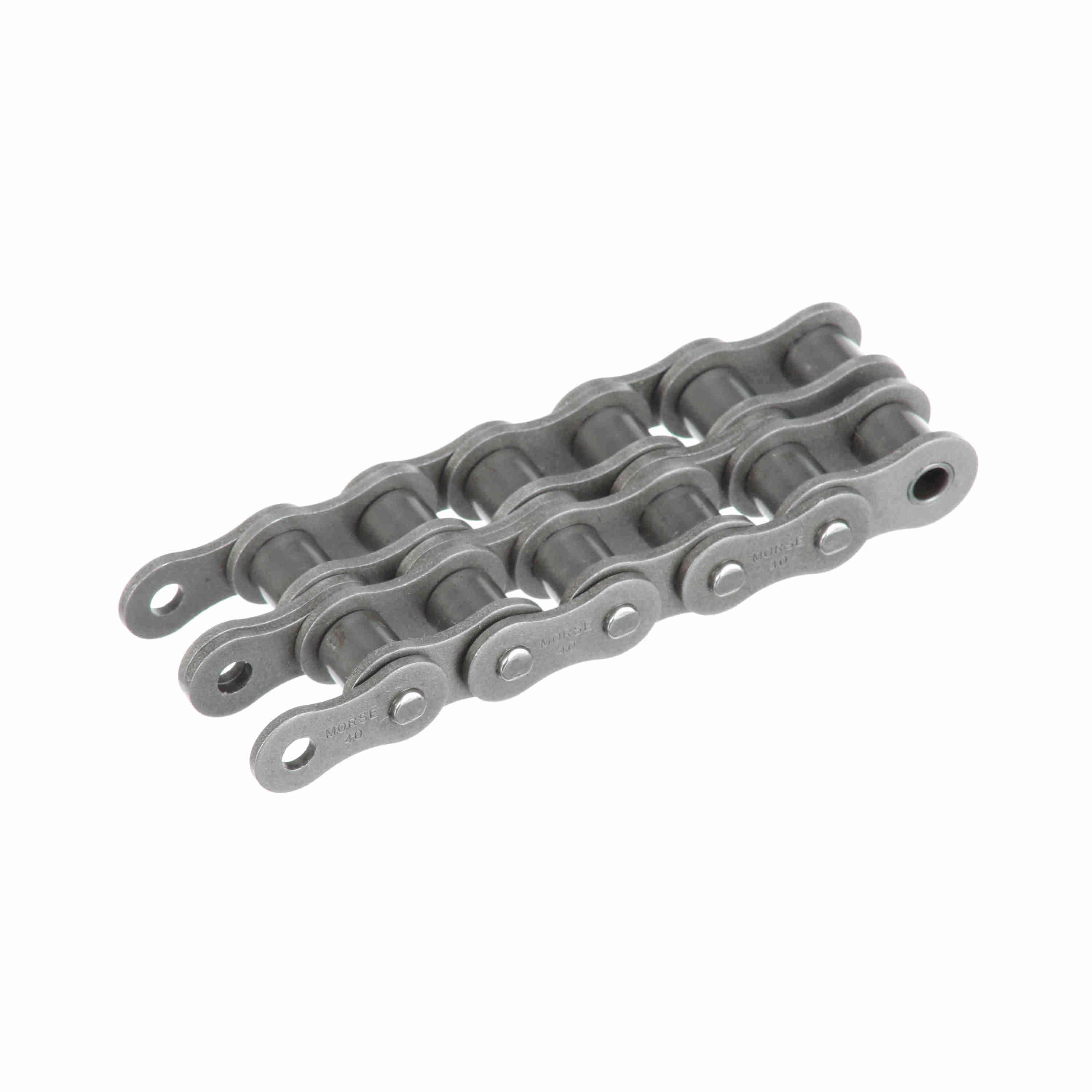

Morse® 330806 Standard Roller Chain, 100 ft OAL, 1/2 in Pitch, 0.312 in Dia x 5/16 in W Roller, Steel
Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications. Roller chain is available from 1/4 in pitch to 2-1/2 in pitch. Morse® offers standard roller chain in multiple widths to 8 strands up to 2 in pitch. Roller chain accessories such as connecting links are available in slip fit on the pins. This allows for easy assembly . They are also furnished with spring clip or cotter keys, depending on pitch. For heavy applications, we offer an optional connecting link. It has a removable plate with a light press fit on the pins. Regular offset links are used when a chain contains an odd number of links.
-
BrandMorse®
-
UPC662288467724
-
Manufacturer Part Number330806
-
CountryUSA
-
Pitch1/2 in
-
Plate Height0.466 in
-
Plate Thickness0.06 in
-
Tensile Strength7400 lb
-
MaterialSteel
-
TypeStandard
-
Roller Diameter0.312 in
-
Roller Width5/16 in
-
Number of Links10
-
Number of Strands2
-
Overall Length100 ft
-
Pin Diameter0.156 in
-
Pin Length1.215 in
- Available in package quantities or via quick-turnaround cut-to-length
-
Alternative Part Number40-2R 100FT
-
UNSPSC31151613
-
Package DescriptionEACH
-
Standards/ApprovalsANSI
-
Warranty1 Year
-
