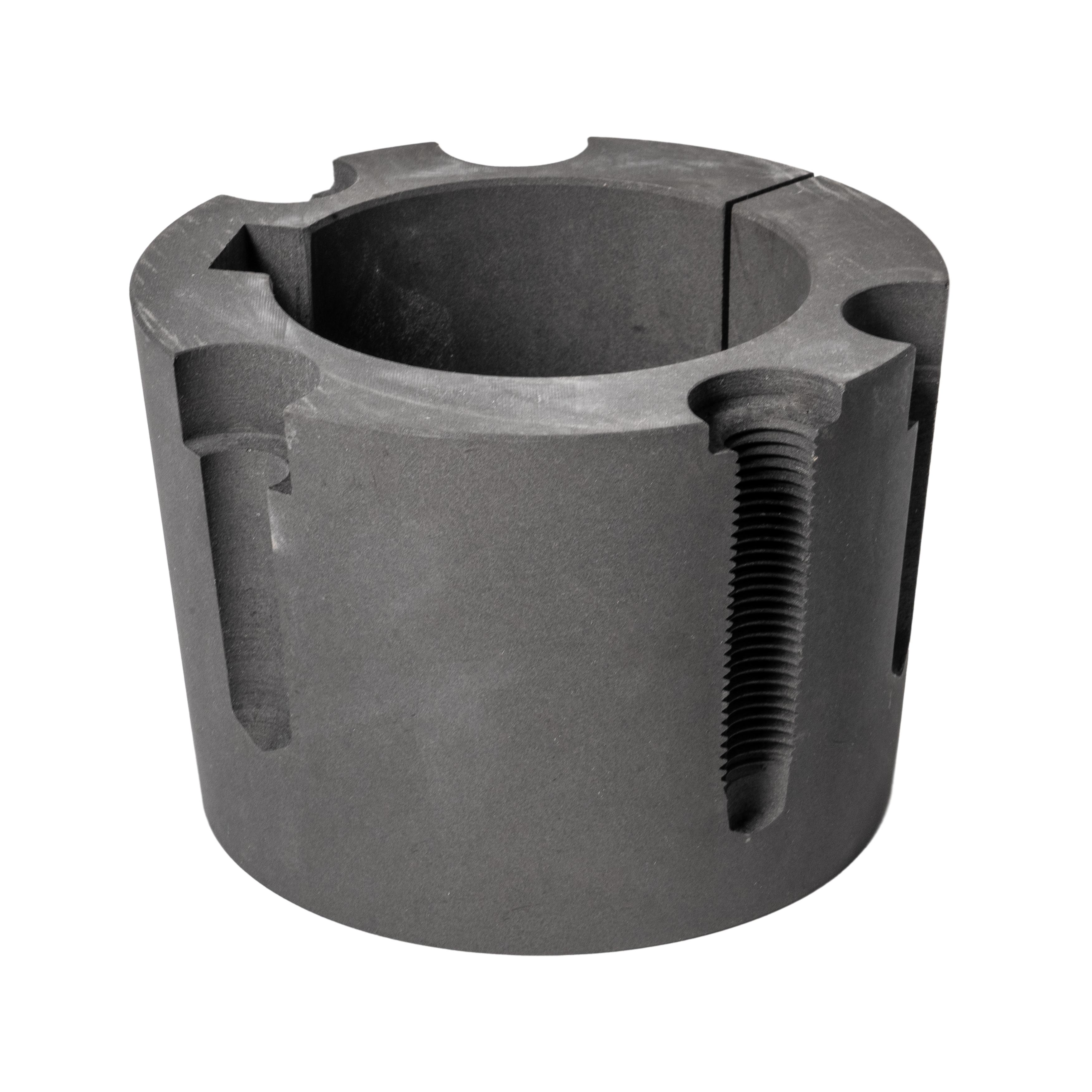

MasterDrive 3535-2.7/16 3535 3 Socket Tapered Bushing, 2.43 in Dia Bore, 4.83 in Dia Barrel, 5 in OAL, Cast Iron
TB (Taped Lock Style) Bushings are used on sheaves, sprockets and pulleys to provide increased clamping force over standard bore-to-size components. They are tapered in design without flanges and utilize screws to tighten on the shaft. Their compact design makes them convienent in many applications that are space-constrained. Each TB Bushing size is produced in a number of different finished bore options that include a keyway, as well as a minimum plain bore option. This allows users flexibility when using TB style sheaves, sprockets or pulleys in applications that may utilize various shaft sizes.
-
BrandMasterDrive
-
UPC806372034694
-
Manufacturer Part Number3535-2.7/16
-
CountryUSA
-
FinishBlack Phosphate
-
MaterialCast Iron
-
Torque Rating986 in-lb
-
Type3 Socket
-
Screw Size1/2-13 x 1-1/2 in
-
Series3535
-
Hub Diameter5 in
-
Barrel Diameter4.83 in
-
Keyway Size5/8 x 5/16 in
-
Bore Diameter2.43 in
-
Overall Length5 in
- Finished Bore with a Keyway
- Comes with 3 Socket Head Cap Screws
-
Alternative Part Number2105009794
-
Package DescriptionEACH
-
